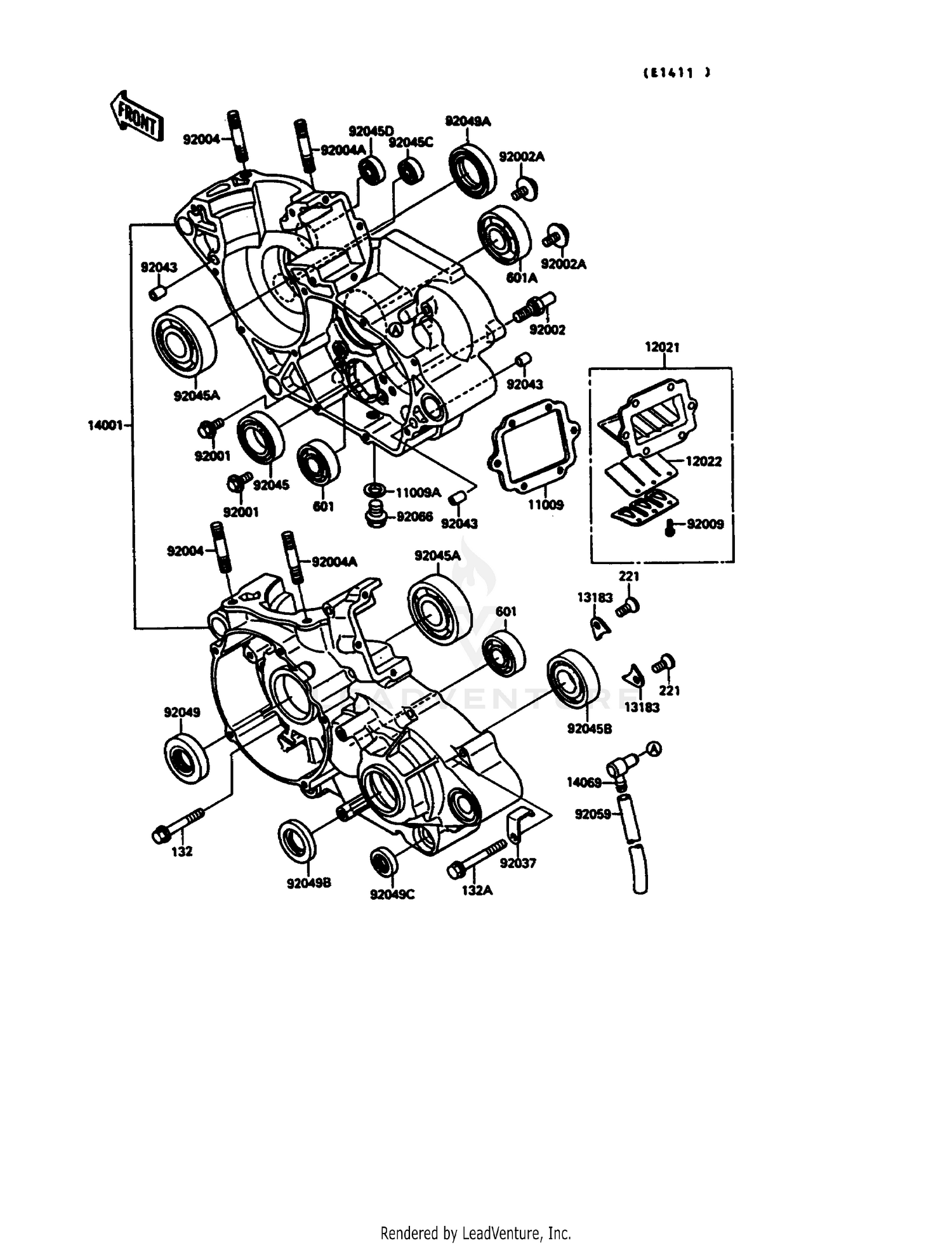

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,REED VALVE
11009-1263
Superseded by 11009-1941
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE-ASSY-REED
12021-1081
|
$237.04 | ||
|
Available to order. Add to View Price |
|||
|
#12022
VALVE-REED
12022-1065
Superseded by 12022-1071
|
$71.85 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE
13183-1182
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE
14001-5257
|
$713.10 | ||
|
Available to order. Add to View Price |
|||
|
#14069
BREATHER
14069-003
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,W/WASHER,6X14
92001-1829
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,RETURN SPRING
92002-1601
Superseded by 92150-1467
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,6X16
92002-1659
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92004
BOLT-STUD,8X25
92004-1008
Superseded by 172BA0825
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#92004A
STUD,8X28.5
92004-1142
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,REED VALVE
92009-1014
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HARNESS
92037-1318
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,#6905
92045-036
|
$26.89 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL
92045-1209
|
$36.02 | ||
|
Available to order. Add to View Price |
|||
|
#92045B
BEARING-BALL,SX04A29C
92045-1210
Superseded by 92045-1252
|
$17.16 | ||
|
Unavailable |
|||
|
#92045C
BEARING-BALL,626MC3
92045-1211
Superseded by 92045-1304
|
$11.46 | ||
|
Available to order. Add to View Price |
|||
|
#92045D
BEARING-BALL,608MC3
92045-1212
Superseded by 92045-1497
|
$11.93 | ||
|
Unavailable |
|||
|
#92049
SEAL-OIL
92049-1300
|
$16.48 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL
92049-1301
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,SC25376
92050-013
|
$13.72 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE
92059-1074
Superseded by 92059-1939
|
$17.97 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1241
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X40
132G0640
Superseded by 132BA0640
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X50
132G0650
Superseded by 132BA0650
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,6X12
221B0612
Superseded by 221AA0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6202C3
601B6202
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,#6303C3
601B6303
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
