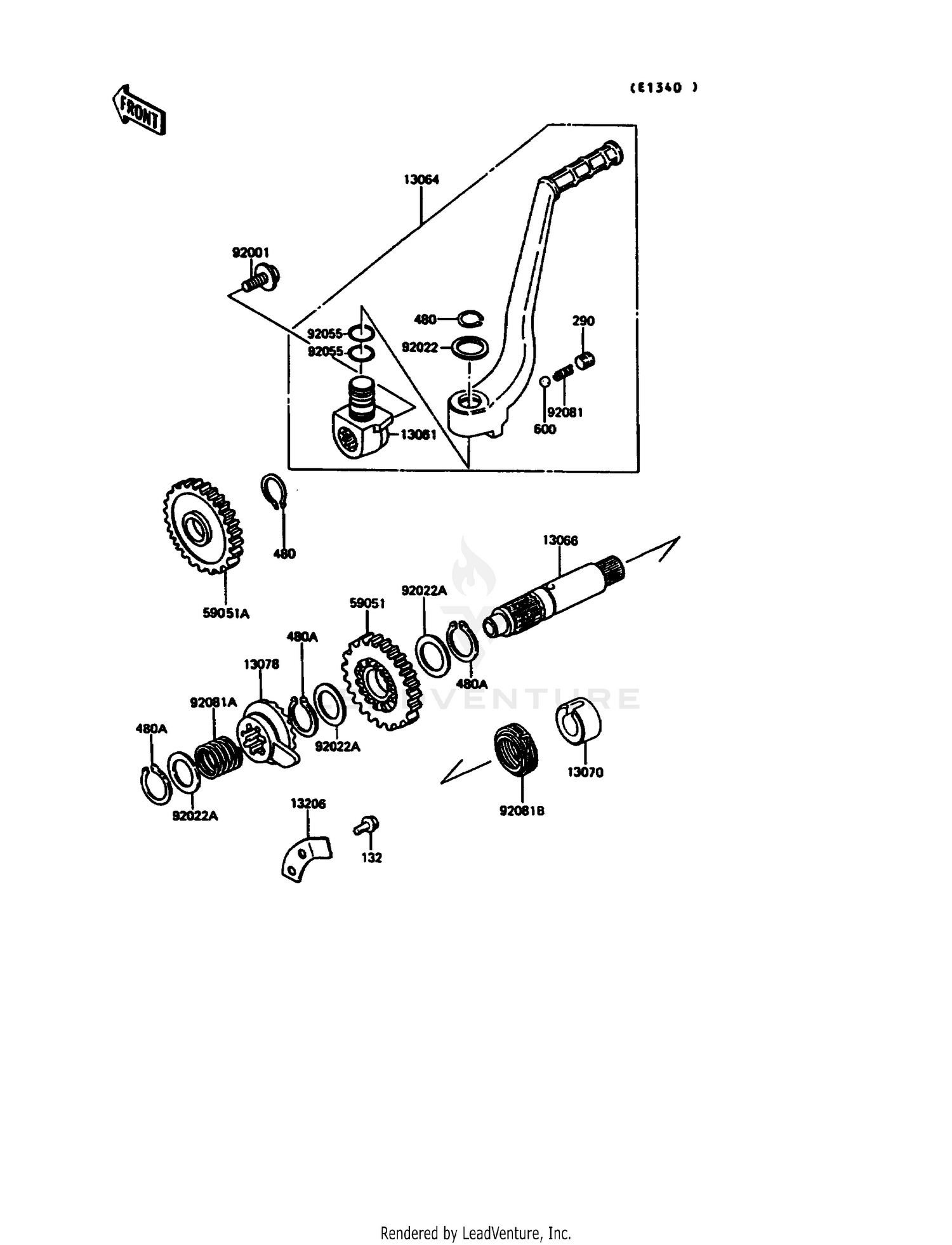

Kickstarter Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13061
BOSS,KICK PEDAL
13061-1282
|
$74.66 | ||
|
Available to order. Add to View Price |
|||
|
#13064
LEVER-ASSY-KICK,PEDAL
13064-1142
|
$153.19 | ||
|
Unavailable |
|||
|
#13066
SHAFT-KICK
13066-1019
Superseded by 13066-1101
|
$98.48 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,KICK SPRING
13070-1007
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#13078
RATCHET,KL250-D2
13078-1052
|
$64.01 | ||
|
Available to order. Add to View Price |
|||
|
#13206
GUIDE-KICK
13206-1001
Superseded by 13206-1061
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,KICKSTARTER
59051-1125
|
$82.44 | ||
|
Available to order. Add to View Price |
|||
|
#59051A
GEAR-SPUR,IDLE,31T
59051-1191
|
$73.45 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X10
92001-1034
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,16.3X24X1
92022-1205
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,16.8X22X0.5
92022-315
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING
92055-061
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,KICK PEDAL
92081-020
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,RATCHET
92081-122
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,KICKSTARTER
92081-1768
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X16
132G0616
Superseded by 132BA0616
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#290
SCREW,8X8
290Q0808
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,15MM
480J1500
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#480A
CIRCLIP-TYPE-C,16MM
480J1600
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
