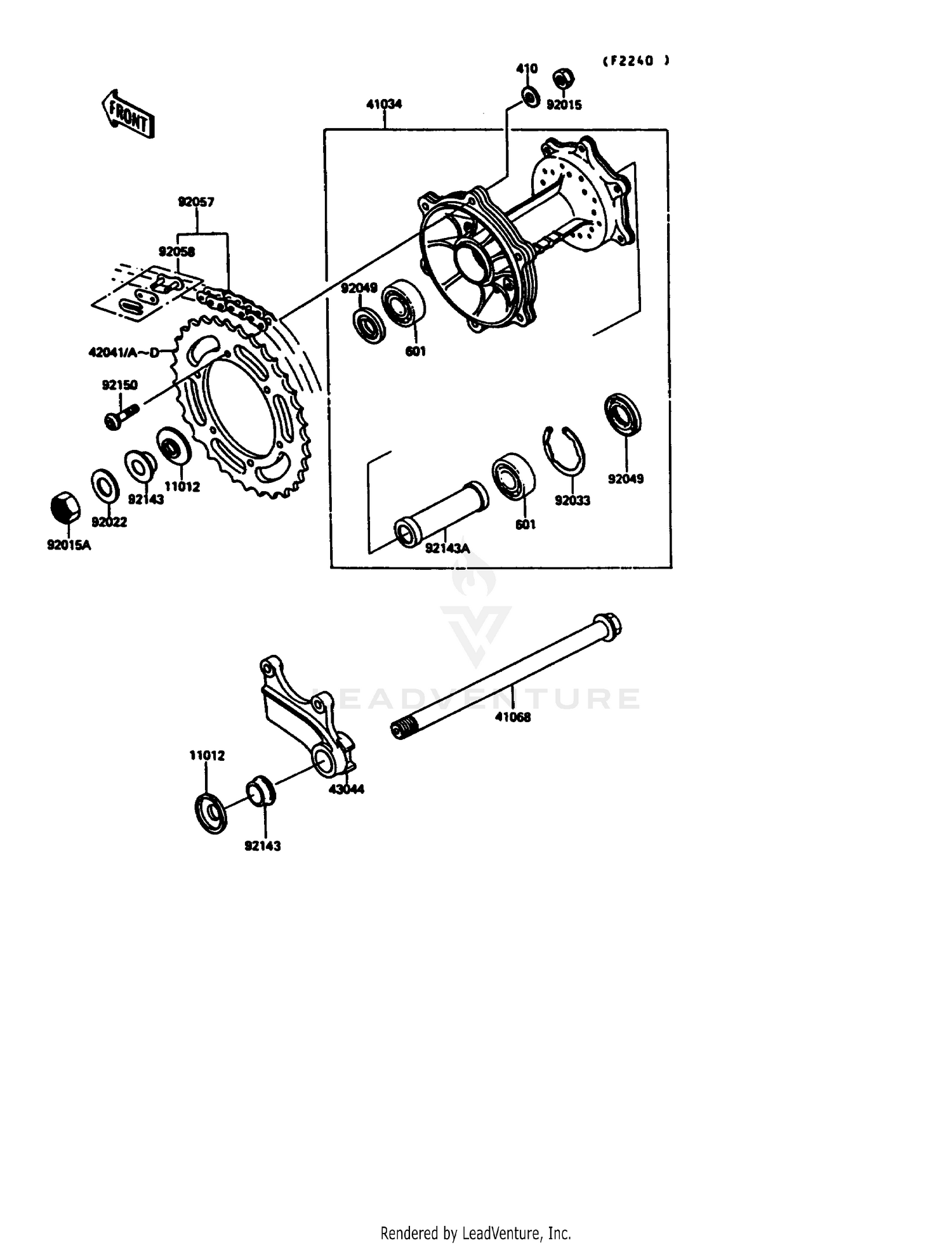

Rear Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,AXLE
11012-1581
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#41034
DRUM-ASSY,REAR BRAKE
41034-1184
|
$571.18 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1277
|
$87.45 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,45T
42041-1154
|
$136.49 | ||
|
Available to order. Add to View Price |
|||
|
#42041A
SPROCKET-HUB,49T,AL
42041-1256
|
$106.08 | ||
|
Available to order. Add to View Price |
|||
|
#42041B
SPROCKET-HUB,48T,AL
42041-1257
|
$132.62 | ||
|
Available to order. Add to View Price |
|||
|
#42041C
SPROCKET-HUB,47T,AL
42041-1258
|
$132.62 | ||
|
Available to order. Add to View Price |
|||
|
#42041D
SPROCKET-HUB,46T,AL
42041-1259
|
$130.17 | ||
|
Available to order. Add to View Price |
|||
|
#43044
HOLDER-COMP-CALIPER
43044-1082
Superseded by 43044-1114
|
$134.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,20MM
92015-1770
|
$27.16 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,20.1X34X2.0
92022-1994
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,42MM
92033-1041
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJNC2 25425
92049-1203
|
$17.27 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,DID520DS5
92057-1244
Superseded by 92057-1294
|
$216.02 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-1057
Superseded by 92058-1071
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,RR AXLE,L=22
92143-1259
|
$34.08 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,RR BRAKE DRUM,
92143-1260
|
$42.28 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X28
92150-1196
Superseded by 92150-1978
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6004UG
601B6004UG
|
$14.68 | ||
|
Unavailable |
|||
