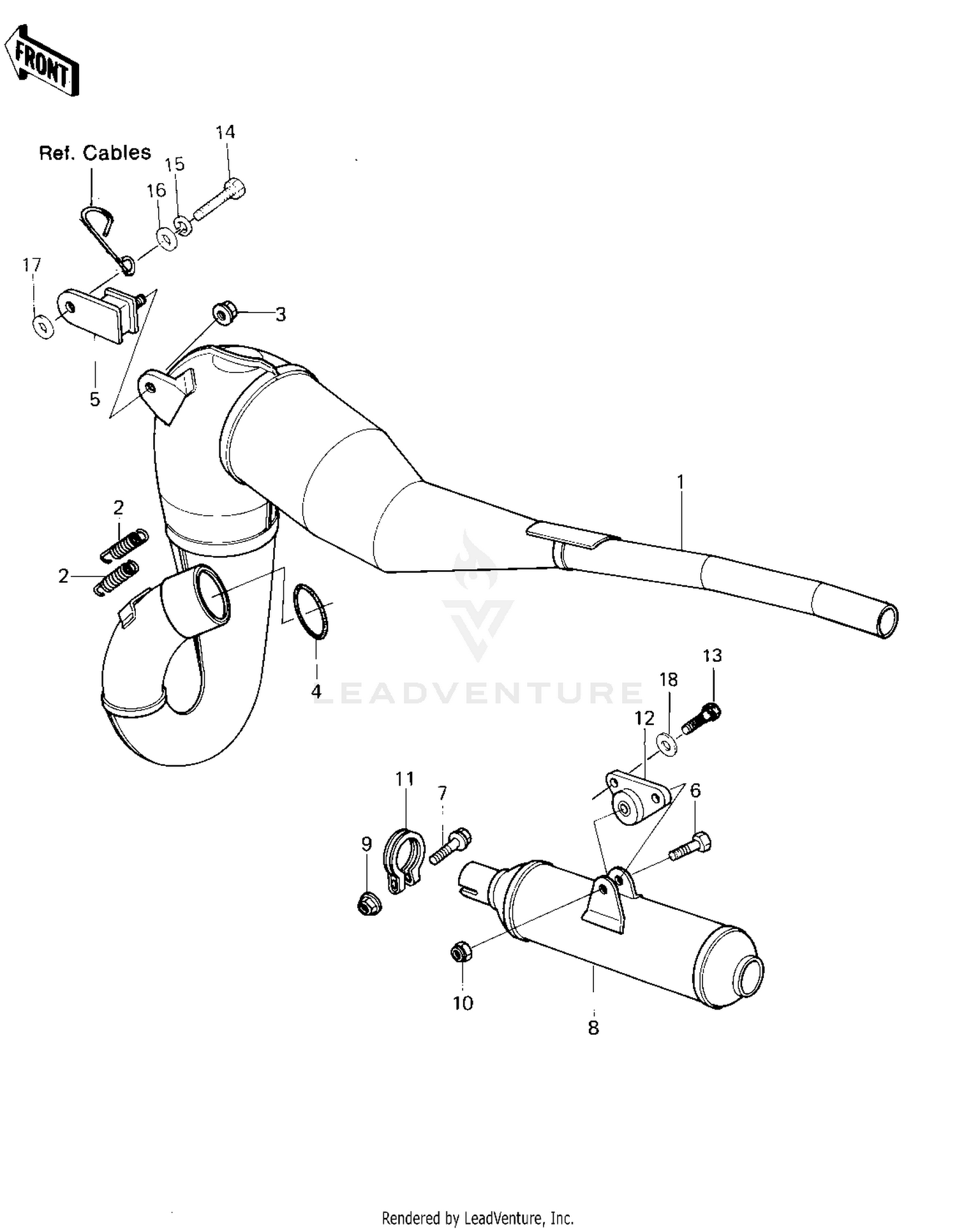

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY,MUFFLER,F.BLACK
18001-1103
|
$186.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING-CONNECTOR
18071-003
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
0 RING,55MM,MUFFLER
92055-1057
|
$17.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER,MUFFLER FITING
92075-1060
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT-FLANGED,6X25
130G0625
Superseded by 130BA0625
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
MUFFLER ASSY,F.BLACK
18001-1104
|
$100.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP,MUFFLER
92037-1280
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER RUBBER
92075-1046
|
$28.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-SMALL-UPSET,8X25
115G0825
Superseded by 115BA0825
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,8.5X20X1.6
92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
