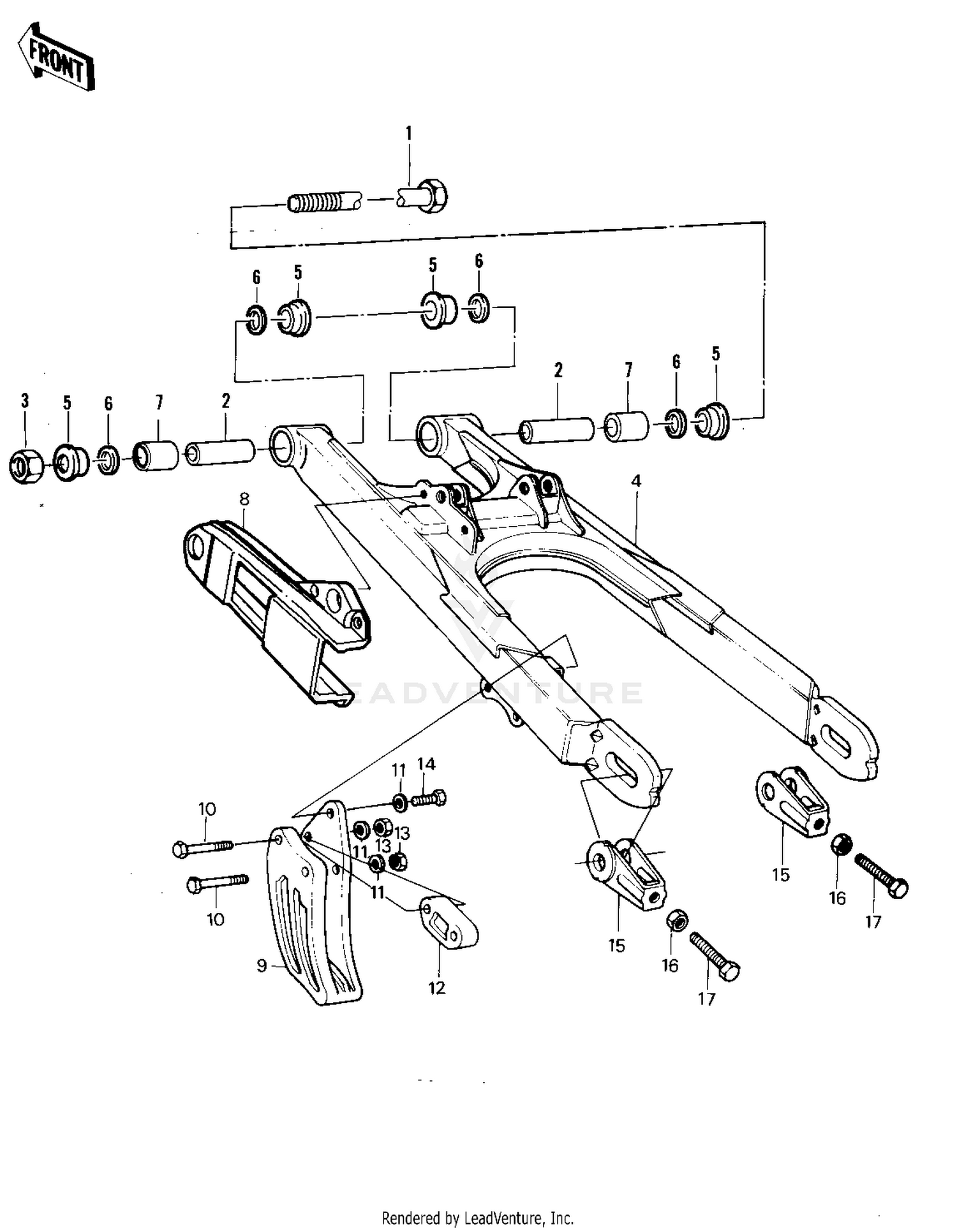

Swing Arm (kx420-a1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT-SWING ARM
33032-1020
|
$114.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
SLEEVE,SWING ARM
42036-1031
|
$58.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT-LOCK,14MM
92019-011
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM,SWING
33001-1043
|
$402.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP,SWING ARM
11012-1099
|
$28.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM,SWING ARM
92025-1116
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRG,NEEDLE,HMK2030
92028-1072
Superseded by 92046-1031
|
$27.95 | ||
|
Unavailable |
|||
|
#8
GUIDE,CHAIN,FRONT
12053-1046
|
$105.74 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUARD,CHAIN
55020-1038
|
$42.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-UPSET
112G0660
Superseded by 112BA0660
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE,CHAIN,REAR
12053-1039
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
ADJUSTER,CHAIN
33040-1012
|
$43.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT,8MM
312G0800
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,CHAIN ADJUSTER
92001-1027
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
