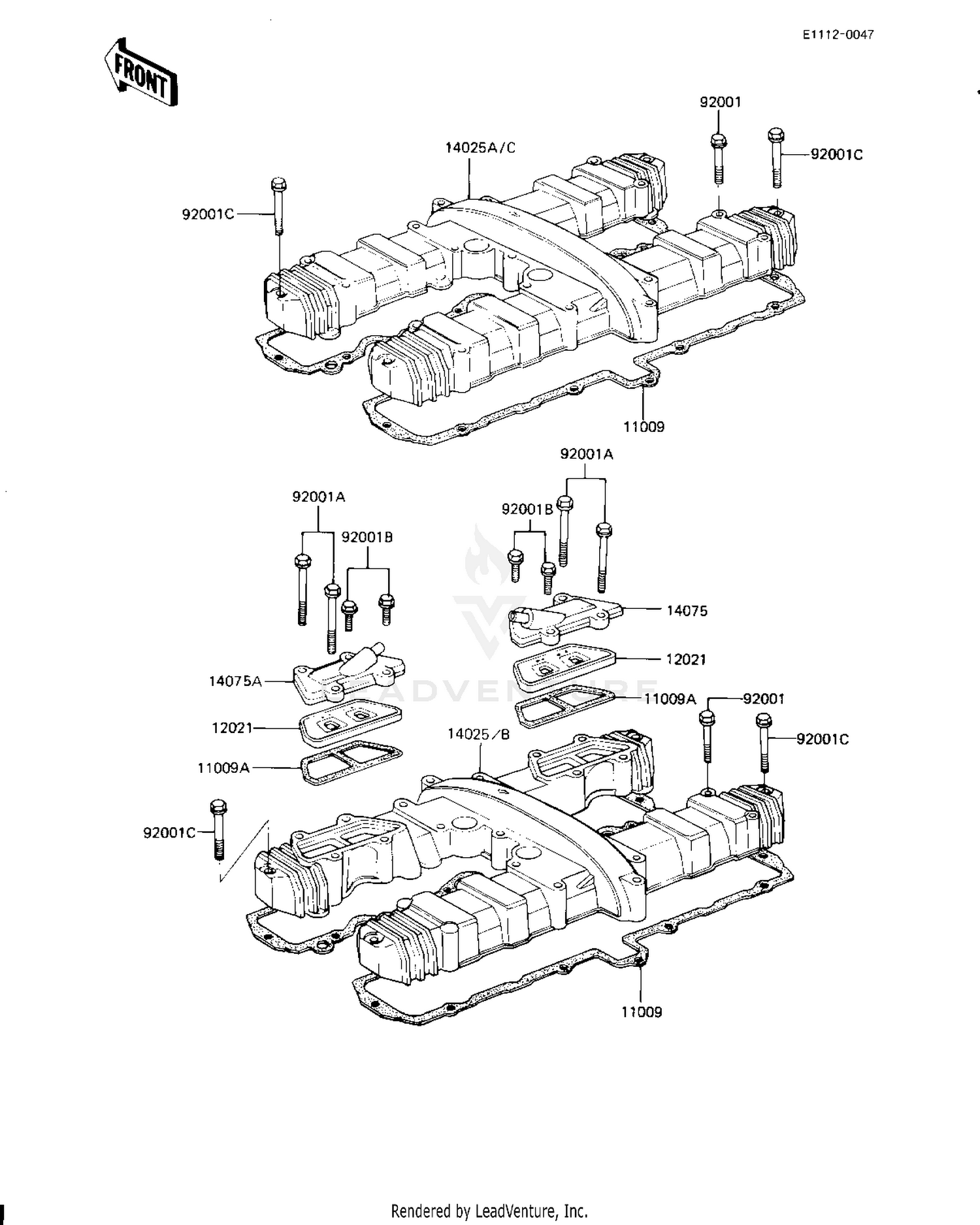

Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,CYLINDER HEAD
11009-1205
Superseded by 11061-1121
|
$70.42 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,REED VALVE
11060-1066
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE-ASSY-REED
12021-1008
|
$72.83 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,CYLINDER HEAD,B
14025-1463
|
$192.38 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,SEAT LOCK
14025-1246
|
$19.06 | ||
|
Available to order. Add to View Price |
|||
|
#14025B
COVER,CYLINDER HEAD,B
14025-1463
|
$192.38 | ||
|
Unavailable |
|||
|
#14025C
COVER,CYLINDER HEAD,B
14025-1464
|
$261.46 | ||
|
Available to order. Add to View Price |
|||
|
#14075
CAP-ASSY,REED VALVE,R
14075-5012
|
$50.68 | ||
|
Available to order. Add to View Price |
|||
|
#14075A
CAP-ASSY,REED VALVE,L
14075-5013
|
$108.00 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X45
92001-1350
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X45
92001-1350
|
$5.57 | ||
|
Unavailable |
|||
|
#92001A
BOLT,FLANGED,6X70
92001-1351
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,6X22
92001-1352
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,6X52
92001-1353
Superseded by 92002-1152
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
