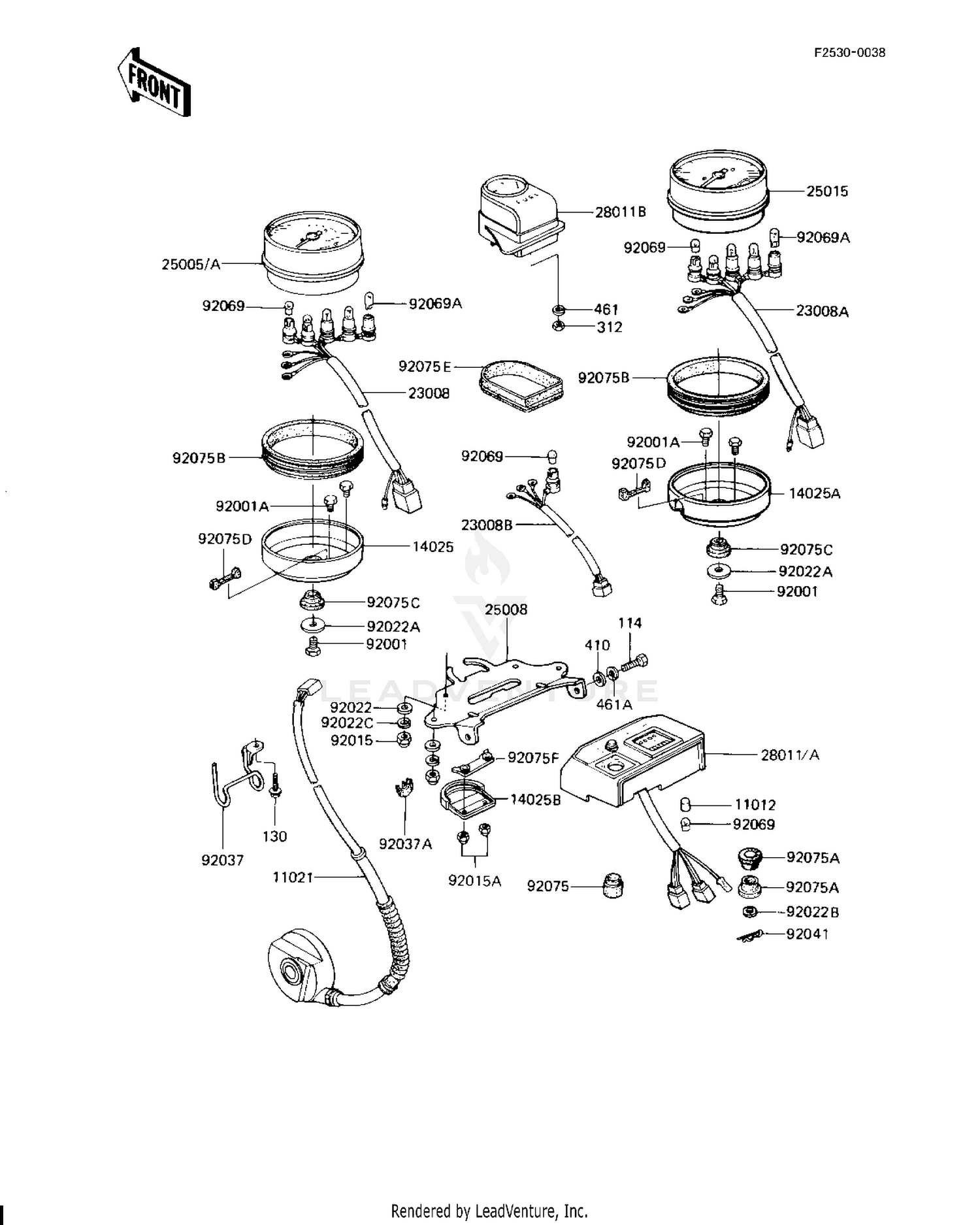

Meters (kz1000-j1/j2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,BULB,GREEN
11012-1172
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#11021
CASE-ASSY
11021-1011
|
$756.32 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,SPEEDOMETER
14025-1344
|
$88.67 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,TACHOMETER
14025-1345
|
$101.11 | ||
|
Available to order. Add to View Price |
|||
|
#14025B
COVER,FUEL METER
14025-1347
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,SPEEDOMET
23008-1090
|
$93.84 | ||
|
Available to order. Add to View Price |
|||
|
#23008A
SOCKET-ASSY,TACHOMETE
23008-1091
|
$86.33 | ||
|
Available to order. Add to View Price |
|||
|
#23008B
SOCKET-ASSY,FUEL METE
23008-1092
|
$43.43 | ||
|
Available to order. Add to View Price |
|||
|
#25005
SPEEDOMETER,MPH
25005-1106
|
$760.85 | ||
|
Available to order. Add to View Price |
|||
|
#25005A
SPEEDOMETER,KPH (Canada)
25005-1107
|
|||
|
Unavailable |
|||
|
#25008
BRACKET-METER
25008-1034
|
$188.35 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER
25015-1082
|
$497.91 | ||
|
Available to order. Add to View Price |
|||
|
#28011
1011UNAVAILABLE IN PRICE BOOK
28011
|
|||
|
Unavailable |
|||
|
#28011A
METER,TOTAL & TRIP (Canada)
28011-1012
|
|||
|
Unavailable |
|||
|
#28011B
METER,FUEL
28011-1025
|
$121.21 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X8
92001-1442
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,HEX HEAD,6X14
92003-204
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT-CAP,6MM
322C0600
Superseded by 322AB0600
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CAP,4MM
92015-1144
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER-PLAIN,6MM
411F0600
Superseded by 411AB0600
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.2X26X1
92022-1248
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,5.2X16X1.2
92022-263
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#92022C
UNAVAILABLE IN PRICE BOOK
92029-064
|
|||
|
Unavailable |
|||
|
#92037
CLAMP
92037-1230
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HOSE
92037-1249
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#92041
PIN,COTER
92041-006
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB 12V 1.5W
92069-017
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1286
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,TRIP METER
92075-1300
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,METER
92075-1315
|
$35.92 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER
92075-1316
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#92075D
DAMPER
92075-1317
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#92075E
DAMPER,FUEL METER
92075-1318
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#92075E
DAMPER
92075-1319
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT-SMALL-UPSET,8X18
115G0818
Superseded by 115BA0818
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X8
130B0608
Superseded by 130AA0608
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#312
NUT-HEX
312B0300A
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER SPRING
461B0800
|
$0.09 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER SPRING
461B0800
|
$0.09 | ||
|
Unavailable |
|||
