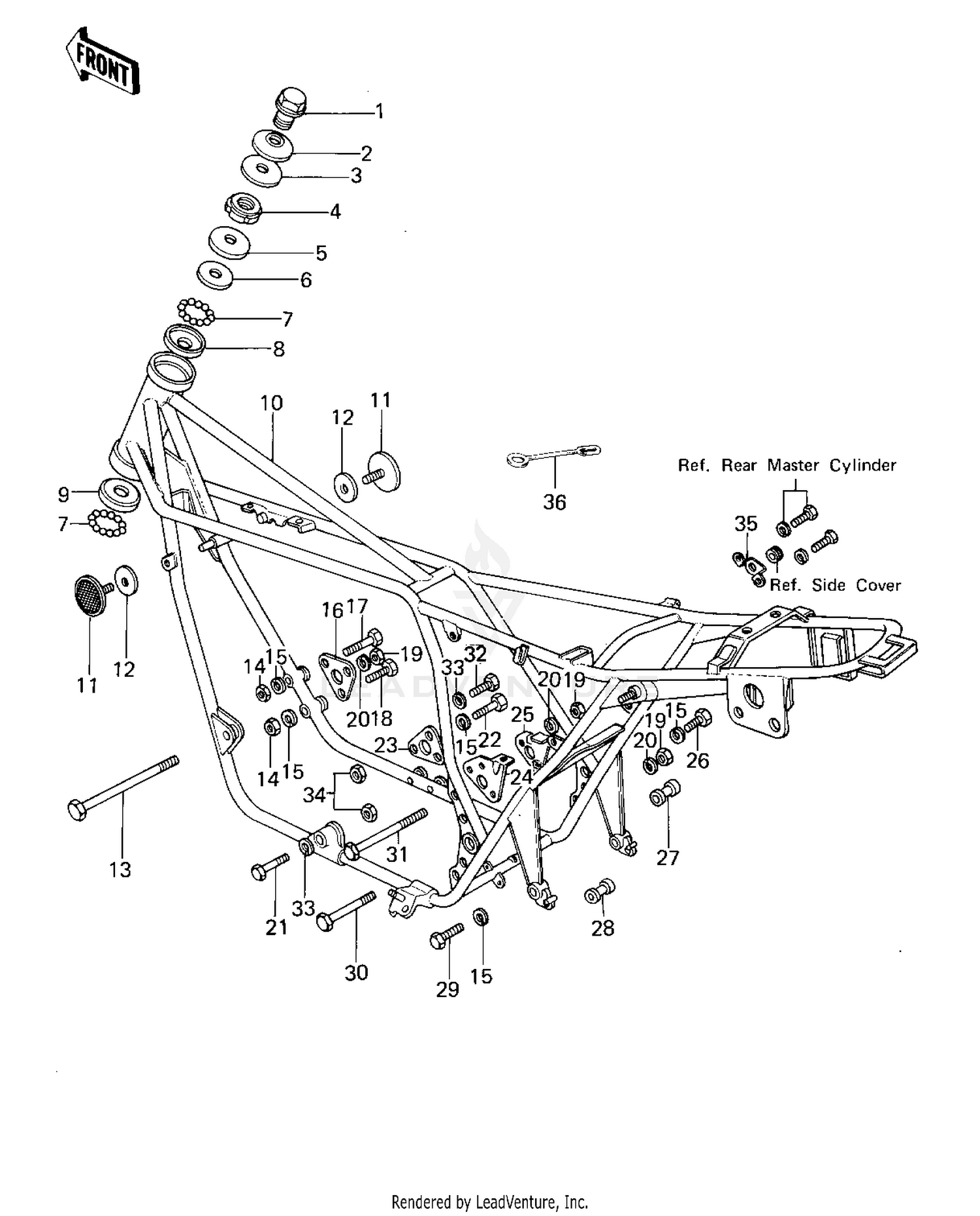

Frame/frame Fittings ('77-'78 A1/a2/a2a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT,STEERG STEM HEAD
92007-031
|
$28.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,WAVE
46100-003
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,30MM
92090-007
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP,STEERING STEM
46098-016
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
RACE,STEERING STEM BEARING
92047-011
Superseded by 92048-0032
|
$14.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
RACE,STEERING STEM BEARING
92048-006
Superseded by 92048-0036
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
RACE,STEERING STEM BEARING
92048-008
Superseded by 92048-0037
|
$15.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
FRAME
32002-1017
|
$1,273.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
FRAME
32002-1017
|
$1,273.66 | ||
|
Unavailable |
|||
|
#11
REFLECTOR-REFLEX,FR
28012-016
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER RUBBER,REFLECT
92094-011
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,ENGINE MOUNTING
92091-022
|
$34.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-HEX-SMALL,8MM
311B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE,ENG MOUNT FRONT
32030-025
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-8X63
92001-1397
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,HEX HEAD,8X59
110G0859
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,HEX HEAD,12X55
92001-1262
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-SMALL-UPSET,8X18
115G0818
Superseded by 115BA0818
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE,ENG MOUNT LOWER
32030-026
|
$18.04 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE,REAR ENGINE,L.H
32030-066
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#25
UNAVAILABLE IN PRICE BOOK
32030-06
|
|||
|
Unavailable |
|||
|
#26
BOLT,FLANGED,8X40
92001-1578
Superseded by 92002-1838
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR,ENG MOUNTING
92027-160
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR,ENG MOUNTING
92027-159
|
$28.16 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT,FLANGED,8X35
92001-1577
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT,ENGINE MOUNTING
92003-099
|
$33.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT,ENGINE MOUNTING
92091-023
|
$23.71 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT,HEX HEAD,12X70
92001-1265
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER-SPRING,12MM
461F1200
Superseded by 461DA1200
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT,12MM
92016-045
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET,SIDE COV,R.H
32049-101
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP,OVER FLOW PIPE
92037-134
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
