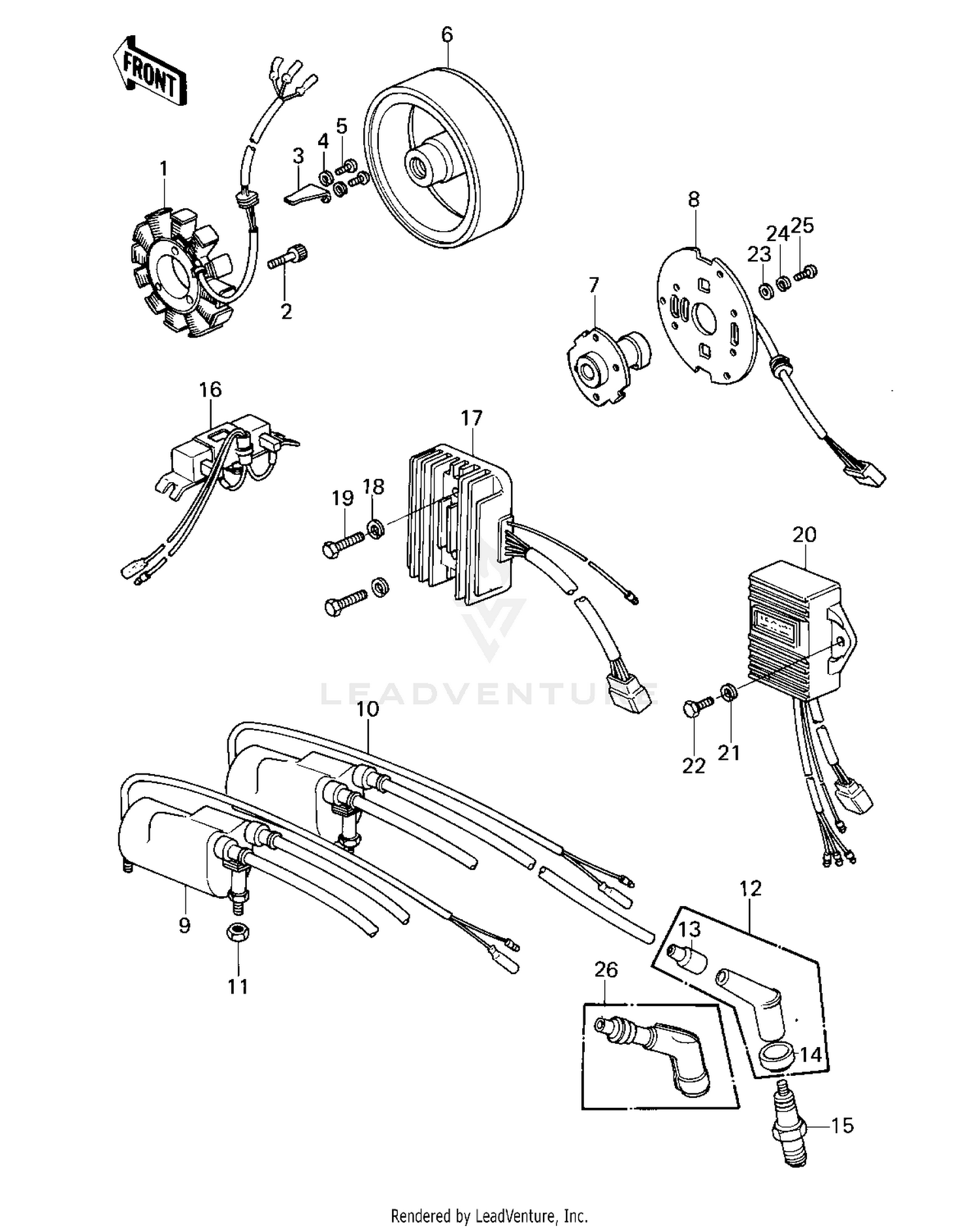

Ignition/generator/regulator ('79-'80 A3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSY
21003-1015
|
$736.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,SOCKET,5X25
120P0525A
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP,GENERATOR WIRE
92037-1122
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-PAN-CROS,5X12
220B0512
Superseded by 220AA0512
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROTOR
21007-1011
|
$995.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADVANCER ASSY,SPARK
21148-1009
|
$241.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADVANCER ASSY SPARK (Canada)
21148-1006
|
|||
|
Unavailable |
|||
|
#8
COIL-PULSING
59026-1012
Superseded by 59026-1133
|
$227.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
COIL,IGNITION,NO.1&4
21121-1013
|
$320.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
COIL,IGNITION,NO.2&3
21121-1014
|
$320.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT,LOCK 6MM
92017-014
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP SPARK PLUG
21160-1014
|
$49.35 | ||
|
Unavailable |
|||
|
#13
GROMMET,HIGH TENSION
21132-005
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET-PLUG CAP,A
21131-004
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG-SPARK-BR8ES-NGK
B8ES
Superseded by 92070-3501-A
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
RESISTOR ASSY
28018-1018
|
$114.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
REGULATOR,VOLTAGE
21066-1008
|
$489.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
IGNITER
21119-5001
|
$811.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
IGNITER
21119-5001
|
$811.47 | ||
|
Unavailable |
|||
|
#21
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#22
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-PLAIN-SMALL
410B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Unavailable |
|||
|
#25
SCREW-PAN-CROS,5X12
220B0512
Superseded by 220AA0512
|
$0.46 | ||
|
Unavailable |
|||
|
#26
CAP,SPARK PLUG
21160-005
|
$49.68 | ||
|
Available to order. Add to View Price |
|||
