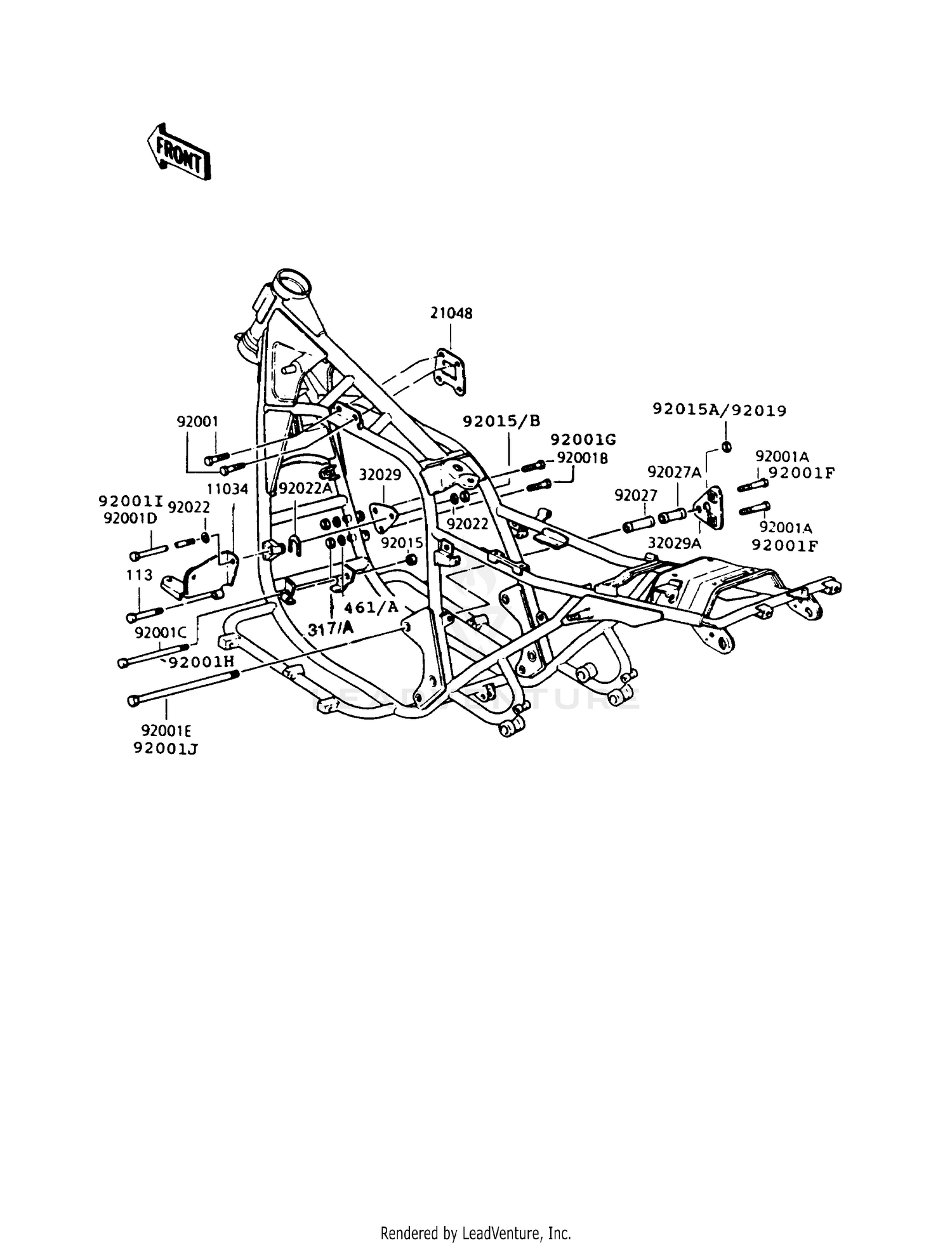

Frame Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11034
BRACKET,SIREN
11034-4218
|
$68.20 | ||
|
Available to order. Add to View Price |
|||
|
#21048
PLATE,IGNITION COIL
21048-1001
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#32029
BRACKET-ENGINE
32029-1142
|
$19.03 | ||
|
Available to order. Add to View Price |
|||
|
#32029A
BRACKET-ENGINE
32029-1143
|
$21.68 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X10
92001-137
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,8X40
92001-1578
Superseded by 92002-1838
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,8X65
92001-1582
Superseded by 92002-1349
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,FLANGED,10X155,B
92001-1585
Superseded by 92001-1620
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#92001D
BOLT,FLANGED,10X320,BLACK
92001-1591
Superseded by 92001-1624
|
$33.20 | ||
|
Available to order. Add to View Price |
|||
|
#92001E
BOLT,FLANGED,12X285
92001-1593
Superseded by 92001-1655
|
$38.11 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,LOCK,10MM
92015-1429
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#92019
NUT,LOCK,12MM
92019-009
Superseded by 92210-1373
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,PLAIN
92022-1022
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,U FORMED
92022-1259
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,13X25X54
92027-1310
|
$39.93 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,13X25X29.5
92027-1311
|
$28.28 | ||
|
Available to order. Add to View Price |
|||
|
#113
BOLT,FLANGED,10X70
113B1070
Superseded by 92001-1618
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
