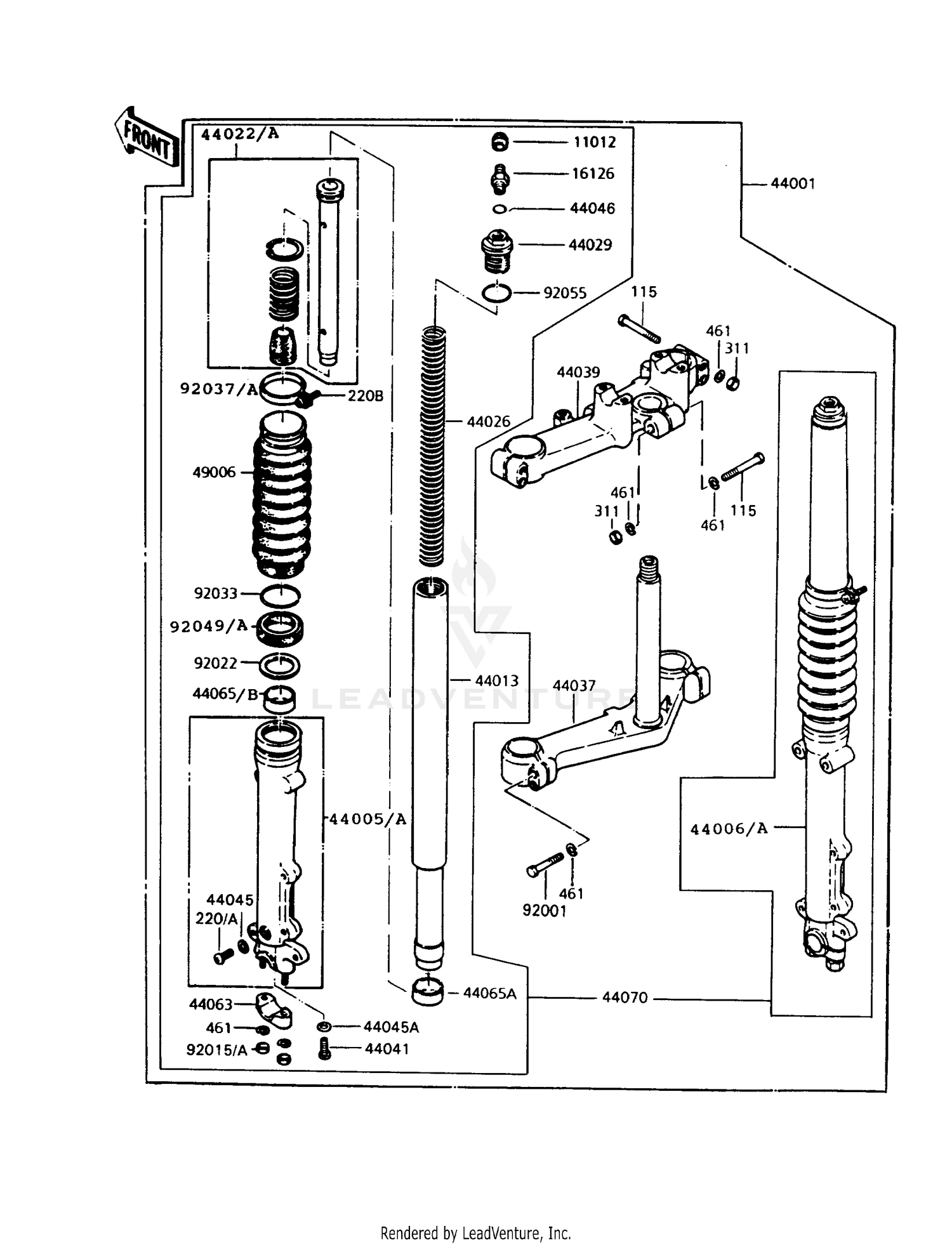

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,AIR VALVE
11012-1241
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE AIR
16126-1046
Superseded by 16126-1052
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1636
Superseded by 44001-1879
|
$2,727.56 | ||
|
Available to order. Add to View Price |
|||
|
#44005A
PIPE-LEFT FORK OUTER
44005-4002
Superseded by 44005-1332
|
$412.72 | ||
|
Available to order. Add to View Price |
|||
|
#44006A
PIPE-RIGHT FORK OUTER
44006-4002
Superseded by 44006-1328
|
$412.72 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-4002
|
$400.01 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1071
|
$125.91 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1312
|
$89.72 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-4001
|
$55.42 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-4004
|
$585.17 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-4007
|
$359.13 | ||
|
Available to order. Add to View Price |
|||
|
#44041
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#44045
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#44045A
GASKET,FORK CYLINDER
44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#44046
O RING,FORK TOP
44046-017
Superseded by 92055-1012
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#44063
HOLDER,FRONT AXLE
44063-011
|
$35.14 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,OU
44065-1012
Superseded by 44065-1091
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING,FORK PIPE
44065-1057
Superseded by 92028-1126
|
$47.35 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,FORK,BLACK
49006-1079
|
$81.31 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,8X38
92001-1700
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK OUTER PIPE
92022-1262
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,FORK
92033-1047
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP, BOOT, BLACK
92037-1321
|
$9.19 | ||
|
Unavailable |
|||
|
#92049
SEAL-OIL,FORK
92049-1102
Superseded by 92049-1178
|
$28.37 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING,6MM
92055-1100
Superseded by 670B1506
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#115
BOLT-SMALL-UPSET,8X55
115G0855
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220B
SCREW-PAN-CROS,4X20
220B0420
Superseded by 220AA0420
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT,8MM
311G0800
Superseded by 311BA0800
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
