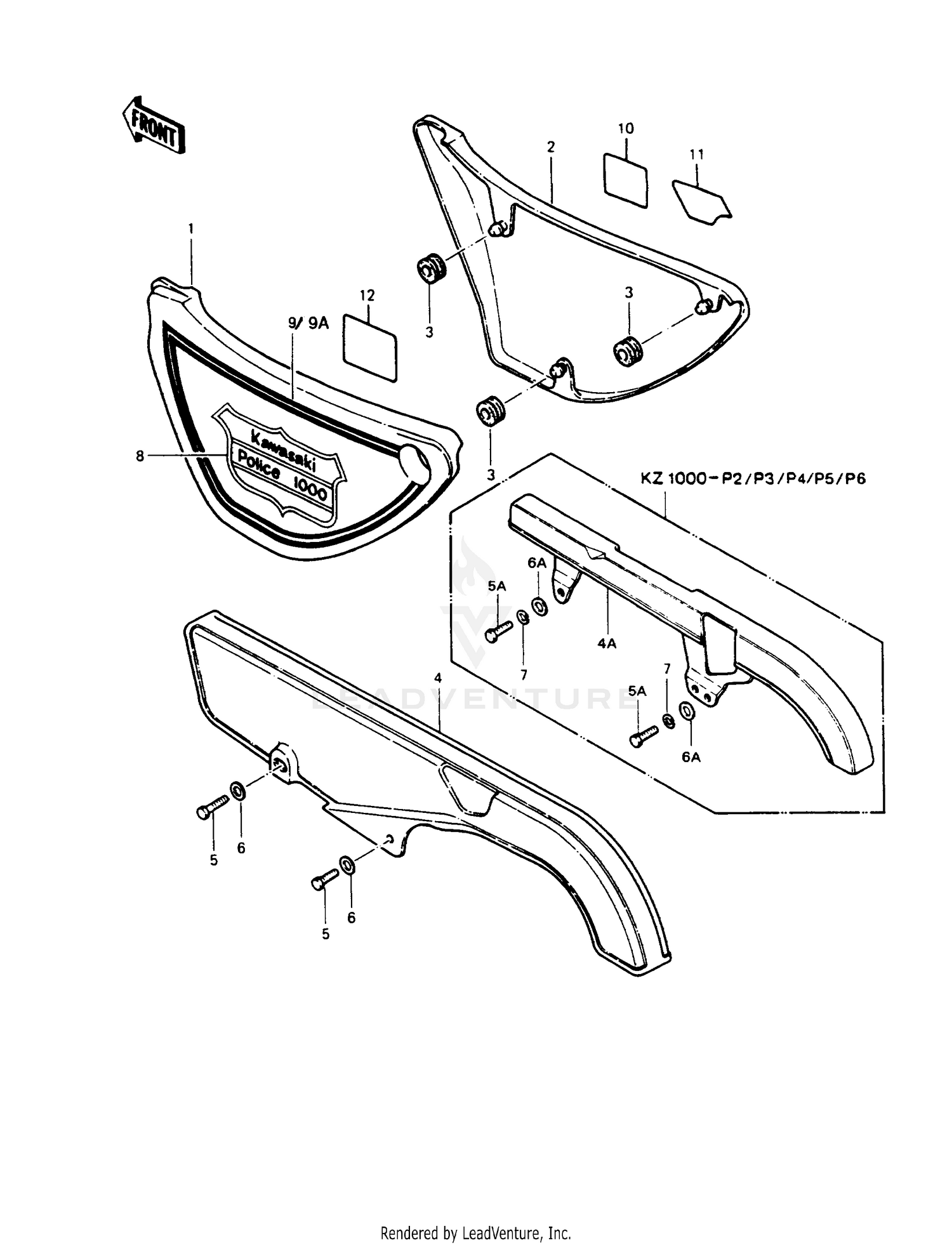

Side Cover/chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
LABEL,BATTERY VENT
56031-1159
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
LABEL,OIL&OIL FILTER
56031-1162
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
LABEL-MANUAL,DAILY SA
56031-1188
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER-SIDE,WHITE-LH
36001-1110-8C
|
$128.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER-SIDE,WHITE-RH
36001-1111-8C
|
$126.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
92071-056
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#4A
CASE-CHAIN
36014-1034
|
$123.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
CASE-CHAIN
36014-1030
Superseded by 36014-1061
|
$95.59 | ||
|
Available to order. Add to View Price |
|||
|
#5A
BOLT-UPSET,6X16
110B0616
Superseded by 112BA0616
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,HEAX HEAD,6X14
92001-115
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#6A
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,8.5X20X1.6
92022-195
Superseded by 92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM
56014-4020
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#9A
PATTERN,SIDE COVER
56027-4076
|
$19.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
PATTERN,SIDE COVER
56027-4075
|
$26.05 | ||
|
Available to order. Add to View Price |
|||
