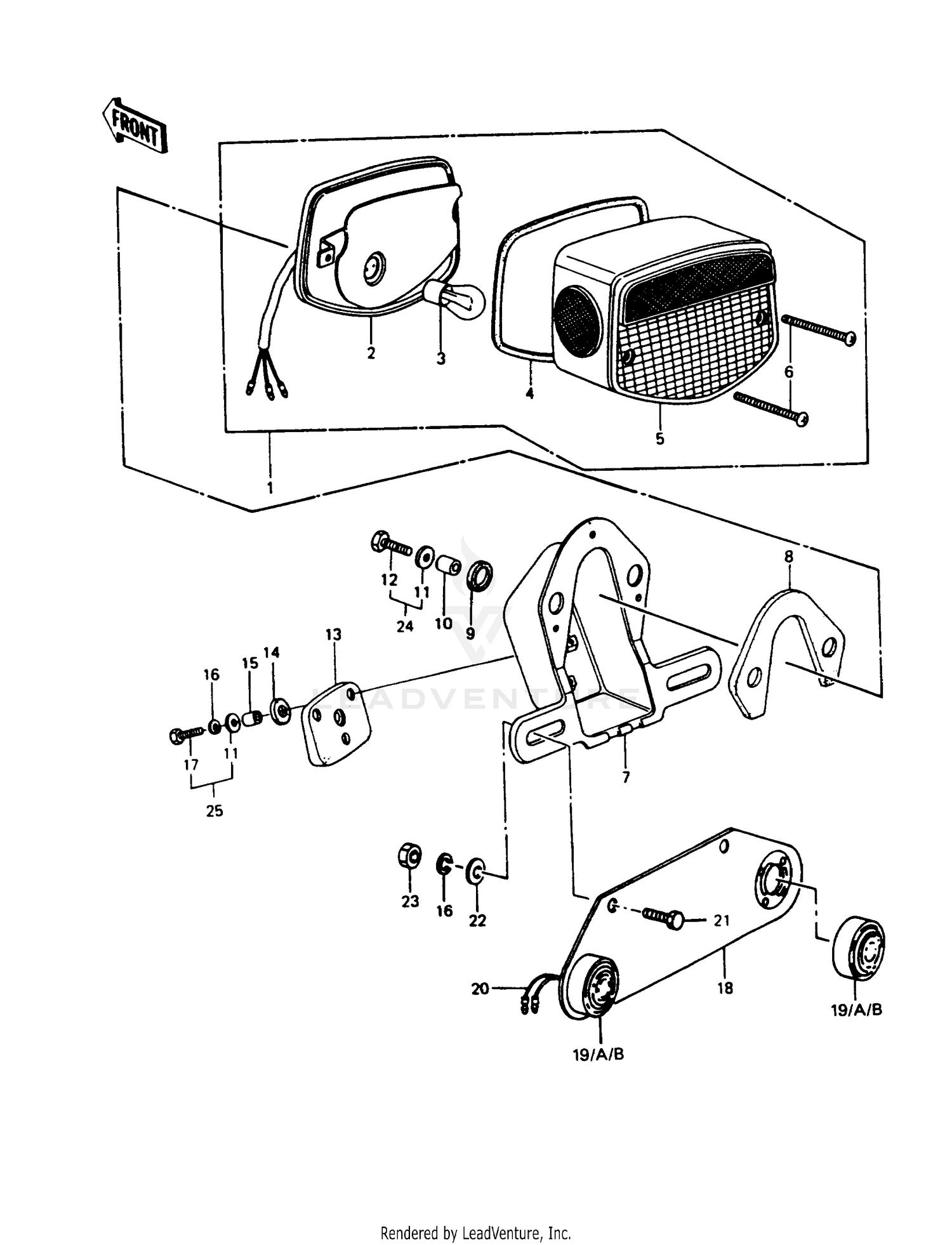

Tail Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
COLLAR,6.8X10X8.5
92027-129
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-UPSET
110B0622
Superseded by 112BA0622
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER RUBBER,RR FEND
35039-004
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER RUBBER,RR FEND
92075-121
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR,6.8X10X14.5
92027-156
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-UPSET,6X25
112B0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET,LICENSE PLATE
23062-1002
|
$59.60 | ||
|
Available to order. Add to View Price |
|||
|
#19A
TAIL LIGHT,ID, RED
23065-004
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#19B
TAIL LIGHT,ID, AMBER
23065-005
|
$22.38 | ||
|
Available to order. Add to View Price |
|||
|
#19
TAIL LIGHT,ID, BLUE
23065-003
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRE,CONNECT ID LITE
26001-4001
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-UPSET
112B0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,7X16X1.2
92022-024
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,W/P,6X18
92132-004
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,6X25
92001-1767
Superseded by 92002-1137
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#1
LAMP-TAIL
23025-064
Superseded by 23025-1306
|
$169.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE,TAIL LIGHT
23027-041
|
$122.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB,12V 27/8W
92069-059
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,TAIL LENS
23028-021
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
LENS,TAIL LAMP
23026-034
|
$74.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW-PAN-CROS
220B0460
Superseded by 220AA0460
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET,LICENCE PLATE
23036-052
|
$114.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER RUBBER
23066-023
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER RUBBER
23066-020
|
$14.43 | ||
|
Available to order. Add to View Price |
|||
