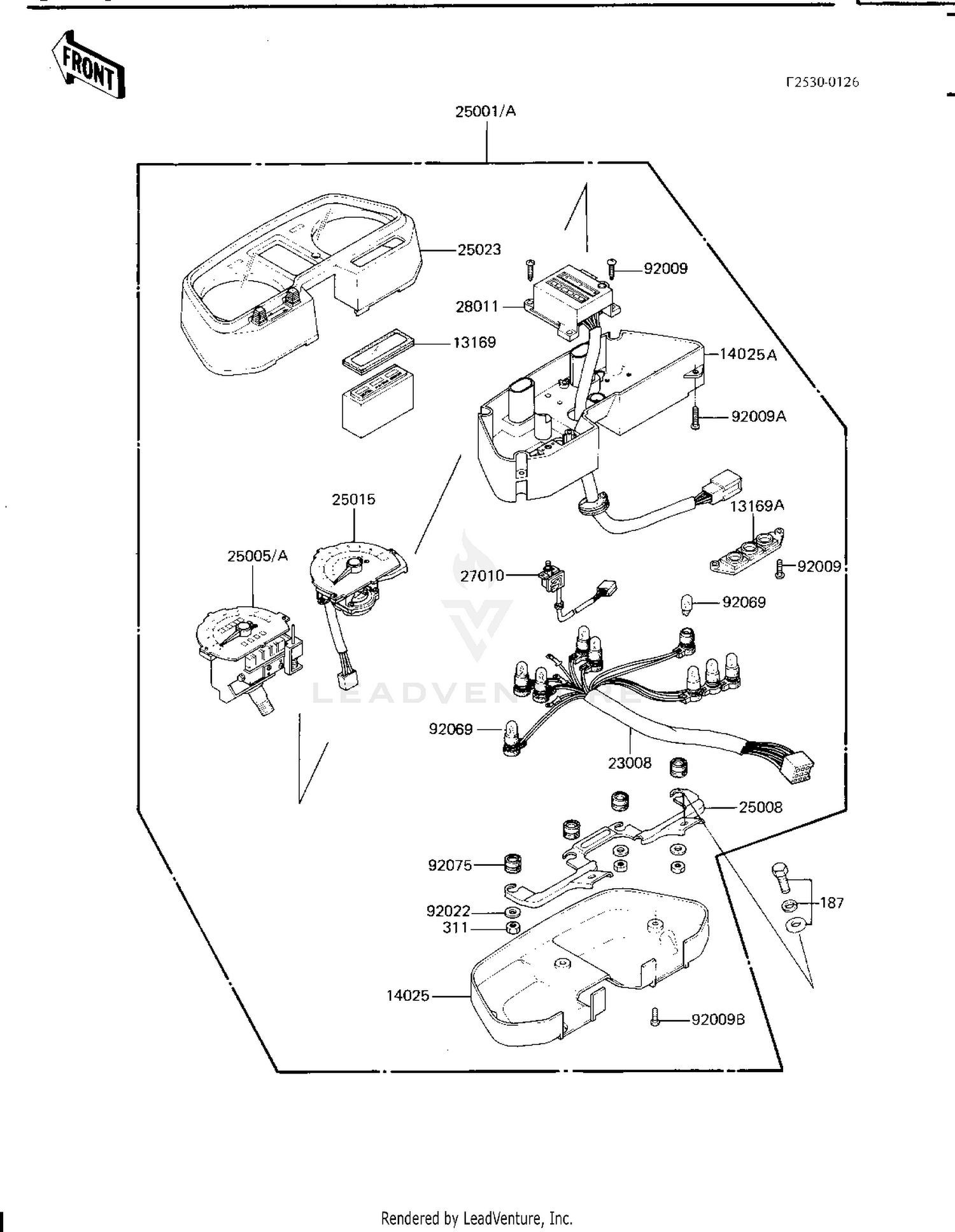

Meters (kz1100-b2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13169
PLATE,PILOT BOX
13169-1508
|
$16.15 | ||
|
Available to order. Add to View Price |
|||
|
#13169A
PLATE,BULB SOCKET
13169-1556
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,METER,LWR
14025-1473
|
$37.79 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,METER UNIT
14025-1951
|
$126.12 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,METER
23008-1149
|
$81.42 | ||
|
Available to order. Add to View Price |
|||
|
#25001
METER-ASSY,MPH
25001-1315
|
$793.45 | ||
|
Available to order. Add to View Price |
|||
|
#25001A
METER-ASSY,KPH (Canada)
25001-1316
|
|||
|
Unavailable |
|||
|
#25005
SPEEDOMETER,MPH
25005-1175
|
$470.13 | ||
|
Available to order. Add to View Price |
|||
|
#25005A
SPEEDOMETER,KPH (Canada)
25005-1180
|
|||
|
Unavailable |
|||
|
#25008
BRACKET-METER
25008-1057
|
$38.20 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER,X1000R/MIN
25015-1232
|
$265.22 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER-METER CASE,UPP
25023-1124
|
$144.59 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,TACHO/VOLT
27010-1062
|
$66.06 | ||
|
Available to order. Add to View Price |
|||
|
#28011
METER,FUEL & WARNING
28011-1029
|
$500.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X14
92009-1140
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,4X20
92009-1141
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,TAPPING,4X12
92009-1142
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X16X1.2
92022-263
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,METER BRACKET
92075-1385
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#187
BOLT-UPSET-WSP
187B0614
Superseded by 187AA0614
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
