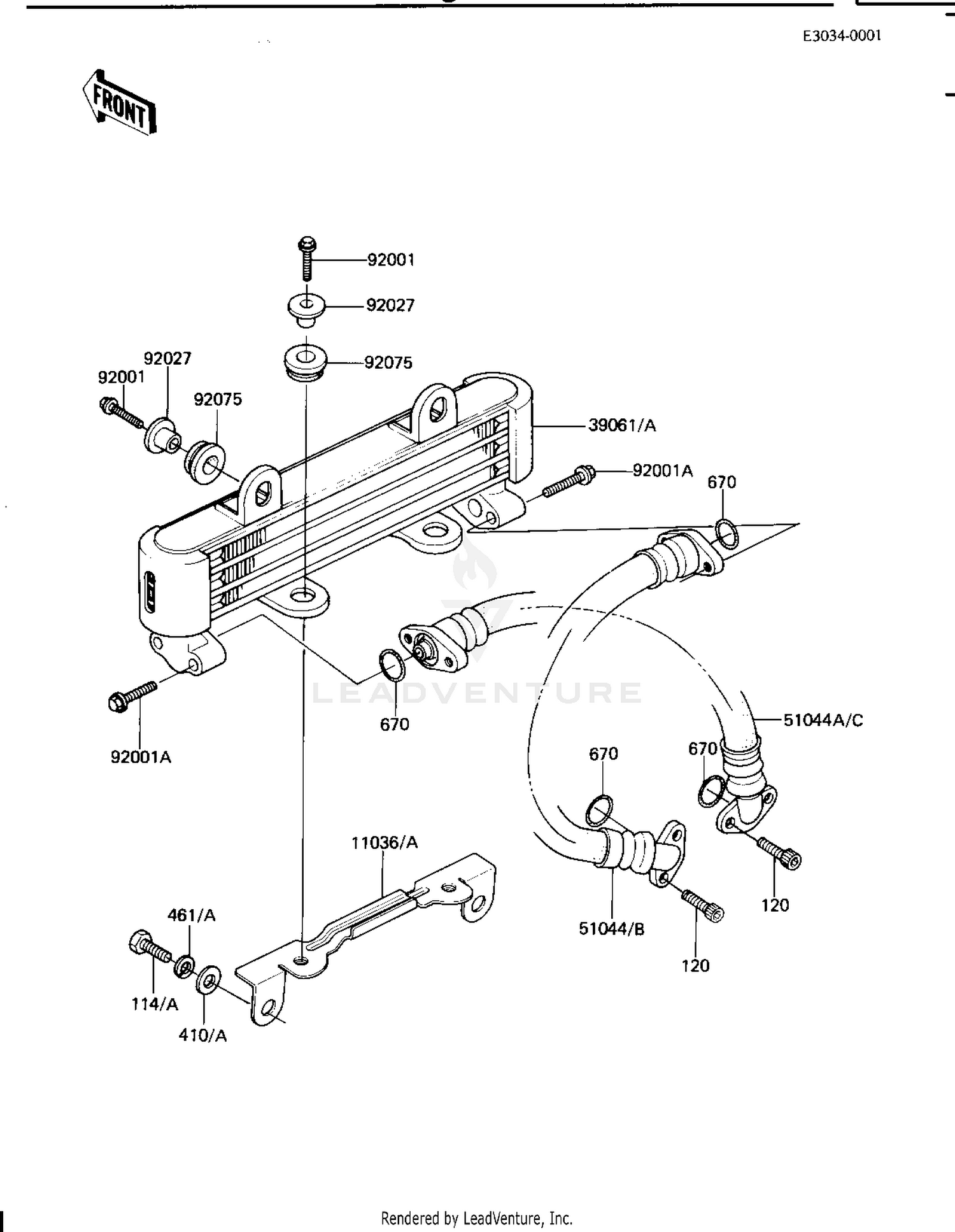

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11036
BRACKET-A,OIL COOLER
11036-1160
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#11036A
BRACKET-A,OIL COOLER
11036-1508
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#39061
EXCHANGER-ASSY-HEAT
39061-1006-10
|
$467.29 | ||
|
Available to order. Add to View Price |
|||
|
#39061A
EXCHANGER-ASSY-HEAT
39061-1006-10
|
$467.29 | ||
|
Unavailable |
|||
|
#51044
TUBE-ASSY,OIL COOLER
51044-1030
|
$256.85 | ||
|
Available to order. Add to View Price |
|||
|
#51044A
TUBE-ASSY,OIL COOLER
51044-1031
|
$300.48 | ||
|
Available to order. Add to View Price |
|||
|
#51044B
TUBE-ASSY,OIL COOLER
51044-1030
|
$256.85 | ||
|
Unavailable |
|||
|
#51044C
TUBE-ASSY,OIL COOLER
51044-1031
|
$300.48 | ||
|
Unavailable |
|||
|
#92001
BOLT-FLANGED,6X20
130J0620
Superseded by 130BB0620
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,6X25,BLK
92001-1467
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-277
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#114A
BOLT-SMALL,8X16,BLACK
115C0816
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X16
120S0616
Superseded by 120CB0616
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#410A
WASHER,PLAIN,8MM
92022-1554
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,8MM,BLA
461K0800
Superseded by 461DB0800
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,14MM
670D2014
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
