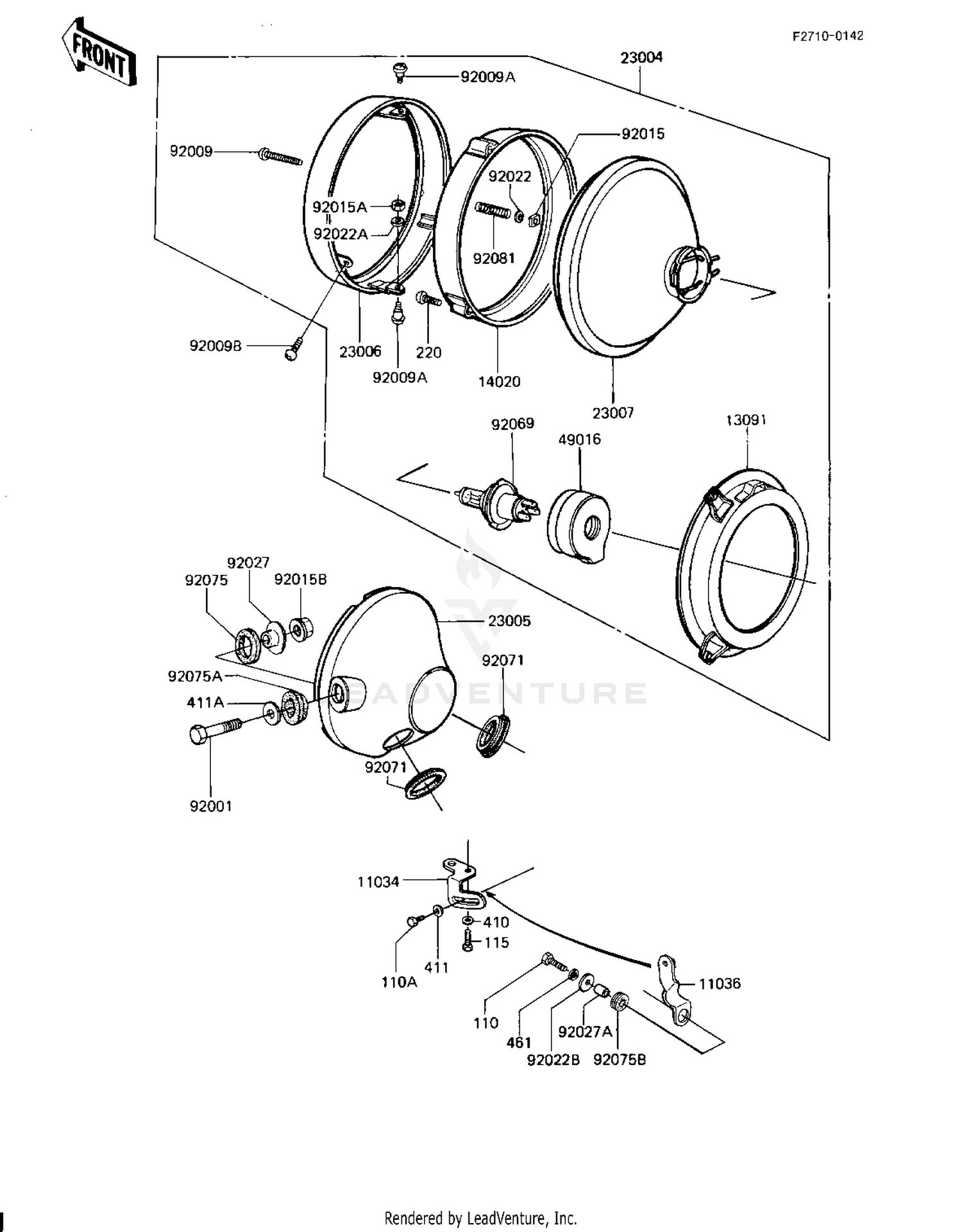

Headlight (kz1100-d1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11034
BRACKET,
11034-1792
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#11036
BRACKET-A,HEAD LAMP,B
11036-1468
|
$8.14 | ||
|
Available to order. Add to View Price |
|||
|
#13091
RING,HEAD LAMP MOUNT
23074-001
|
$62.20 | ||
|
Available to order. Add to View Price |
|||
|
#14020
RING,HEAD LAMP MOUNT
23072-001
|
$42.47 | ||
|
Available to order. Add to View Price |
|||
|
#23004
LAMP-HEAD
23004-1066
|
$381.06 | ||
|
Available to order. Add to View Price |
|||
|
#23005
BODY-HEAD LAMP,EBONY
23005-1015-8G
|
$229.75 | ||
|
Available to order. Add to View Price |
|||
|
#23006
RIM-LAMP,BLACK
23006-1015
|
$65.65 | ||
|
Available to order. Add to View Price |
|||
|
#23007
LENS UNIT,HEAD LAMP
23007-1009
|
$153.45 | ||
|
Available to order. Add to View Price |
|||
|
#49016
DUST COVER
49016-1016
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,10MM
92007-024
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW FORCUS ADJUST
23019-021
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW-PAN HEAD,5X12
23019-023
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,SPECIAL,5X14,BL
92009-1149
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,HEAD LAMP RIM FIT
23020-023
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,FLANGED,10MM
92015-1428
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
23021-004
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER-PLAIN,5MM
23021-012
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,HEAD LIGHT
23052-011
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,6.8X10X12
92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 60/55W,H4
92069-1002
Superseded by 92069-0050
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-1008
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER RUBBER
23066-021
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER RUBBER
23066-022
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING FOCUS ADJUST
23014-005
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT, 6X14, BLACK
112C0614
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#115
BOLT-SMALL,8X16,BLACK
115C0816
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW PAN HEAD 3X12
220B0312
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER,PLAIN,8MM
92022-1554
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411F0600
Superseded by 411AB0600
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#411A
WASHER
411D1000
Superseded by 92200-1313
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
