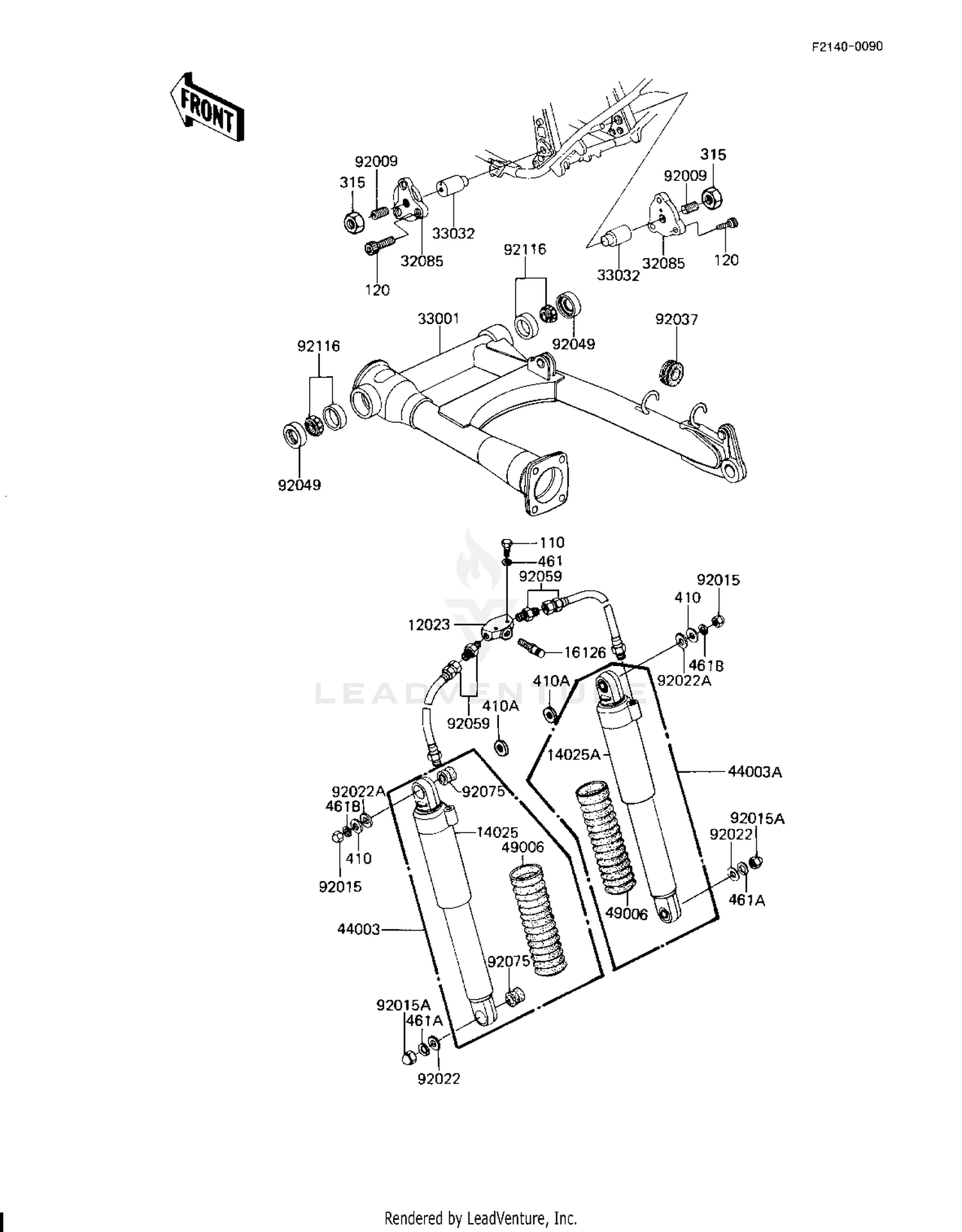

Swing Arm/shock Absorbers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#12023
HOLDER-VALVE,AIR
12023-1012
|
$35.88 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,SHOCKABSORBER,L
14025-1488
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,SHOCKABSORBER,R
14025-1489
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE AIR
16126-1052
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER,SWING ARM
32085-1071
|
$38.28 | ||
|
Available to order. Add to View Price |
|||
|
#33001
ARM-COMP-SWING
33001-1102
|
$236.37 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM
33032-1021
|
$43.69 | ||
|
Available to order. Add to View Price |
|||
|
#44003
DAMPER-ASSY,RR,LH,GOL
44003-1239
|
$407.62 | ||
|
Available to order. Add to View Price |
|||
|
#44003A
DAMPER-ASSY,RR,RH,GOL
44003-1240
|
$361.08 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,RR SHOCKABSORBER
49006-1077
|
$69.67 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,14X22
92009-1087
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,CAP,12MM,BLA
92015-1192
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CAP,10MM,BLACK
92015-1203
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.5X30X2.3,BL
92022-1302
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,12.4X28X2.3,BL
92022-1303
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#92037
GROMMET,HOSE CLAMP
43064-007
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,26406
92049-1030
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,SHOCKABSORBER,RR
92059-1194
|
$69.49 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SHOCKABSORBER
92075-1141
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#92116
BRG,ROLLER,4T30203E1
92116-1001
|
$36.58 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,8X20
120S0820
Superseded by 120CB0820
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#315
NUT,14MM
315B1400
Superseded by 315AA1400
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLANE-SMALL,12
410F1200
Superseded by 410AB1200
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#410A
WASHER-PLAIN-SMALL,14MM,BLACK
410F1400
Superseded by 410AB1400
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,10MM
461K1000
Superseded by 461DB1000
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#461B
WASHER-SPRING,12MM,BL
461K1200
Superseded by 461DB1200
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
