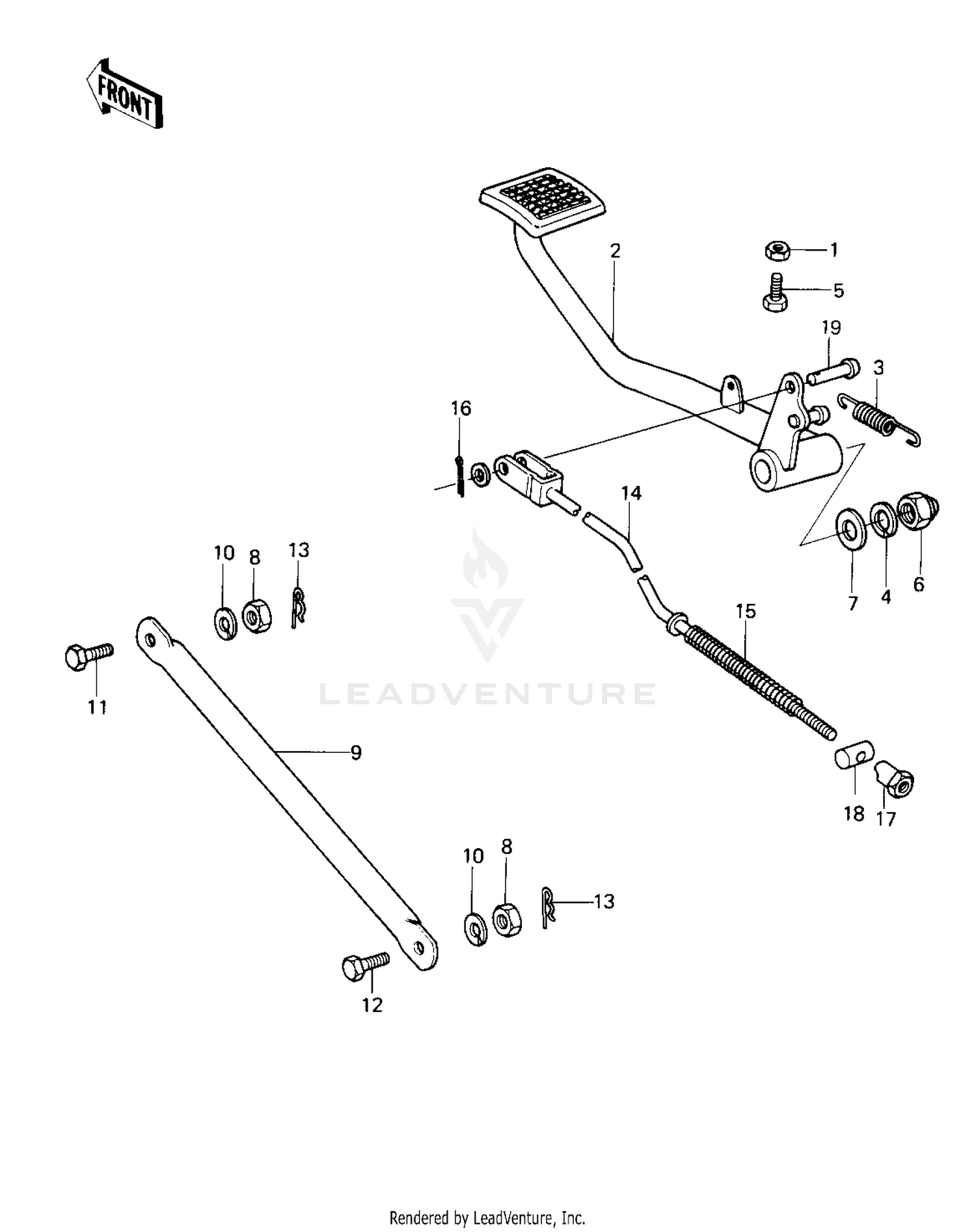

Brake Pedal/torque Link ('80 D1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL,BRAKE
43001-1044
|
$70.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING,BRAKE PEDAL
43005-029
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,HEX HEAD,6X25
92001-1090
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT,CAP AND LOCK,8MM
92019-013
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,8.5X20X1.6
92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
TORQUE LINK REAR BRK
43007-018
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT TORQUE LINK FIT
92003-017
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,10X29
92003-096
Superseded by 92151-1876
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN-SNAP
554A0800
Superseded by 554DA0800
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD,BRAKE
43011-1022
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING,BRAKE ROD
43012-001
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT,BRAKE ROD
92015-042
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN,BRAKE ROD
92043-039
Superseded by 92043-0147
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN,BRAKE ROD FITTING
92043-090
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
