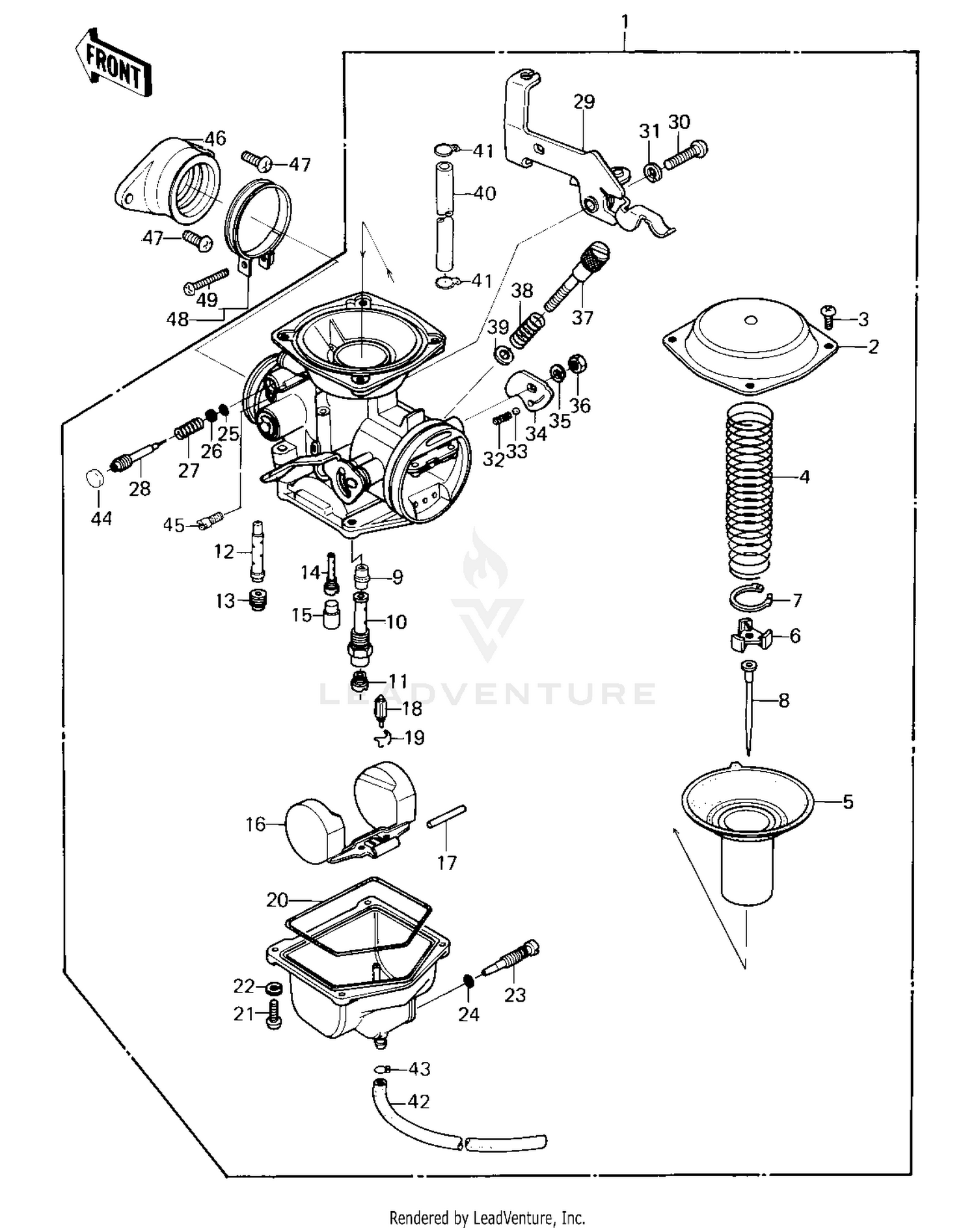

1980 Kawasaki KZ250 CARBURETOR ('80 D1) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
16001-1160
|
$341.99 | ||
|
Unavailable |
|||
|
#2
TOP,MIXING CHAMBER
16005-1001
|
$37.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
92081-1001
|
$16.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
VACUUM,VALVE
16126-1042
|
$229.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
16007-1001
|
$13.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
92037-1005
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
JET NEEDLE,N05A
16009-1054
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
NEEDLE JET
16017-1052
|
$30.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER,NEEDLE JET
13091-1050
|
$27.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
MAIN JET,#2ND,#98
92063-1005
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
MAIN JET,#92,2ND
92063-1004
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
MAIN JET,2ND,#95
92063-1001
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
MAIN JET,2ND,#100
92063-1006
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET-MAIN,#102
92063-1090
Superseded by 92063-1115
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
NOZZLE,MAIN
92062-1001
|
$25.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
MAIN JET,PRI,#68
92063-1050
|
$18.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
PILOT JET,#35
92064-1001
|
$21.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP,RUBBER
16012-1001
|
$6.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
FLOAT
16031-1001
|
$58.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLOAT PIN
92043-1002
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE-FLOAT
16030-1007
|
$44.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP,FLOAT VALVE
16044-007
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING,FLOAT BALL
16019-024
|
$23.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-PAN-CROS,4X12
220B0412
Superseded by 220AA0412
|
$0.21 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW,DRAIN,M6X1.0
92009-1095
Superseded by 92009-1434
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING-O
92055-1053
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING-O,PILOT ADJUST
92055-1002
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER,PLAIN
92022-1003
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING,PILOT ADJUST SCREW
92081-1002
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW,PILOT ADJUST
16014-1029
|
$17.89 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE,STAY
11034-1826
|
$51.78 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-PAN-CROS,5X25
220B0525
Superseded by 220AA0525
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING
92081-1004
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#33
BALL,STEEL,1/8"
600A0400
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAM,CHOKE LINK
13169-1303
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Unavailable |
|||
|
#36
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW,THROTTLE STOP
16021-1031
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING,STOP SCREW
92081-1062
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER,PLAIN
92022-1209
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#40
TUBE,5.3X10.5X160
92059-1001
Superseded by 92059-1139
|
$14.52 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP,TUBE
92037-1682
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOSE,FUEL OVERFLOW
92059-1046
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP,TUBE
92037-1142
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#45
SCREW,PLUG
92009-1004
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOLDER,CARBURETOR
16065-1028
|
$38.71 | ||
|
Unavailable |
|||
|
#47
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP,CARBURETOR
92037-1021
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW-PAN-CROS
220B0530
Superseded by 220AA0530
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
