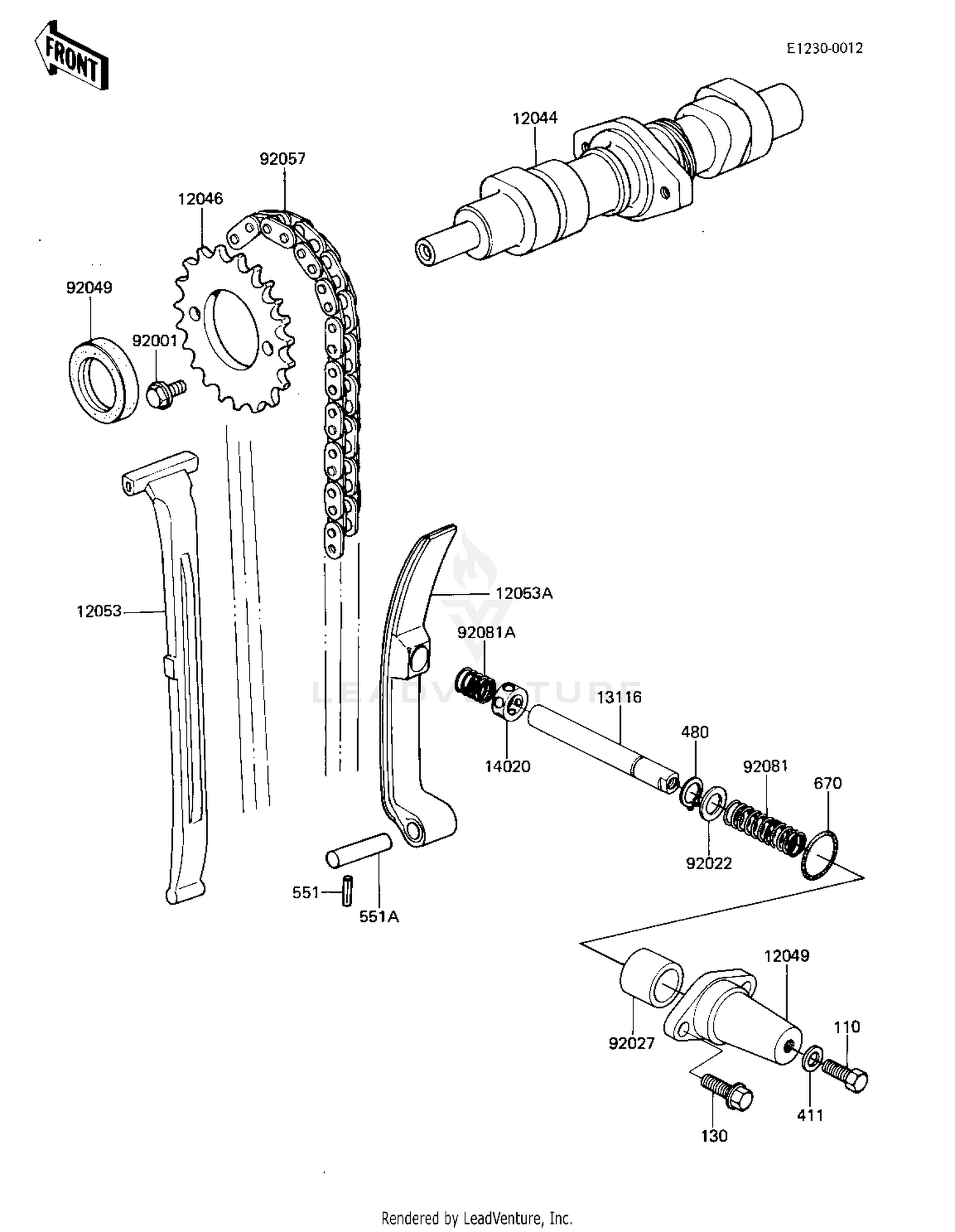

Camshaft/chain/tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#12044
CAMSHAFT-VALVE
12044-1002
|
$295.20 | ||
|
Available to order. Add to View Price |
|||
|
#12046
SPROCKET,CAM,30T
12046-1008
|
$34.23 | ||
|
Available to order. Add to View Price |
|||
|
#12049
TENSIONER,CAM CHAIN
12049-1010
Superseded by 12049-1017
|
$25.10 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE-CHAIN,CAM,FR
12053-1020
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#12053A
GUIDE-CHAIN,CAM,RR
12053-1050
|
$45.77 | ||
|
Available to order. Add to View Price |
|||
|
#13116
ROD,PUSH,TENSIONER
13116-1022
|
$15.19 | ||
|
Available to order. Add to View Price |
|||
|
#14020
RETAINER
14020-1002
|
$16.92 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X11
92003-208
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.2X14.5X1.0
92022-1181
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,TENSIONER
92027-1240
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,R.H CRNKSFT
92050-065
|
$22.69 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,CAM,BF05MX82L
92057-1015
|
$91.46 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,TENSIONER
92081-1206
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,TENSIONER
92081-1207
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X20
130G0620
Superseded by 130CA0620
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,10MM
480J1000
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,3X16
551A0316
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#551A
PIN-DOWEL,8X40
551A0840
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,21MM
670B2021
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
