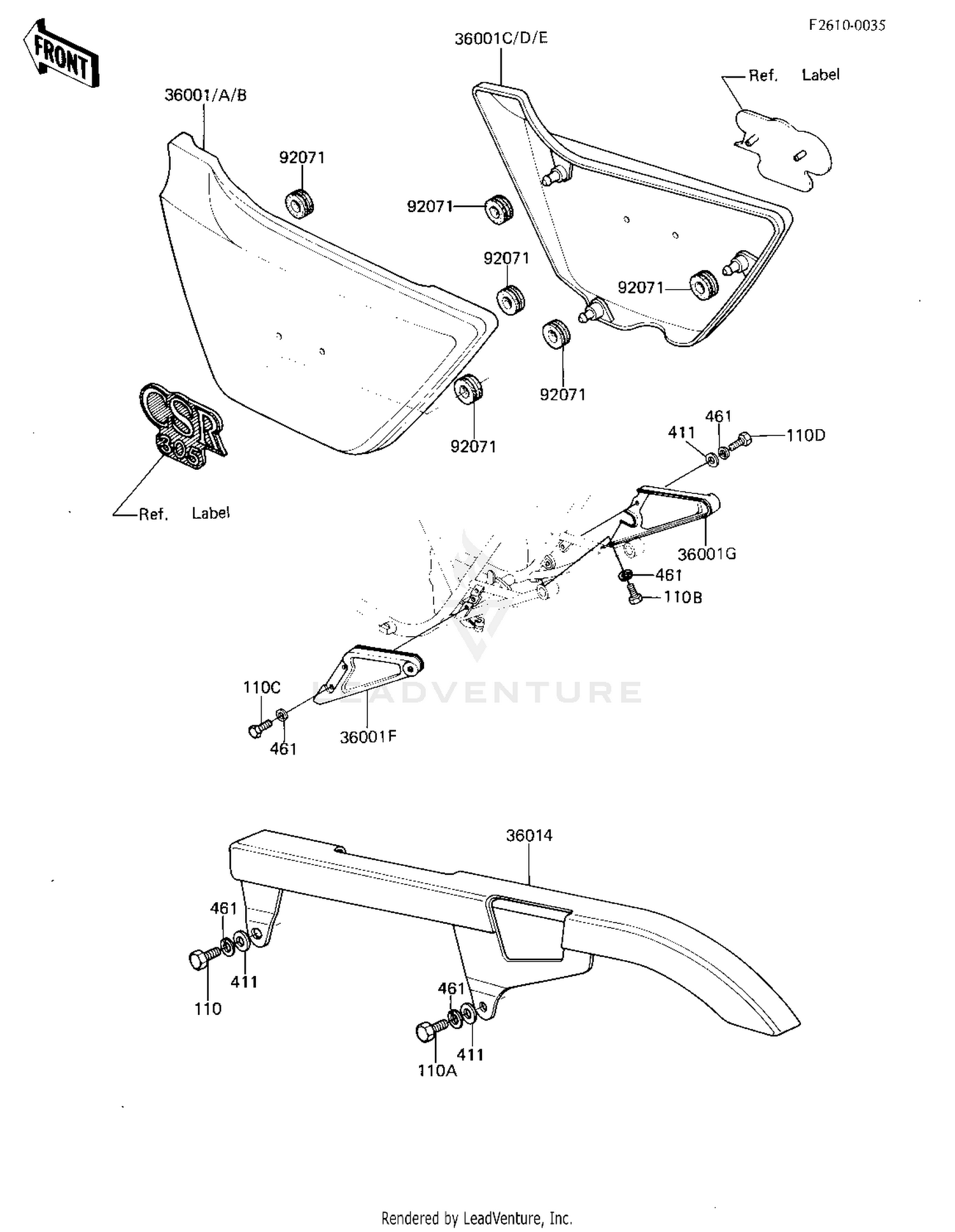

Side Covers/chain Cover Diagram
Item | MSRP | Qty | |
---|---|---|---|
#36001
COVER-SIDE,LH,P.RED
36001-1125-A5
|
$71.12 | ||
Available to order. Add to View Price |
|||
#36001A
COVER-SIDE,LH,L.M.RED
36001-1125-E2
|
$90.11 | ||
Available to order. Add to View Price |
|||
#36001B
COVER-SIDE,LH,EBONY
36001-1125-8G
|
$90.11 | ||
Available to order. Add to View Price |
|||
#36001C
COVER-SIDE,RH,P.RED
36001-1126-A5
|
$71.12 | ||
Available to order. Add to View Price |
|||
#36001D
COVER-SIDE,RH,L.M.RED
36001-1126-E2
|
$103.66 | ||
Available to order. Add to View Price |
|||
#36001E
COVER-SIDE,RH,EBONY
36001-1126-8G
|
$92.29 | ||
Available to order. Add to View Price |
|||
#36001F
COVER,MUFFLER STAY,LH
36001-1129
|
$18.83 | ||
Available to order. Add to View Price |
|||
#36001G
COVER,MUFFLER STAY,RH
36001-1130
|
$18.83 | ||
Available to order. Add to View Price |
|||
#36014
CASE-CHAIN,CR-PLATED
36014-1038
|
$94.87 | ||
Available to order. Add to View Price |
|||
#92071
GROMMET
92071-056
|
$4.13 | ||
Available to order. Add to View Price |
|||
#110
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
Available to order. Add to View Price |
|||
#110A
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
Available to order. Add to View Price |
|||
#110B
BOLT,6X8
110N0608
|
$4.09 | ||
Available to order. Add to View Price |
|||
#110C
BOLT-FLANGED-SMALL,6X12
132E0612
|
$4.68 | ||
Available to order. Add to View Price |
|||
#110D
BOLT-UPSET
112G0614
Superseded by 112BA0614
|
$2.04 | ||
Available to order. Add to View Price |
|||
#411
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
Available to order. Add to View Price |
|||
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
Available to order. Add to View Price |
