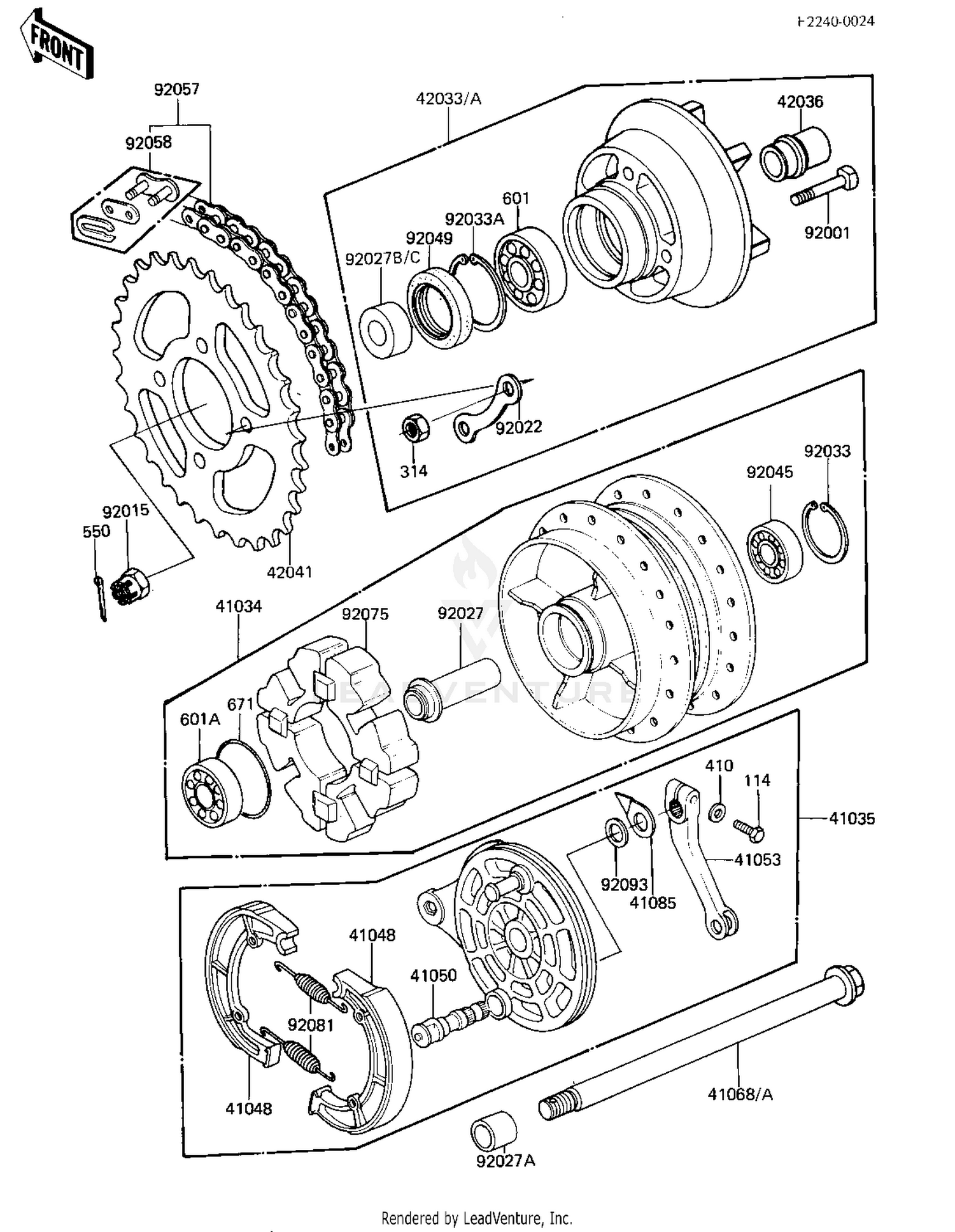

Rear Hub/brake/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41034
DRUM-ASSY,RR BRK
41034-1005
|
$279.59 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY.-BRAKE, RR
41035-1089
Superseded by 41035-1453
|
$346.11 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1069
|
$26.34 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM,BRAKE
41050-1001
|
$33.96 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER,BRAKE CAM
41053-1001
|
$34.79 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1055
|
$42.64 | ||
|
Available to order. Add to View Price |
|||
|
#41068A
AXLE,RR
41068-1067
|
$49.98 | ||
|
Available to order. Add to View Price |
|||
|
#41085
INDICATOR,BRAKE SHOE
41085-004
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-1033
|
$118.50 | ||
|
Available to order. Add to View Price |
|||
|
#42033A
COUPLING-ASSY,RR
42033-1044
|
$125.29 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,COUPLING
42036-1002
|
$36.08 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,RR,33T
42041-1064
Superseded by 42041-1151
|
$115.05 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT, RR SPROCKET FIT
92003-156
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CASTLE,16MM
92015-055
Superseded by 92015-1951
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER SPROCKET LOCK
92088-005
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,REAR HUB BRG.
92027-1013
|
$15.32 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,RR AXLE,RH
92027-1256
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,RR AXLE,LH
92027-1321
|
$26.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027C
COLLAR
92027-1368
|
$31.71 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL
601B6303U
|
$25.42 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92052-006
Superseded by 92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92057
DR CHAIN 530X98
92057-014
|
$209.13 | ||
|
Available to order. Add to View Price |
|||
|
#92058
CHAIN JOINT 530
92058-008
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,REAR HUB SHOCK
92075-1008
|
$68.75 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING-BRAKE SHOE
42020-004
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92093
DUST SHIELD-BRAKE CAM
41051-003
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT HEX HEAD 8X28
114G0828
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#314
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING BALL #6205
601B6205
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,#6303C3
601B6303
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,60MM
671B2560
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
