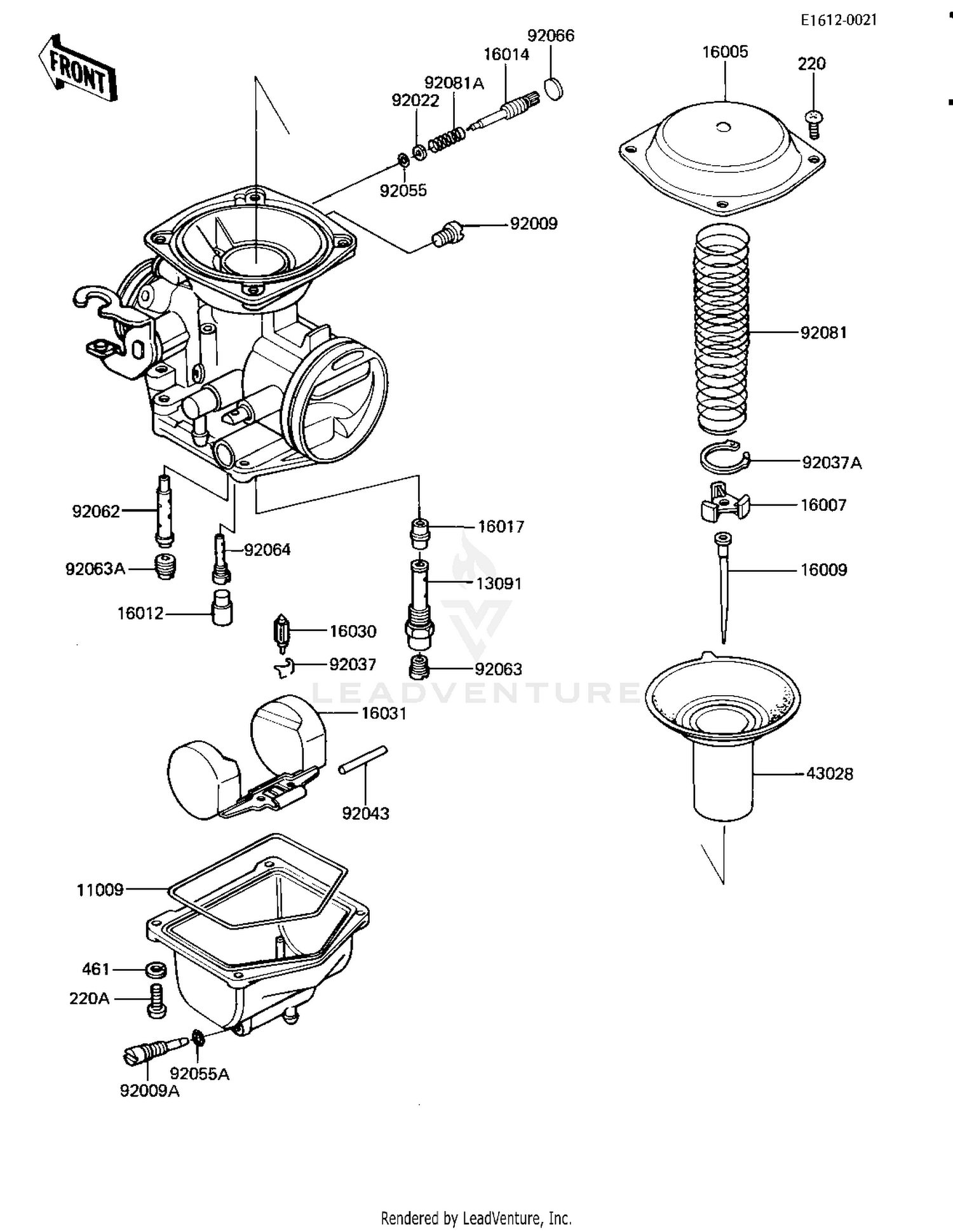

Carburetor Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
O RING,FLOAT BALL
16019-024
|
$24.38 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,NEEDLE JET
13091-1050
|
$28.19 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP,MIXING CHAMBER
16005-1001
|
$38.08 | ||
|
Available to order. Add to View Price |
|||
|
#16007
COLLAR
16007-1001
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#16009
JET NEEDLE,#N05C
16009-1081
|
$32.47 | ||
|
Available to order. Add to View Price |
|||
|
#16012
CAP,RUBBER
16012-1001
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW,PILOT ADJUST
16014-1029
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#16017
NEEDLE JET
16017-1079
|
$42.02 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1001
|
$61.81 | ||
|
Available to order. Add to View Price |
|||
|
#43028
VACUUM,PISTON
43028-1023
|
$198.98 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,PLUG
92009-1004
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,DRAIN,M6X1.0
92009-1095
Superseded by 92009-1434
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,PLAIN
92022-1003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CIRCLIP
92037-1005
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#92043
FLOAT PIN
92043-1002
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,PILOT ADJUST
92055-1002
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1053
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE,MAIN
92062-1018
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#92063
MAIN JET,2ND,#85
92063-1023
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
MAIN JET,PRI,#62
92063-1070
|
$14.28 | ||
|
Available to order. Add to View Price |
|||
|
#92064
PILOT JET,#35
92064-1001
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING
92081-1001
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,PILOT ADJUST SCREW
92081-1002
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,4X12
220B0412
Superseded by 220AA0412
|
$0.21 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
