< Back to Assembly Types

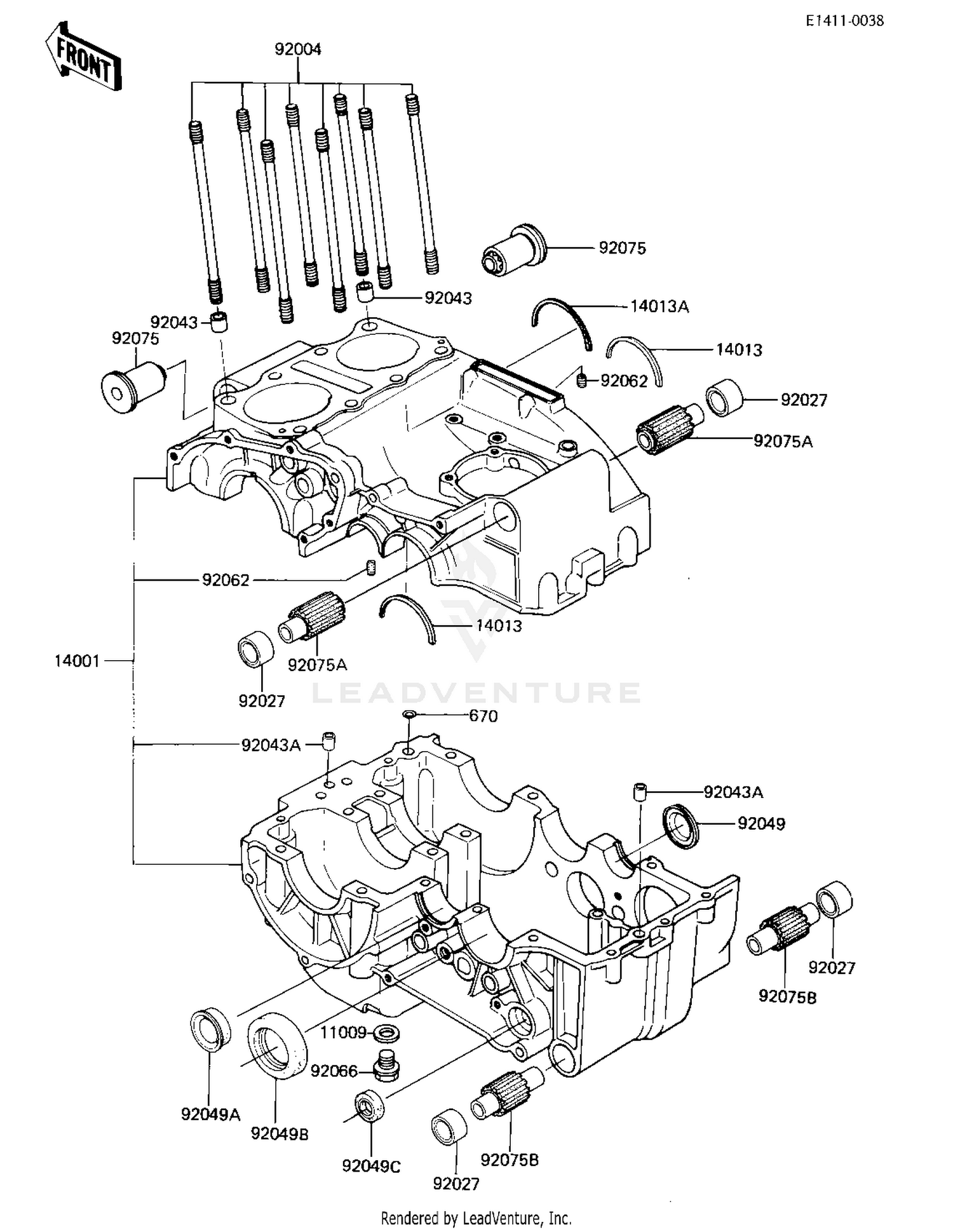

Crankcase Diagram

Item MSRP Qty
#11009 GASKET,12X22X2
92065-097
 $0.72
Available to order.
Add to View Price
#14001 SET-CRANKCASE
14001-5093
 $602.30
Available to order.
Add to View Price
#14013 RING-POSITION
14013-004
 $9.83
Available to order.
Add to View Price
#14013A RING-POSITION,T=1.98
14013-1004
 $4.80
Available to order.
Add to View Price
#92004 STUD,8X146
92004-1016
Superseded by 92004-1226
 $9.17
Available to order.
Add to View Price
#92027 COLLAR
92027-1391
 $7.72
Available to order.
Add to View Price
#92043 PIN,12X14
92042-031
Superseded by 92043-0963
 $6.36
Available to order.
Add to View Price
#92043A PIN,DOWEL,10X14
92043-1037
 $0.72
Available to order.
Add to View Price
#92049 SEAL-OIL,OUTPUT SHAFT
92049-1019
 $8.14
Available to order.
Add to View Price
#92049A SEAL-OIL,PLUG
92049-1074
 $13.55
Available to order.
Add to View Price
#92049B SEAL-OIL,HTC 32 52 10
92050-024
Superseded by 92049-1506
 $7.89
Available to order.
Add to View Price
#92049C SEAL-OIL,TB13225.5
92051-005
 $7.47
Available to order.
Add to View Price
#92062 NOZZLE,6X8,BLACK
92062-011
Superseded by 92062-1079
 $8.28
Available to order.
Add to View Price
#92066 PLUG,OIL DRAIN,12X15
92066-1174
 $5.96
Available to order.
Add to View Price
#92075 DAMPER,FR
92075-1437
 $12.68
Available to order.
Add to View Price
#92075A DAMPER
92075-1363
 $14.21
Available to order.
Add to View Price
#92075B DAMPER
92075-1364
 $14.99
Available to order.
Add to View Price
#670 O RING,10MM
670B2010
 $1.47
Available to order.
Add to View Price
