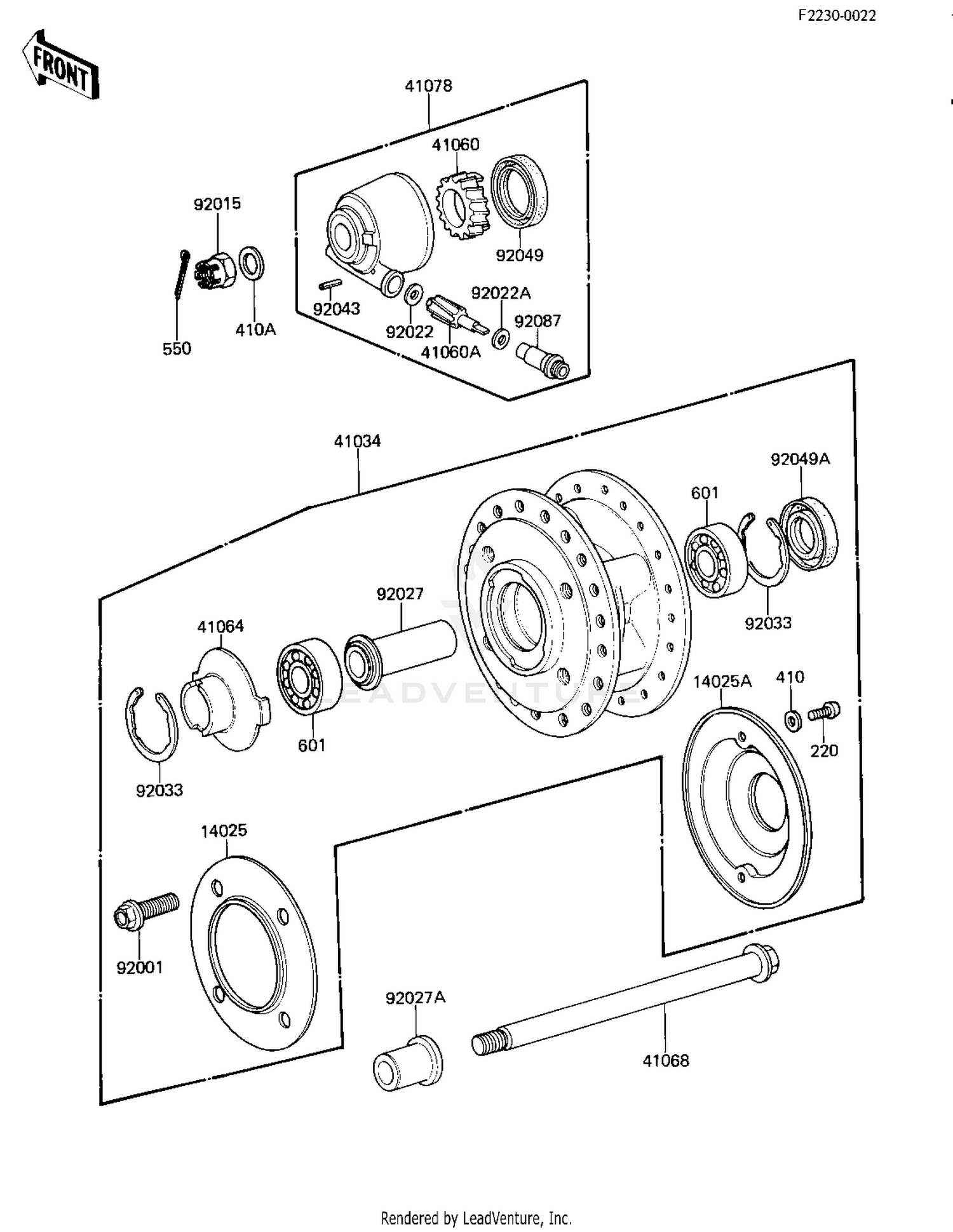

Front Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14025
COVER,DUST,LH
14025-1277
|
$26.71 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,DUST,RH
14025-1341
|
$27.14 | ||
|
Available to order. Add to View Price |
|||
|
#41034
DRUM-ASSY,FR BRK
41034-1033
|
$514.37 | ||
|
Available to order. Add to View Price |
|||
|
#41060
GEAR-METER SCREW,24T
41060-1025
|
$20.97 | ||
|
Available to order. Add to View Price |
|||
|
#41060A
GEAR-METER SCREW,9T
41060-1035
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#41064
RECEIVER-SPEEDOMETER
41064-1006
|
$14.39 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,FR
41068-1099
|
$58.51 | ||
|
Available to order. Add to View Price |
|||
|
#41078
CASE-ASSY-METER GEAR
41078-1018
|
$90.39 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,HEX HEAD,10X30
92001-1173
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CASTLE,14MM
42045-020
Superseded by 92015-1765
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.1X9X0.4
41063-001
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,5.1X9X0.4
41063-001
|
$4.54 | ||
|
Unavailable |
|||
|
#92027
COLLAR,15.2X22X55
92027-1223
Superseded by 92027-1505
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,FR AXLE L=30MM
92027-1225
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,42MM
92033-1041
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,SPRING
41082-001
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJN30427-C3
92049-1057
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,BJN22425
92049-1058
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#92087
BUSHING-METER GEAR
92087-1002
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X14
220B0514
Superseded by 220AA0514
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#410A
WASHER-PLAIN-SMALL,14MM
410B1400
Superseded by 410AA1400
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,3.2X25
550D3225
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL, #6302
601B630ZZ
|
|||
|
Unavailable |
|||
