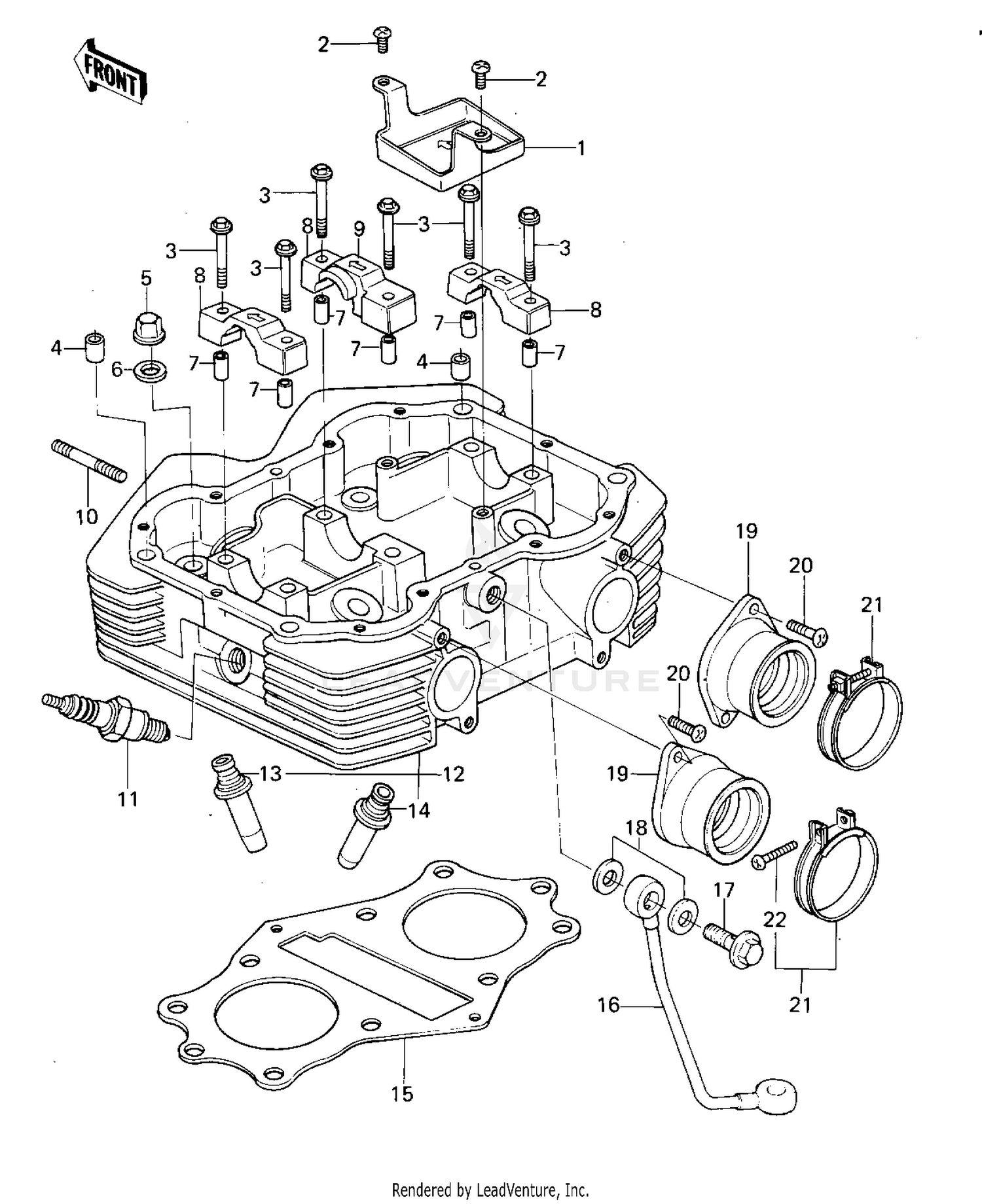

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP,CYLINDER HEAD OIL
11012-1027
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW-PAN-CROS,6X10
220B0610
Superseded by 220AA0610
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,HEX HEAD,6X38
92003-206
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN,DOWEL,10X14
92043-1037
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,CYLINDER HEAD
92015-076
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,10.5X22X1.6
92022-1005
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP,BRG,HEAD,L.H&R.H
14022-1002
|
$57.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP,BRG.HEAD,CENTER
14022-1003
|
$40.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
STUD,6X46
92004-049
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPARK PLUG B7ES
B7ES
|
$3.50 | ||
|
Unavailable |
|||
|
#12
CYLINDER HEAD
11002-1003
|
$610.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE,EXHAUST VALVE
49002-1010
|
$39.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE,INLET VALVE
12013-003
|
$44.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET-HEAD,CYLINDER
11004-1008
Superseded by 11004-1297
|
$87.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE,OIL
32032-1084
|
$40.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,BANJO,10X25
92001-1017
|
$16.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET,10X14.5X1.5
11009-1105
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER,CARBURETOR
16065-1002
|
$42.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-PAN-CROS,6X18
220B0618
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP,CARBURETOR
92037-1021
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-PAN-CROS
220B0530
Superseded by 220AA0530
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHAFT,ROCKER
12020-1001
|
$11.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,16X19.7X1.5
11009-1106
|
$6.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT,6MM
92016-061
Superseded by 92210-1490
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW,ADJUSTING
92009-1032
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM,ROCKER
12016-1001
|
$86.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLET,RETAINER
12011-004
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER,VALVE SPRING
12009-006
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING,OUTER VALVE
12007-013
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING,INNER VALVE
12007-014
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL-OIL,RV37129.5
92049-016
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT,VLV INNER SPRING
12010-006
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT,VLV OUTER SPRING
12010-005
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
VALVE,EXHAUST
12005-1001
|
$62.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE,INTAKE
12004-1001
|
$46.16 | ||
|
Available to order. Add to View Price |
|||
