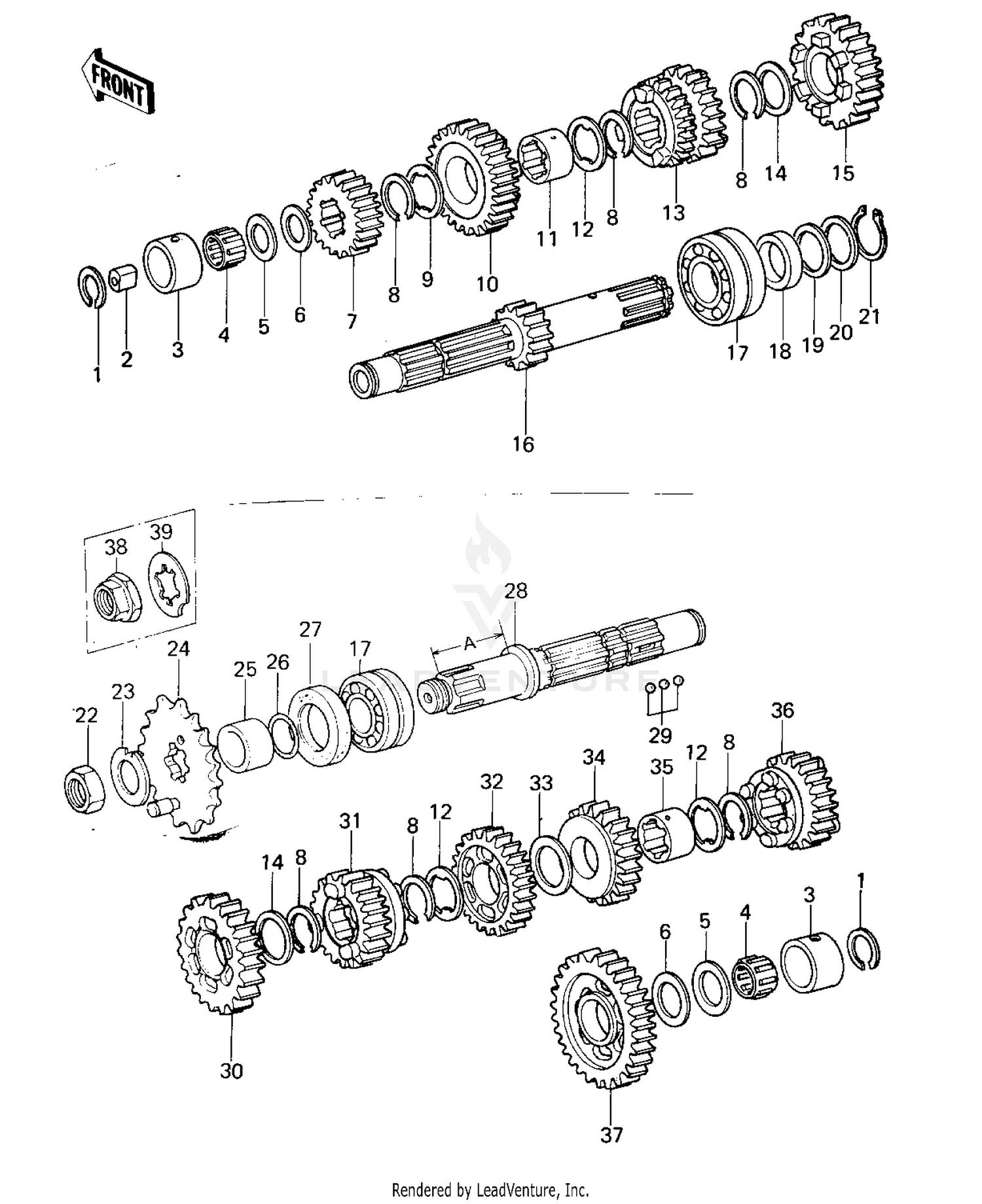

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING-SNAP,20MM
92033-015
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING,DRIVE SHAFT
92028-155
|
$14.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE,OUT & DRV SHAFT
92048-1001
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRG,N,20R25139
92046-044
|
$21.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
92022-144
Superseded by 92026-1535
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,20.5X30X1,STEEL
92022-112
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
2ND GEAR,DRV SHAFT
13129-1062
|
$64.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING-SNAP,24MM
92033-026
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-LOCK
92024-033
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
TOP GEAR,DRV SHAFT
13129-1055
|
$92.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING,OUTPUT 3RD GR
92028-1002
|
$43.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,TOOTHED,22.5X31X0.5
92024-038
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
3RD-4TH GEAR,DRV SHFT
13129-1054
|
$98.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,25.3X30X0.5
92022-159
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR,INPUT5TH,23T
13129-1277
|
$95.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT,DRIVE,13T
13127-1004
|
$139.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING,B,5205ANX4PX
92045-031
|
$65.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
92027-289
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER,25.3X32X0.5
92022-225
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER,CLUTCH TRUST
92022-302
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP-TYPE-C,24MM
480J2400
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT,20MM
92016-028
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER,LOCK,20MM
92024-044
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#24
ENGINE SPROCKET
13144-1003
|
$51.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR,ENG SPROCKET
92027-288
|
$37.83 | ||
|
Available to order. Add to View Price |
|||
|
#26
RING-O
92055-035
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL-OIL,HTC 32 52 10
92050-024
Superseded by 92049-1506
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHAFT,OUTPUT
13128-1004
|
$112.85 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHAFT,OUTPUT
13128-1015
|
$377.00 | ||
|
Available to order. Add to View Price |
|||
|
#29
BALL-STEEL,5/32
600A0500
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#30
2ND GEAR,OUTPUT SHAFT
13129-1057
|
$112.68 | ||
|
Available to order. Add to View Price |
|||
|
#31
TOP GEAR,OUTPUT SHAFT
13129-1061
|
$92.73 | ||
|
Available to order. Add to View Price |
|||
|
#32
3RD GEAR,OUTPUT SHAFT
13129-1058
|
$87.79 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPACER,30X38X1.0
92026-079
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
4TH GEAR,OUTPUT SHAFT
13129-1059
|
$87.96 | ||
|
Available to order. Add to View Price |
|||
|
#35
BUSHING,OUTPUT GEAR
92028-1268
|
$27.76 | ||
|
Available to order. Add to View Price |
|||
|
#36
5TH GEAR,OUTPUT SHAFT
13129-1060
|
$95.56 | ||
|
Available to order. Add to View Price |
|||
|
#37
LOW GEAR,OUTPUT SHAFT
13129-1056
|
$87.96 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT,20MM
92015-1254
Superseded by 92015-1963
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER,SPLINE
92022-1083
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
