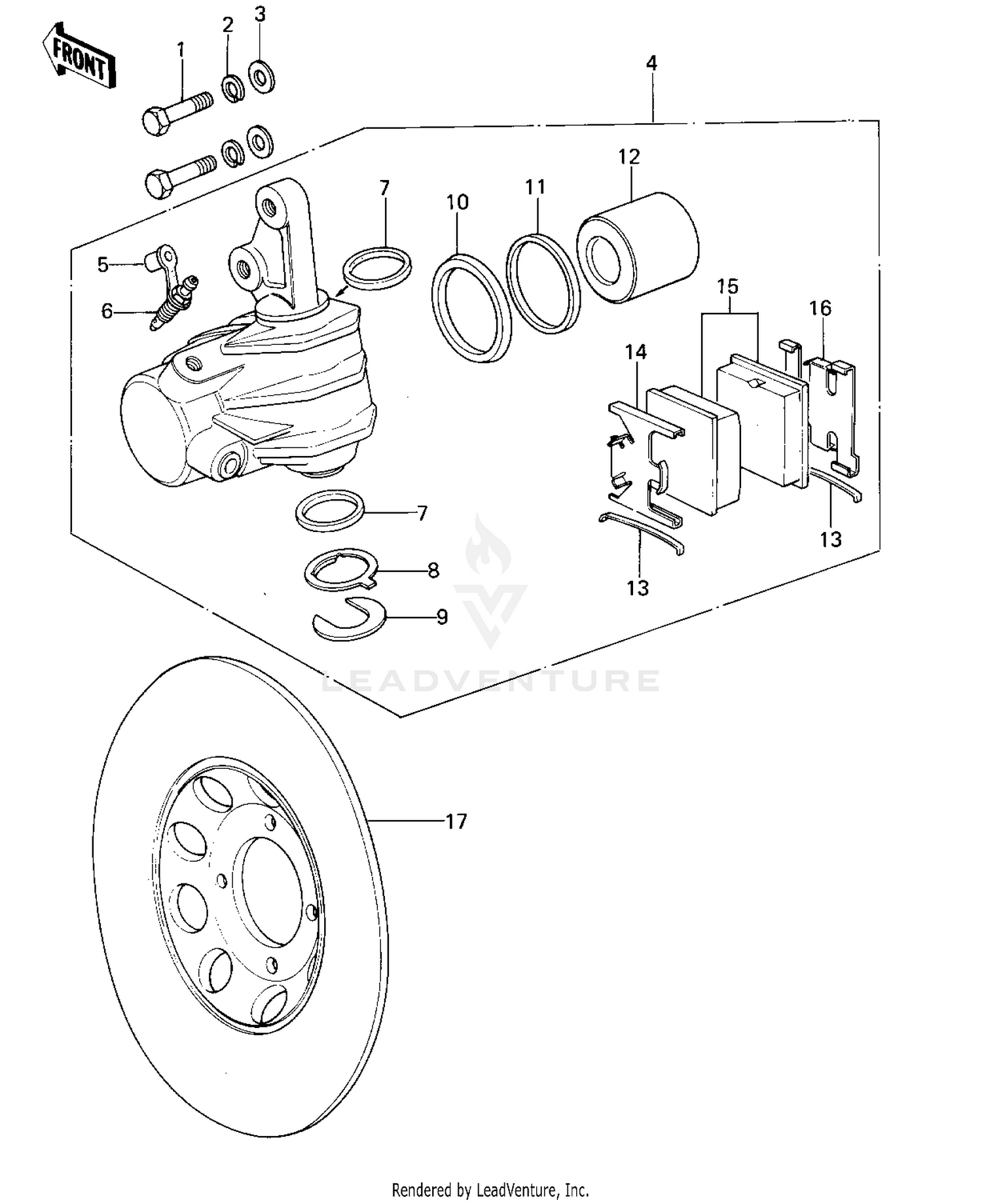

Front Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT,HEX HEAD,10X57
92007-044
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-PLAIN-SMALL,10MM
410B1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSY
43041-1003
|
$340.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP,BREEDER
43057-004
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
BREEDER
43056-004
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUST SEAL
43049-1001
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER SET,LOCK
92022-1161
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER SET,LOCK
92022-1161
|
$36.25 | ||
|
Unavailable |
|||
|
#10
RING,PISTON SEAL
43049-004
|
$7.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL
43083-002
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON,CALIPER
43048-005
|
$36.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
92081-1031
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP,PAD INNER
92037-1066
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
PAD SET
43050-5004
|
$73.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP,PAD,OUTER
92037-1004
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
DISC.PLATE
41080-1001
|
$350.87 | ||
|
Available to order. Add to View Price |
|||
