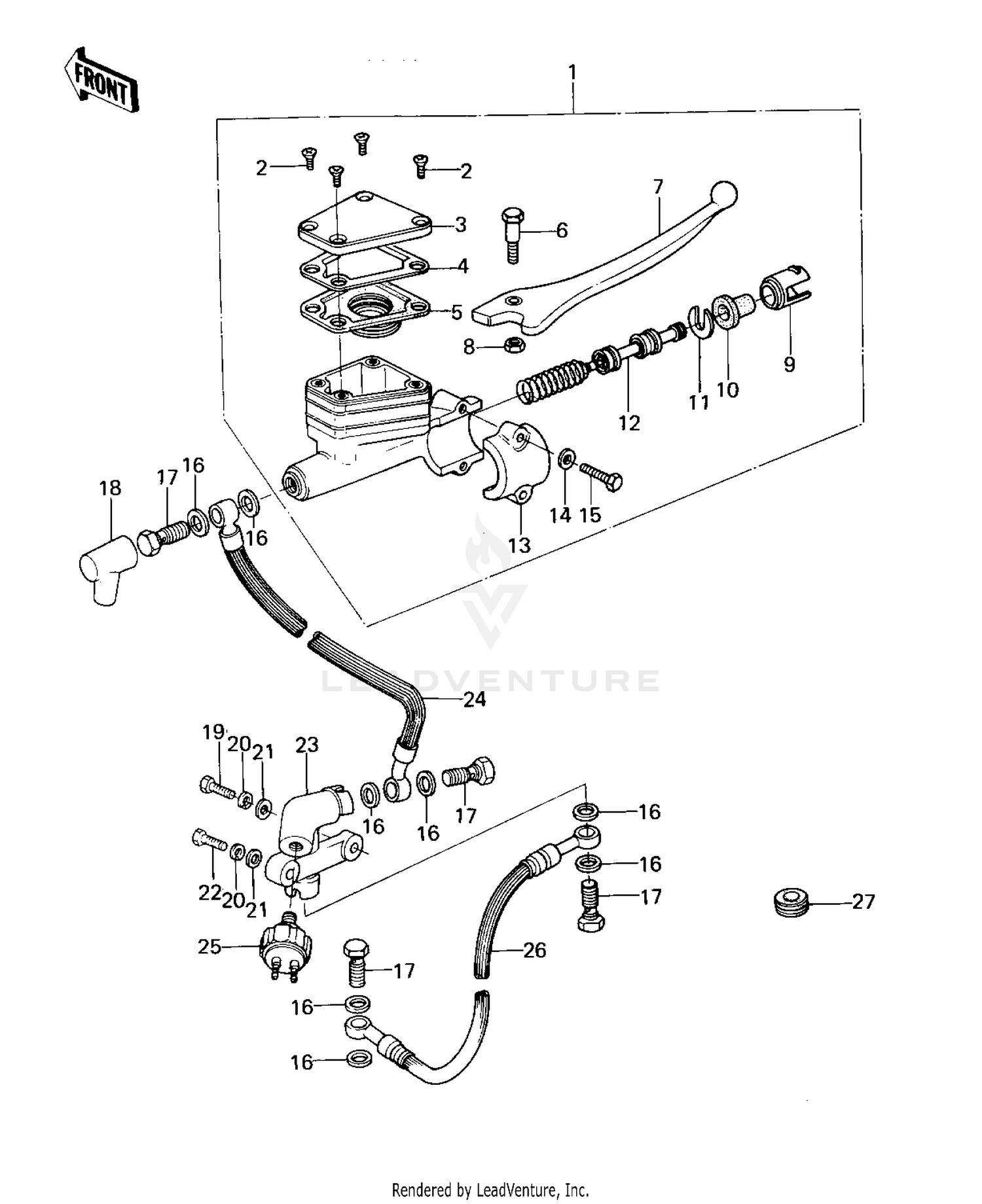

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY,MASTER
43015-1003
|
$278.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,COUNTERSUNK HED
92001-1055
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,OIL CUP
43026-1003
|
$68.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE,DIAPHRAGM
43027-1002
|
$8.98 | ||
|
Unavailable |
|||
|
#5
DIAPHRAGM
43028-1002
|
$35.66 | ||
|
Unavailable |
|||
|
#6
BOLT,CLUTCH LEV FITT
92001-1056
|
$14.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER,BRAKE
46092-1001
|
$30.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
LINER,PISTON
14008-1007
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST COVER
49016-1010
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPER,PISTON
43022-1001
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON-COMP-BRAKE
43020-1026
|
$91.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER,MASTER CYLINDR
43034-1001
|
$33.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-UPSET
110N0625
Superseded by 112N0625
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOT,DUST
49006-1041
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-UPSET
112B0622
Superseded by 112BA0622
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Unavailable |
|||
|
#22
BOLT-HEX HEAD,6X32
110N0632
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#23
JOINT,THREE WAY
43061-002
|
$52.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE,BRAKE,M/C
43059-1012
|
$77.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
SWITCH-FRONT BRAKE
43065-001
|
$57.90 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE,BRAKE,CALIPER
43059-1003
|
$85.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
GROMMET,HOSE CLAMP
43064-006
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
