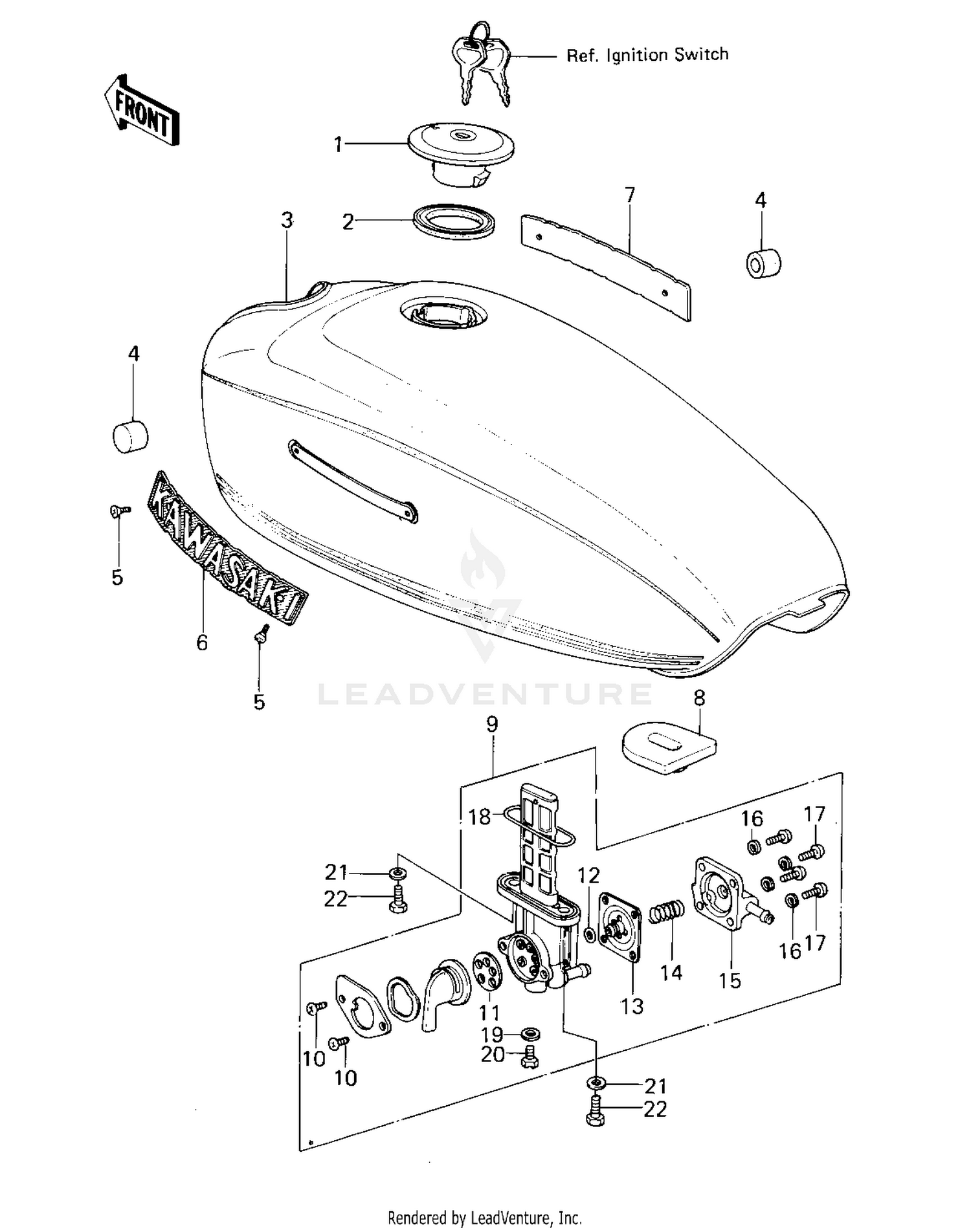

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP ASSY,TANK
51048-1001
|
$121.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,TANKCAP
11009-1053
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#3
TANK-FUEL,L.COPPER
51001-1004-A2
|
$495.86 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER,FUEL TANK
92075-101
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-CSK-CROS
221C0306
Superseded by 221AB0306
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM,FUEL TANK,L.H
56014-1013
|
$57.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
EMBLEM,FUEL TANK,R.H
56014-1014
|
$50.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER RUBBER FUEL TA
92075-295
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
TAP-ASSY,FUEL
51023-1030
Superseded by 51023-1376
|
$195.86 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET,TAP VALVE
11009-1068
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
0 RING,DIAPHRAGM
92055-1068
|
$28.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM ASSY,TAP
43028-1009
|
$45.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING,DIAPHRAGM
92081-1054
|
$8.66 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER ASSY,TAP DIAPRM
16146-1006
|
$23.26 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-PAN-CROS,4X10
220B0410
Superseded by 220AA0410
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING,TAP FLANGED
43058-1006
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET,DRAIN BOLT
11009-1045
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT,DRAIN
92001-1089
|
$12.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
