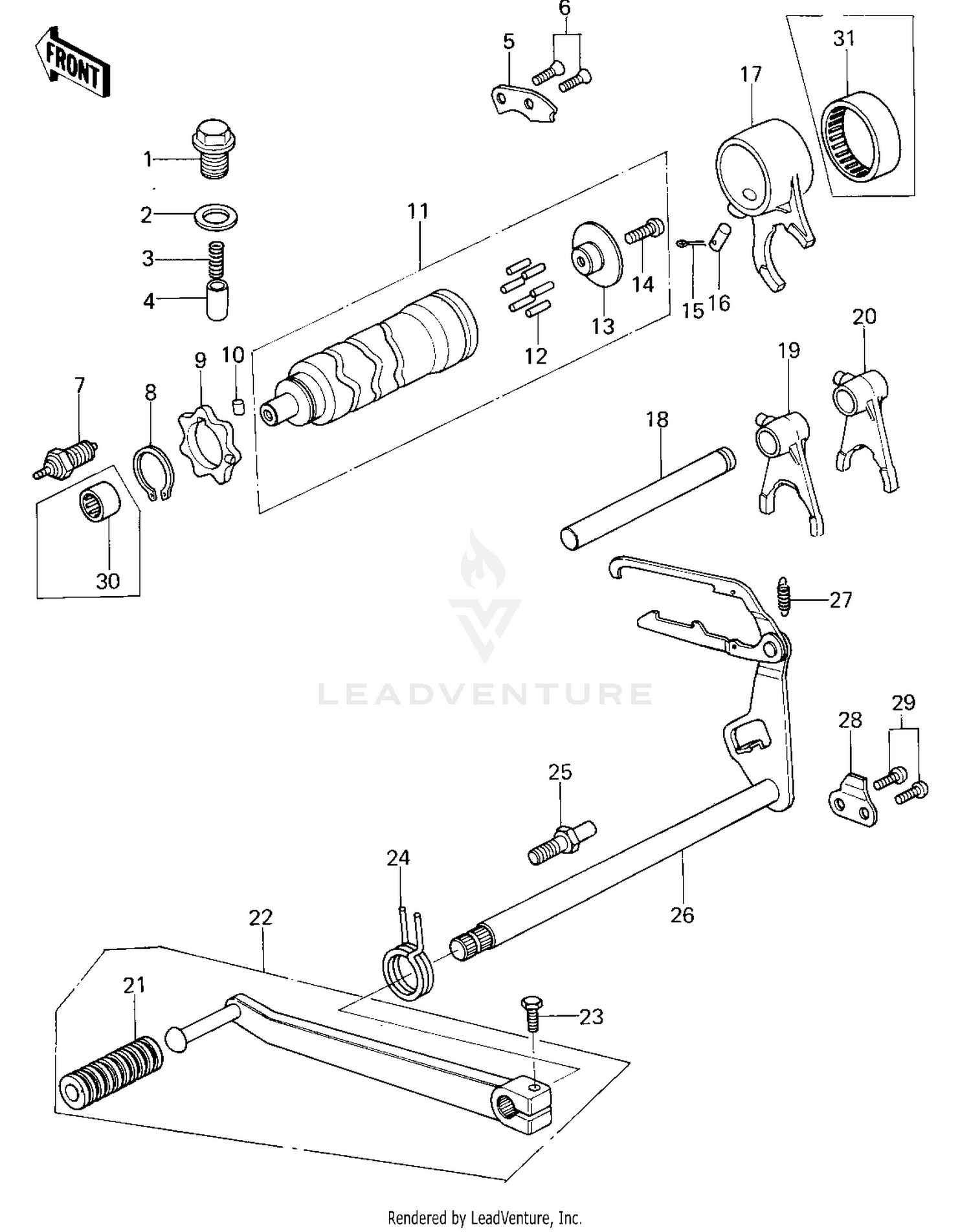

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT,NEUTRAL POSITION
92001-1037
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,15.5X22X1
11009-1008
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING
92081-112
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
92043-076
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE,SIFT DRM POSITN
14014-1001
|
$12.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW,CSK,6X16
92009-1007
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH,NEUTRAL
13151-5002
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP-TYPE-C,30MM
480J3000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAM-CHANGE DRUM
13145-1058
|
$21.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROLLER,4X6
610A0406
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRUM ASSY,CHANGE
13239-1001
|
$107.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRUM ASSY,CHANGE
13239-1012
|
$97.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN,DOWEL,4X15.8
92042-014
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE,SHIFT DRUM PIN
13142-016
|
$26.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN-COTTER,3.0X20
550D3020
Superseded by 550AA3020
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
DOWEL PIN,8X18
92042-021
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
FORK,SHIFT,4TH&TOP
13140-1002
|
$53.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD,SHIFT
13209-022
|
$12.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
FORK,SHIFT,LOW
13140-1001
|
$53.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIFT FORK,2ND 3RD
13140-067
|
$53.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER,CHANGE PEDAL
13157-004
Superseded by 92161-1532
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
PEDAL ASSY,GEAR SHIFT
13242-017
|
$142.46 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING,CHG PEDL RTN
92083-021
|
$20.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,RETURN SPRING
92001-1401
Superseded by 92001-1455
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#26
LEVER COMP,CHNG SHAFT
13161-1001
|
$83.73 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING,CHANGE LEVER
92081-076
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE,GEAR SHIFT LEV
13169-011
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING-NEEDLE,HK1210FM
92046-1010
Superseded by 92046-0034
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRG,NEDL,37BTM4312
92046-051
|
$24.20 | ||
|
Available to order. Add to View Price |
|||
