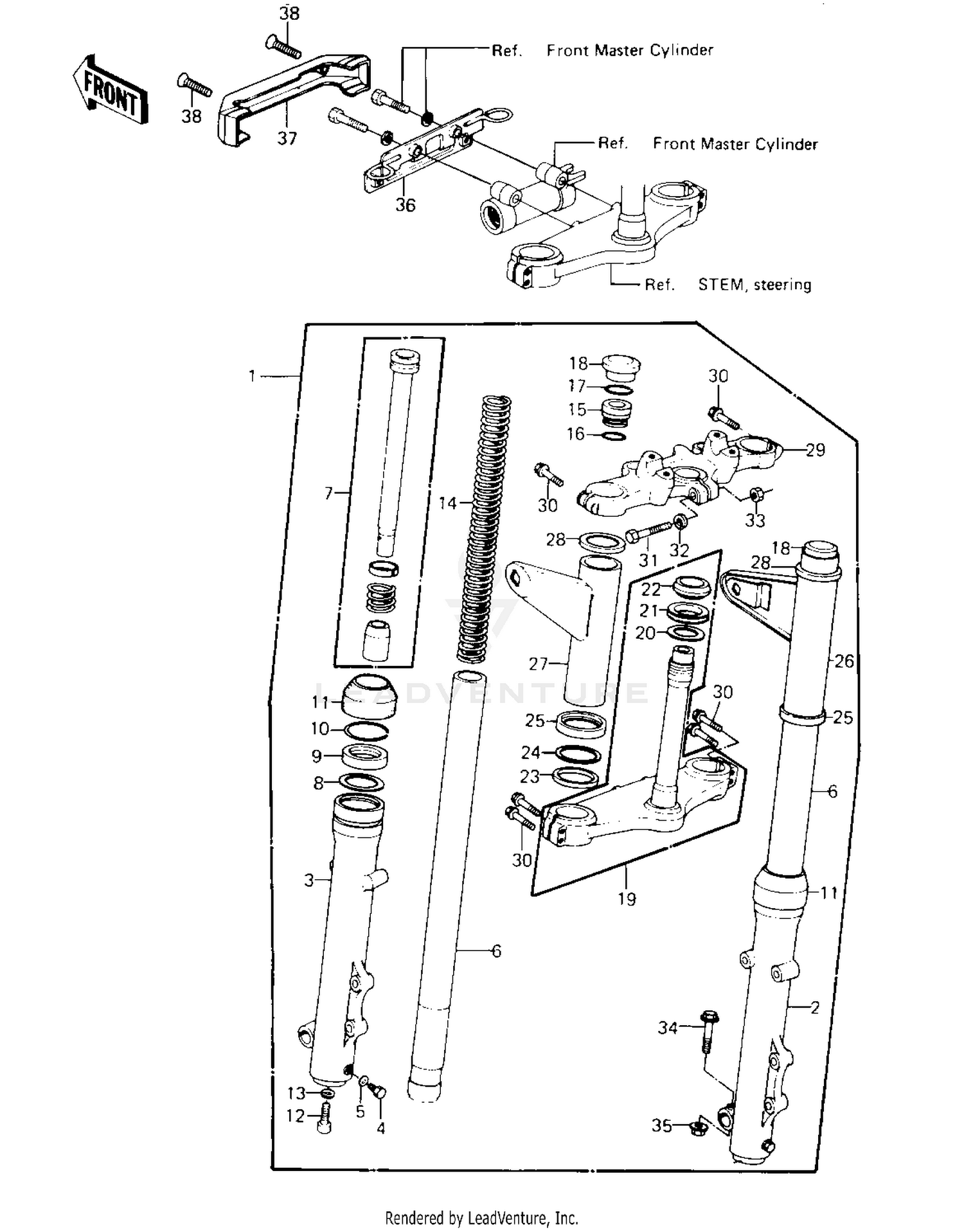

Front Fork (kz550-a1) Diagram

Item MSRP Qty
#1 FORK-FRONT
44001-1202
 $1,460.92
Available to order.
Add to View Price
#2 TUBE,RH,FORK OUTER
44006-1018
 $278.16
Available to order.
Add to View Price
#3 TUBE,LH,FORK OUTER
44005-1018
 $271.30
Available to order.
Add to View Price
#4 BOLT HEX HEAD 6X8
110B0608
 $0.33
Available to order.
Add to View Price
#5 GASKET,DRAIN PLUG
44045-047
Superseded by 44045-052
 $5.97
Available to order.
Add to View Price
#6 TUBE,FORK,INNER
44013-1023
 $394.29
Available to order.
Add to View Price
#7 CYLINDER-FORK
44022-1024
 $103.60
Available to order.
Add to View Price
#8 SPACER,FORK
92026-1038
 $9.25
Available to order.
Add to View Price
#9 SEAL-OIL,FORK
92049-1063
Superseded by 92049-1226
 $21.35
Available to order.
Add to View Price
#9 SEAL-OIL,FORK
92049-1063
Superseded by 92049-1226
 $21.35
Unavailable
#10 RING-SNAP,FORK
92033-1022
Superseded by 92033-1193
 $6.13
Available to order.
Add to View Price
#11 SEAL,DUST
92093-1047
 $45.28
Available to order.
Add to View Price
#11 SEAL,DUST
92093-1047
 $45.28
Unavailable
#12 BOLT,FORK CYLINDER
44041-078
 $9.54
Available to order.
Add to View Price
#13 GASKET,FORK CYLINDER BOLT
44045-051
 $5.96
Available to order.
Add to View Price
#14 SPRING,FORK INNER
44026-1022
 $69.28
Available to order.
Add to View Price
#15 GUIDE,SPRING
44029-1006
 $14.08
Available to order.
Add to View Price
#16 0 RING
92055-1034
 $8.38
Available to order.
Add to View Price
#17 RING-SNAP
92033-1023
 $4.72
Available to order.
Add to View Price
#18 CAP,FORK TOP
11012-1061
Superseded by 11012-1699
 $10.80
Available to order.
Add to View Price
#19 STEM,STEERING
44037-1013
 $839.54
Available to order.
Add to View Price
#20 WASHER,30.5X50X0.6
92022-231
 $4.54
Available to order.
Add to View Price
#21 SEAL-OIL,STEERING STEM
92056-003
 $8.55
Available to order.
Add to View Price
#22 RACE,STEERING STEM BEARING
92047-012
Superseded by 92048-0033
 $14.08
Available to order.
Add to View Price
#23 DAMPER RUBBER,FORK
92075-1137
 $8.42
Available to order.
Add to View Price
#24 WASHER,FORK COVER
92022-1111
 $11.04
Available to order.
Add to View Price
#25 GUIDE,FORK COVER,LOW
13169-1134
 $11.89
Available to order.
Add to View Price
#26 COVER-FORK,RH,BLACK
44033-1059
 $213.83
Available to order.
Add to View Price
#26 COVER-FORK,RH,BLACK
44033-1059
 $213.83
Unavailable
#27 COVER-FORK,LH,BLACK
44033-1058
 $235.13
Available to order.
Add to View Price
#27 COVER-FORK,LH,BLACK
44033-1058
 $235.13
Unavailable
#28 GUIDE,FORK COVER,UPPE
13169-1135
 $8.72
Available to order.
Add to View Price
#29 HEAD,STEERING STEM
44039-1011
 $371.98
Available to order.
Add to View Price
#30 BOLT,8X40
92001-1149
 $8.12
Available to order.
Add to View Price
#31 BOLT,HEX HEAD,8X55
92001-1064
 $9.43
Available to order.
Add to View Price
#32 WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
 $0.40
Available to order.
Add to View Price
#33 NUT,LOCK,8MM
92015-1124
 $5.25
Available to order.
Add to View Price
#34 BOLT,HEX HEAD,8X45
92001-1136
 $8.27
Available to order.
Add to View Price
#35 NUT,8MM
92015-1055
Superseded by 92015-1398
 $4.65
Available to order.
Add to View Price
#36 BRACKET,FORK COVER
11034-1790
 $48.49
Available to order.
Add to View Price
#37 COVER,FORK
44033-1053
 $47.85
Available to order.
Add to View Price
#38 SCREW-CSK-RD-CROS
222C0518
Superseded by 222AB0518
 $4.52
Available to order.
Add to View Price
