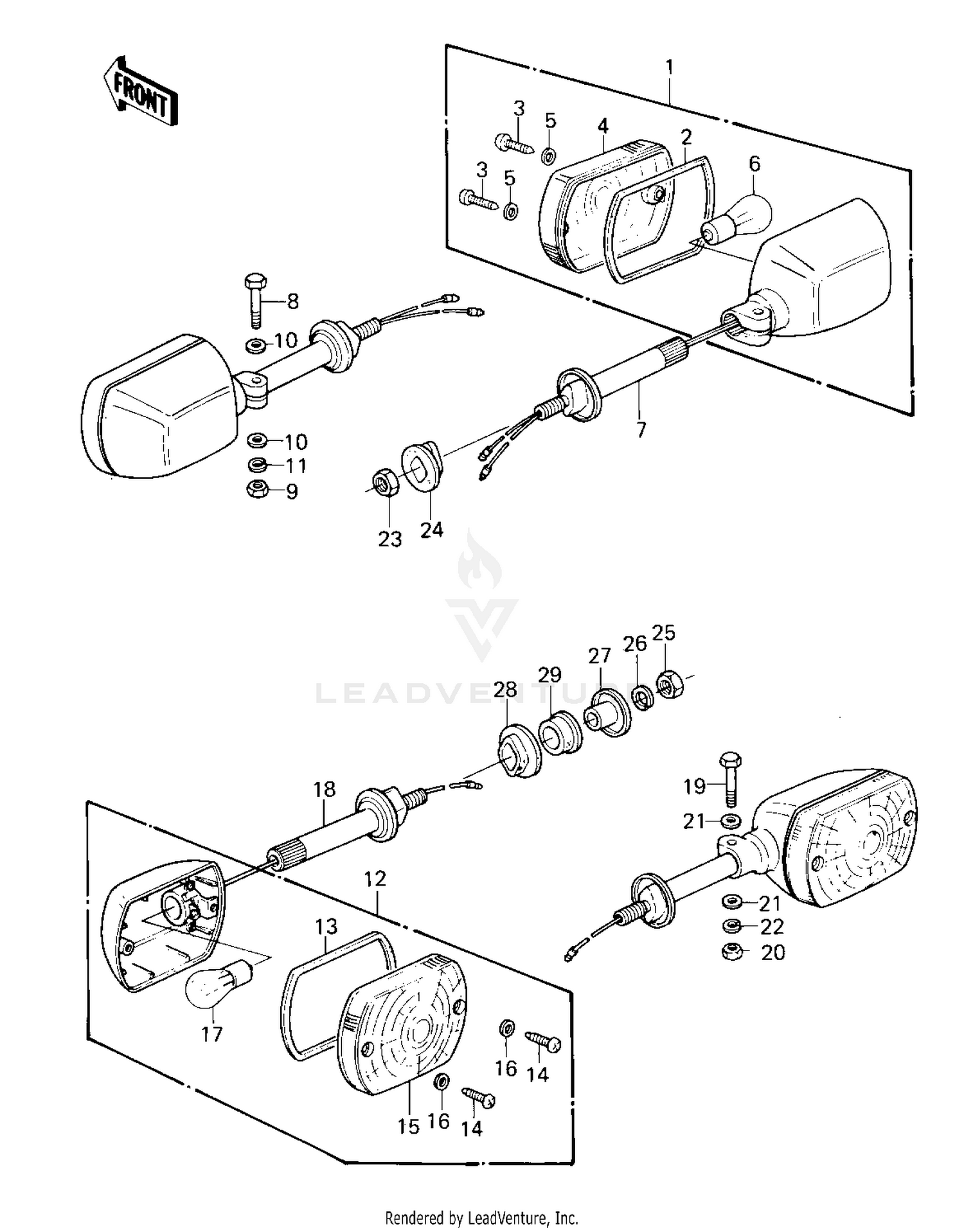

Turn Signals ('80-'81 A1/a2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,TURN SIGNAL
23040-1018
|
$142.98 | ||
|
Available to order. Add to View Price |
|||
|
#1
LAMP ASSY,TURN SIGNAL
23040-1017
|
$138.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,TURN SIGNAL
11009-1052
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW-PAN-CROS
220E0412
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS-SIGNAL LAMP
23048-1022
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER,PLAIN,4MM
23058-002
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB,12V 32CP(23W)
92069-055
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB,12V 32/3CP(23/8W)
92069-060
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET,TURN SIGNAL
23051-1014
|
$37.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
LAMP ASSY,TURN SIGNAL
23040-1018
|
$142.98 | ||
|
Unavailable |
|||
|
#13
GASKET,TURN SIGNAL
11009-1052
|
$4.32 | ||
|
Unavailable |
|||
|
#14
SCREW-PAN-CROS
220E0412
|
$3.83 | ||
|
Unavailable |
|||
|
#15
LENS-SIGNAL LAMP
23048-1022
|
$11.05 | ||
|
Unavailable |
|||
|
#16
WASHER,PLAIN,4MM
23058-002
|
$2.42 | ||
|
Unavailable |
|||
|
#17
BULB,12V 32CP(23W)
92069-055
|
$5.02 | ||
|
Unavailable |
|||
|
#18
BRACKET,TURN SIGNAL
23051-1014
|
$37.54 | ||
|
Unavailable |
|||
|
#19
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Unavailable |
|||
|
#20
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Unavailable |
|||
|
#21
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Unavailable |
|||
|
#22
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#23
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER RUBBER
92075-128
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Unavailable |
|||
|
#26
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
92027-147
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER RUBBER
92075-128
|
$5.67 | ||
|
Unavailable |
|||
|
#29
DAMPER RUBBER,SIG LM
92075-158
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
