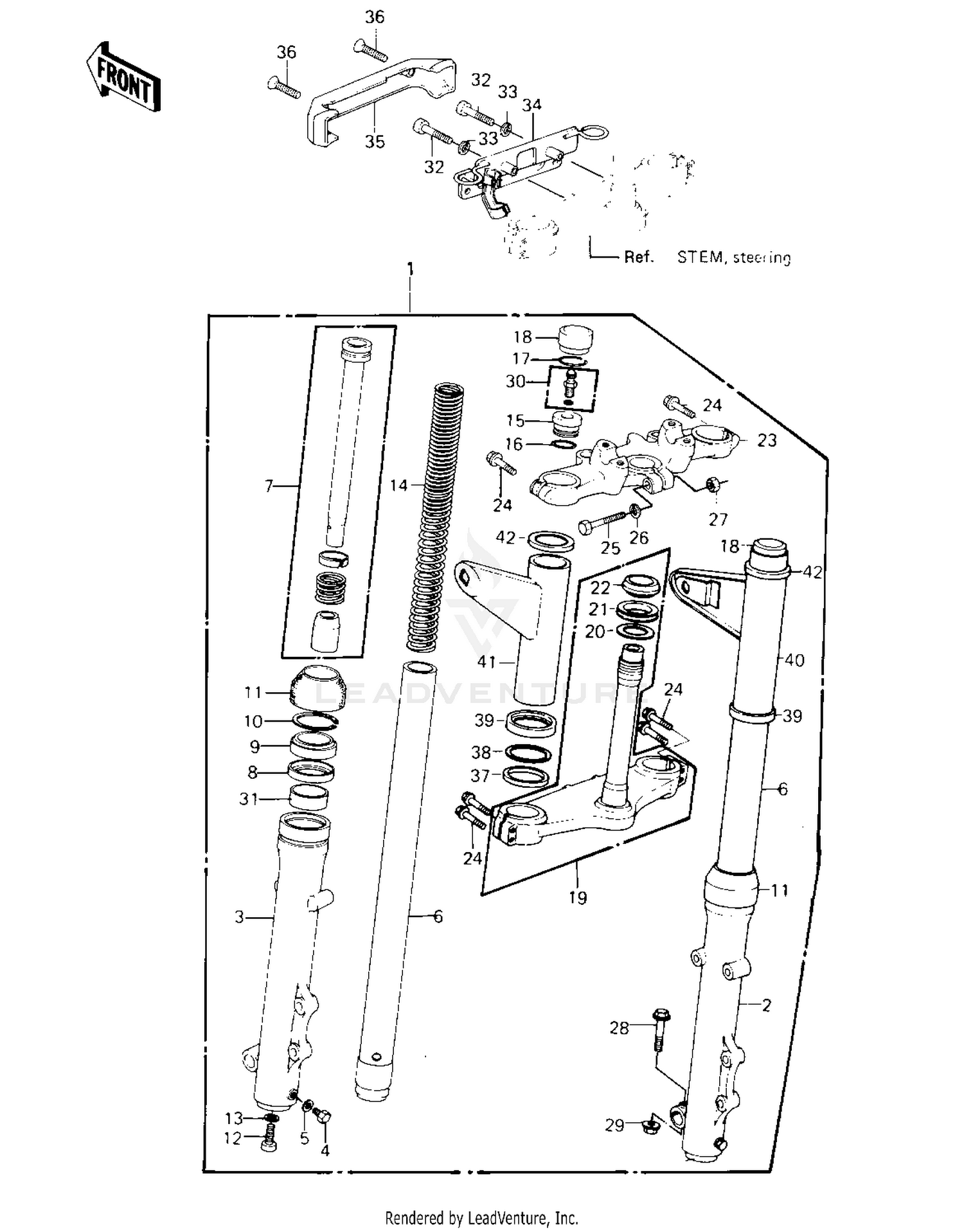

Front Fork (kz550-a2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK-FRONT
44001-1171
|
$880.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE,RH,FORK OUTER
44006-1057
|
$237.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE,LH,FORK OUTER
44005-1057
|
$272.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT HEX HEAD 6X8
110B0608
|
$0.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET,DRAIN PLUG
44045-047
Superseded by 44045-052
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE-FORK INNER
44013-1044
|
$364.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
CYLINDER-FORK
44022-1051
|
$150.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER,FORK
92026-1038
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL-OIL,FORK
92049-1063
Superseded by 92049-1226
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING-SNAP,FORK
92033-1055
Superseded by 92033-1193
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL,DUST
92093-1047
|
$45.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,FORK CYLINDER
44041-078
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET,FORK CYLINDER BOLT
44045-051
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING,FORK INNER
44026-1077
|
$65.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAT,FORK SPRING
44029-1019
|
$11.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
0 RING
92055-1034
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING-SNAP
92033-1023
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP,FORK TOP
11012-1136
Superseded by 11012-1564
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
STEM,STEERING
44037-1013
|
$839.54 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER,30.5X50X0.6
92022-231
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL-OIL,STEERING STEM
92056-003
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
RACE,STEERING STEM BEARING
92047-012
Superseded by 92048-0033
|
$14.08 | ||
|
Available to order. Add to View Price |
|||
|
#23
HEAD,STEERING STEM
44039-1011
|
$371.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,8X40
92001-1149
|
$8.12 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,HEX HEAD,8X55
92001-1064
|
$9.43 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT,HEX HEAD,8X45
92001-1136
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT,8MM
92015-1055
Superseded by 92015-1398
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#30
VALVE ASSY,AIR
16126-1025
|
$37.42 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSHING-FRONT FORK
44065-1011
Superseded by 44065-1068
|
$23.48 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#34
BRACKET,FORK COVER
11034-1879
|
$14.80 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER,FORK
44033-1053
|
$47.85 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW-CSK-RD-CROS
222C0518
Superseded by 222AB0518
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#37
DAMPER RUBBER,FORK
92075-1137
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER,FORK COVER
92022-1111
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#39
GUIDE,FORK COVER,LOW
13169-1134
|
$11.89 | ||
|
Available to order. Add to View Price |
|||
|
#40
COVER-FORK,RH,BLACK
44033-1059
|
$213.83 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER-FORK,LH,BLACK
44033-1058
|
$235.13 | ||
|
Available to order. Add to View Price |
|||
|
#42
GUIDE,FORK COVER,UPPE
13169-1135
|
$8.72 | ||
|
Available to order. Add to View Price |
|||
