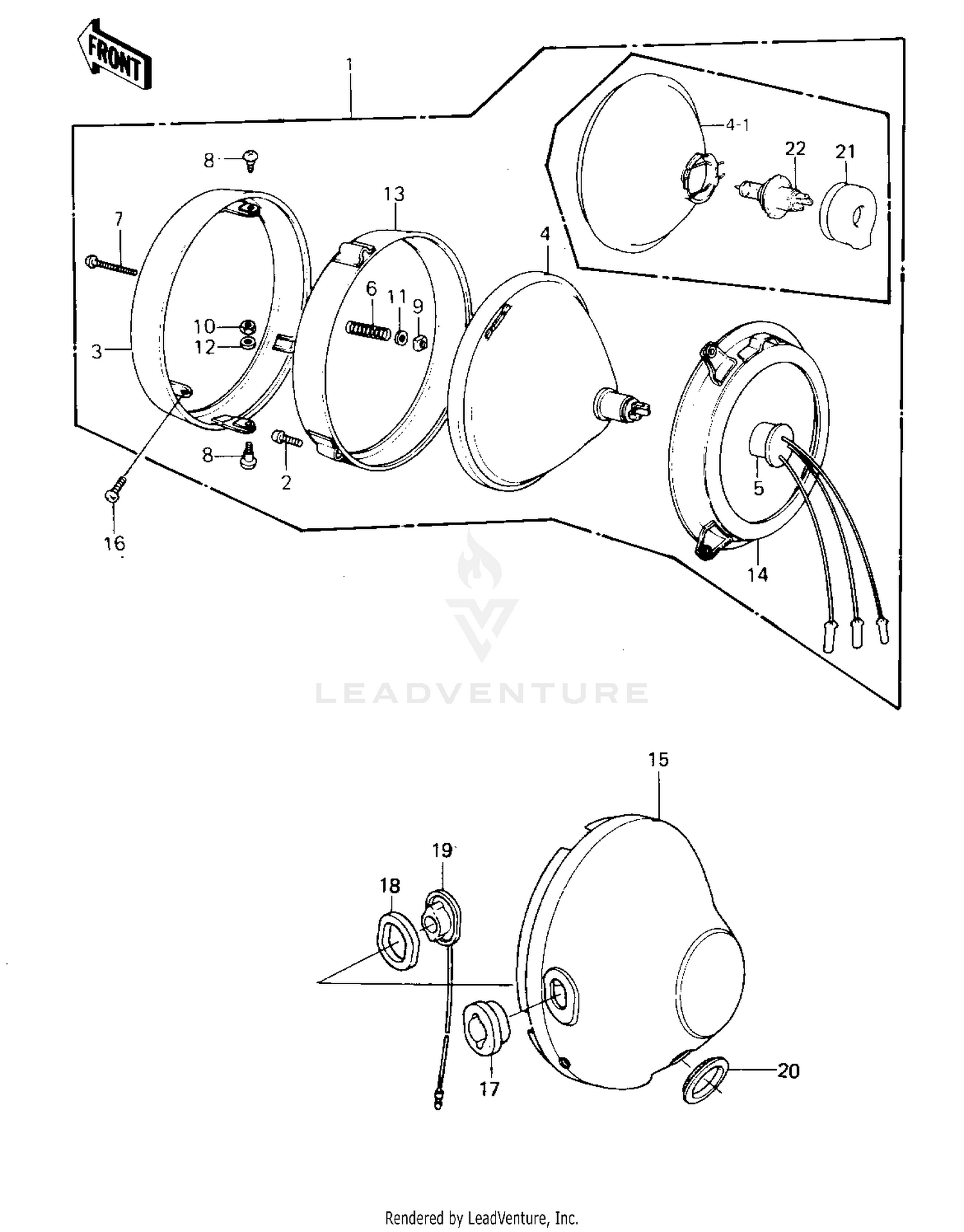

Headlight ('80-'81 A1/a2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP UNIT,HEAD
23003-017
|
$383.87 | ||
|
Unavailable |
|||
|
#1
LAMP-HEAD
23004-1040
|
$607.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW PAN HEAD 3X12
220B0312A
Superseded by 220B0312
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM,HEAD LAMP
23006-038
|
$114.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEALD BEAM UNIT
23007-041
|
$144.12 | ||
|
Available to order. Add to View Price |
|||
|
#4.1
LENS UNIT,HEAD LAMP
23007-1009
|
$153.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET ASSY,HEAD LAMP
23008-037
|
$20.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING FOCUS ADJUST
23014-005
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW FORCUS ADJUST
23019-021
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW-PAN HEAD,5X12
23019-023
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT,HEAD LAMP RIM FIT
23020-023
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
23021-004
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-PLAIN,5MM
23021-012
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING,HEAD LAMP MOUNT
23072-001
|
$42.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING,HEAD LAMP MOUNT
23074-001
|
$62.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY-COMP-HEAD LAMP
23005-1015-21
|
$221.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY-COMP-HEAD LAMP
23005-1015-21
|
$221.33 | ||
|
Unavailable |
|||
|
#16
SCREW,5X14
23019-022
Superseded by 92172-0145
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER RUBBER
23066-015
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER RUBBER
23066-016
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
23076-005
|
$47.21 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
92071-1008
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
92071-1008
|
$9.06 | ||
|
Unavailable |
|||
|
#21
DUST COVER
49016-1016
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
|
#22
BULB,12V 60/55W,H4
92069-1002
Superseded by 92069-0050
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
