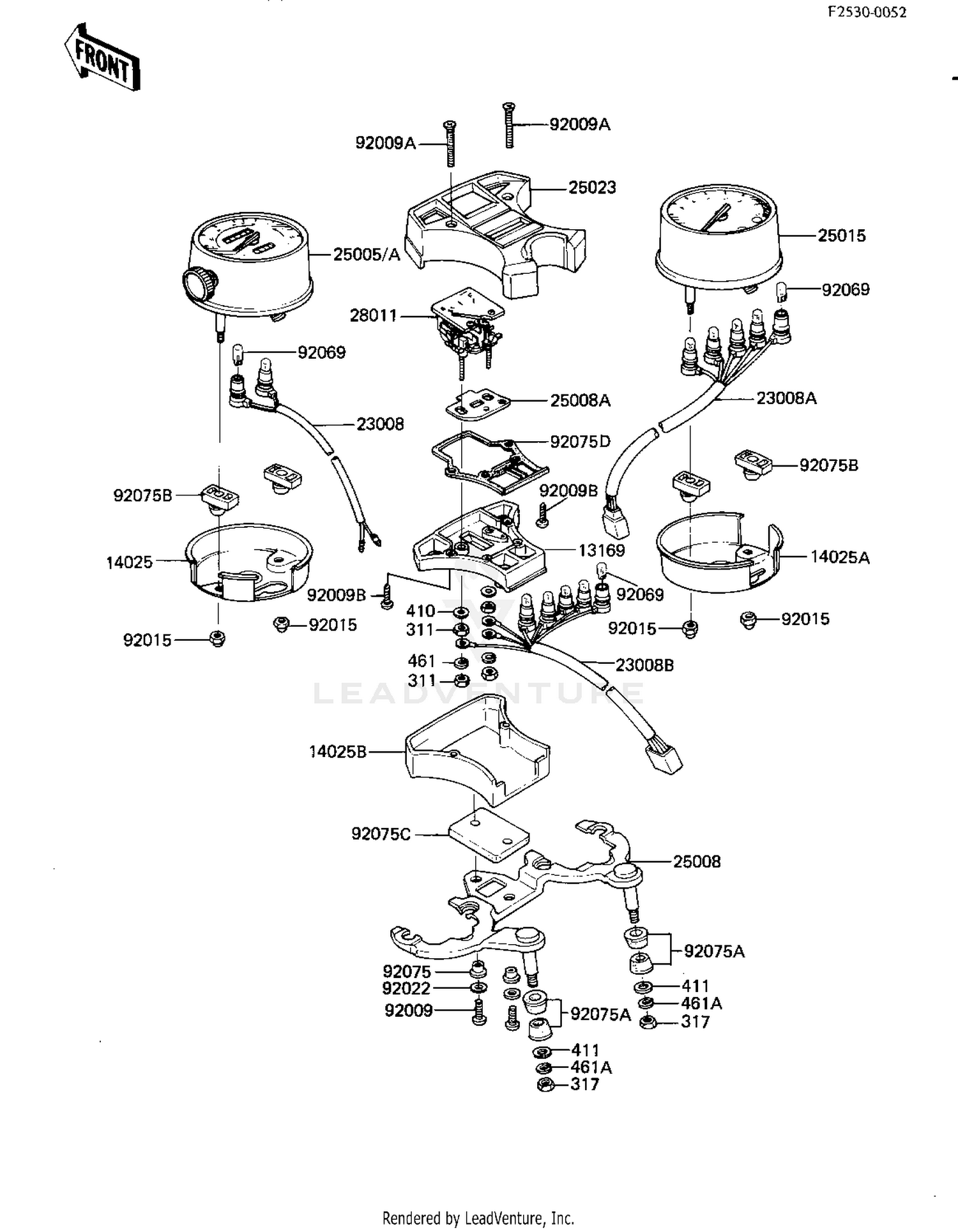

Meters Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13169
PLATE,SOCKET
13169-1426
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,SPEEDOMETER
14025-1068
|
$62.48 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,TACHOMETER
14025-1069
|
$62.48 | ||
|
Available to order. Add to View Price |
|||
|
#14025B
COVER,PILOT BOX,LOWER
14025-1368
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,SPEEDOMET
23008-1100
|
$25.64 | ||
|
Available to order. Add to View Price |
|||
|
#23008A
SOCKET-ASSY,TACHOMETE
23008-1101
|
$55.62 | ||
|
Available to order. Add to View Price |
|||
|
#23008B
SOCKET-ASSY,PILOT BOX
23008-1102
|
$60.56 | ||
|
Available to order. Add to View Price |
|||
|
#25005
SPEEDOMETER,MPH
25005-1117
|
$454.25 | ||
|
Available to order. Add to View Price |
|||
|
#25008
BRACKET-METER
25008-1038
|
$61.36 | ||
|
Available to order. Add to View Price |
|||
|
#25008A
BRACKET-METER,FUEL
25008-1039
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER,(X1000RPM)
25015-1066
|
$389.61 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER-METER CASE
25023-1027
|
$54.82 | ||
|
Available to order. Add to View Price |
|||
|
#28011
METER,FUEL
28011-1024
|
$97.04 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X10
92009-1040
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,COUNTERSNK,4X40
92009-1092
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,TAPPING,3.5X20
92009-1121
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT-CAP,5MM
322C0500
Superseded by 322AB0500
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X16X1.2
25009-004
Superseded by 92200-2276
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER RUBBER,MET FIT
25019-023
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER RUBBER
92075-080
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
SHOCK DAMPER,METER
92075-1101
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER,PILOT BOX,LOW
92075-1332
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#92075D
DAMPER,PILOT BOX
92075-1333
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,4MM
311B0400
Superseded by 311AA0400
|
$0.52 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,4MM
410B0400
Superseded by 410AA0400
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
