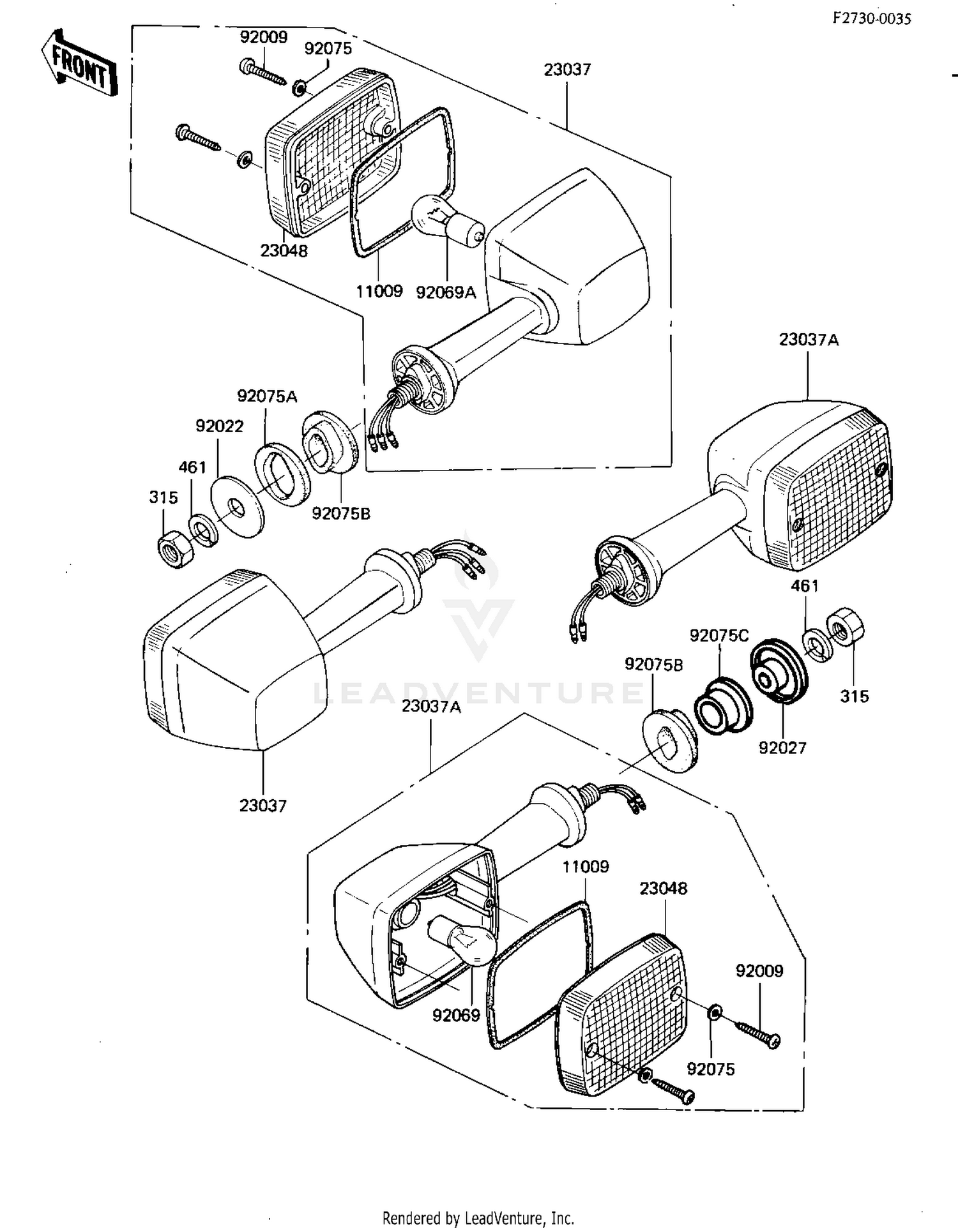

Turn Signals Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,SIGNAL LAMP
11009-1150
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#23037
LAMP-ASSY-SIGNAL,FR
23037-1131
|
$96.51 | ||
|
Available to order. Add to View Price |
|||
|
#23037A
LAMP-ASSY-SIGNAL,RR
23037-1113
|
$153.89 | ||
|
Available to order. Add to View Price |
|||
|
#23048
LENS-SIGNAL LAMP
23048-1019
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X25
92009-1069
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.5X37X1.6
92022-1246
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-147
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 32CP(23W)
92069-055
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 32/3CP(23/8W)
92069-060
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#92075
WASHER,PLAIN,4MM
23058-002
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,SIGNAL LAMP BR
92075-1278
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,SIGNAL LAMP BR
92075-1279
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER RUBBER,SIG LM
92075-158
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#315
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
