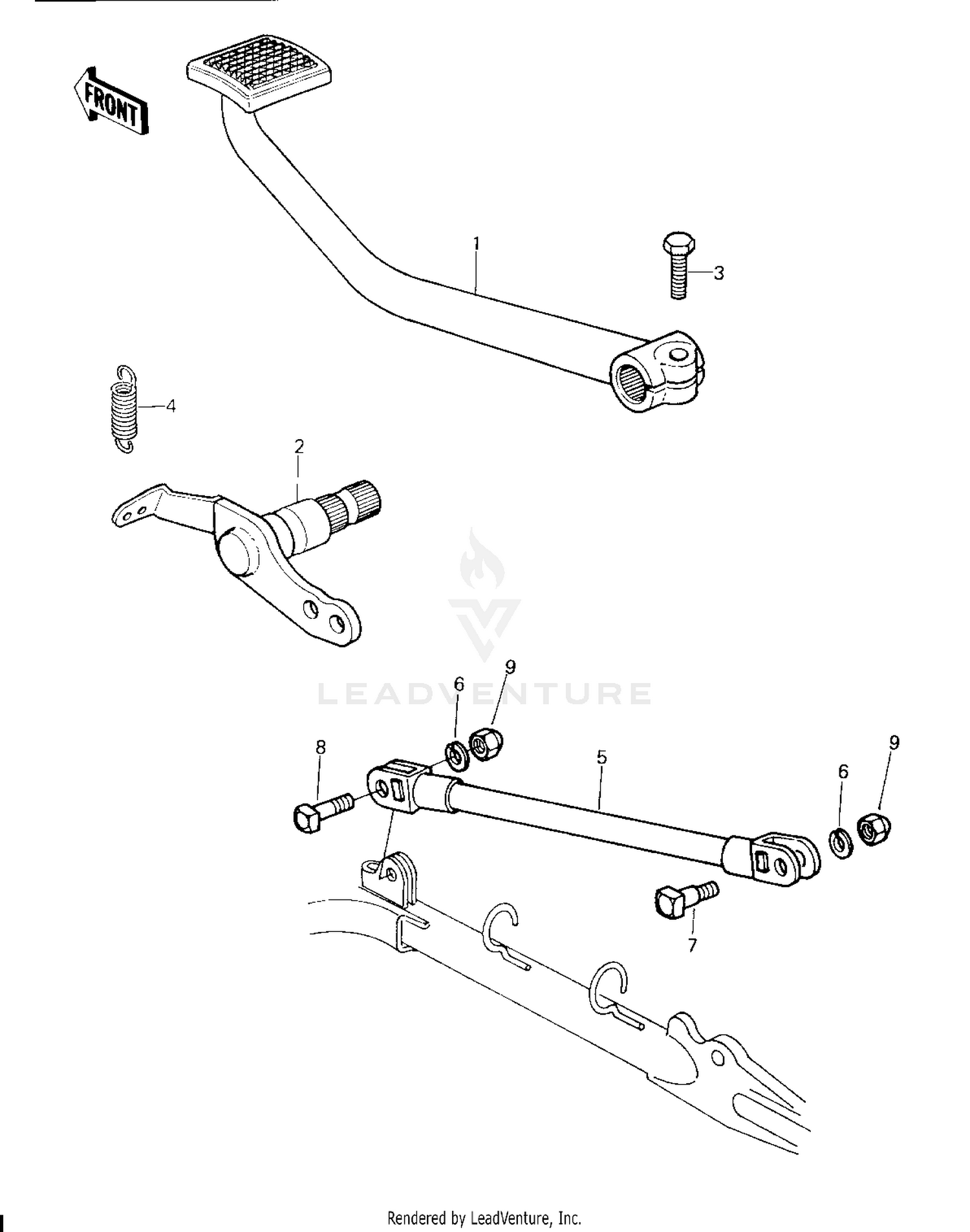

Brake Pedal/torque Link ('80 H1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL,BRAKE
43001-1045
|
$99.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT,BRAKE PEDAL
43004-1016
|
$170.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT-FLANGED,8X25
130G0825
Superseded by 130BA0825
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING,BRAKE PEDAL RETURN
92081-1147
Superseded by 92145-0100
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
TORQUE ROD,REAR BRAKE
43007-1015
|
$47.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,10X37
92001-1307
Superseded by 92150-1901
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,TORQUE ROD FRONT
92001-1208
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
