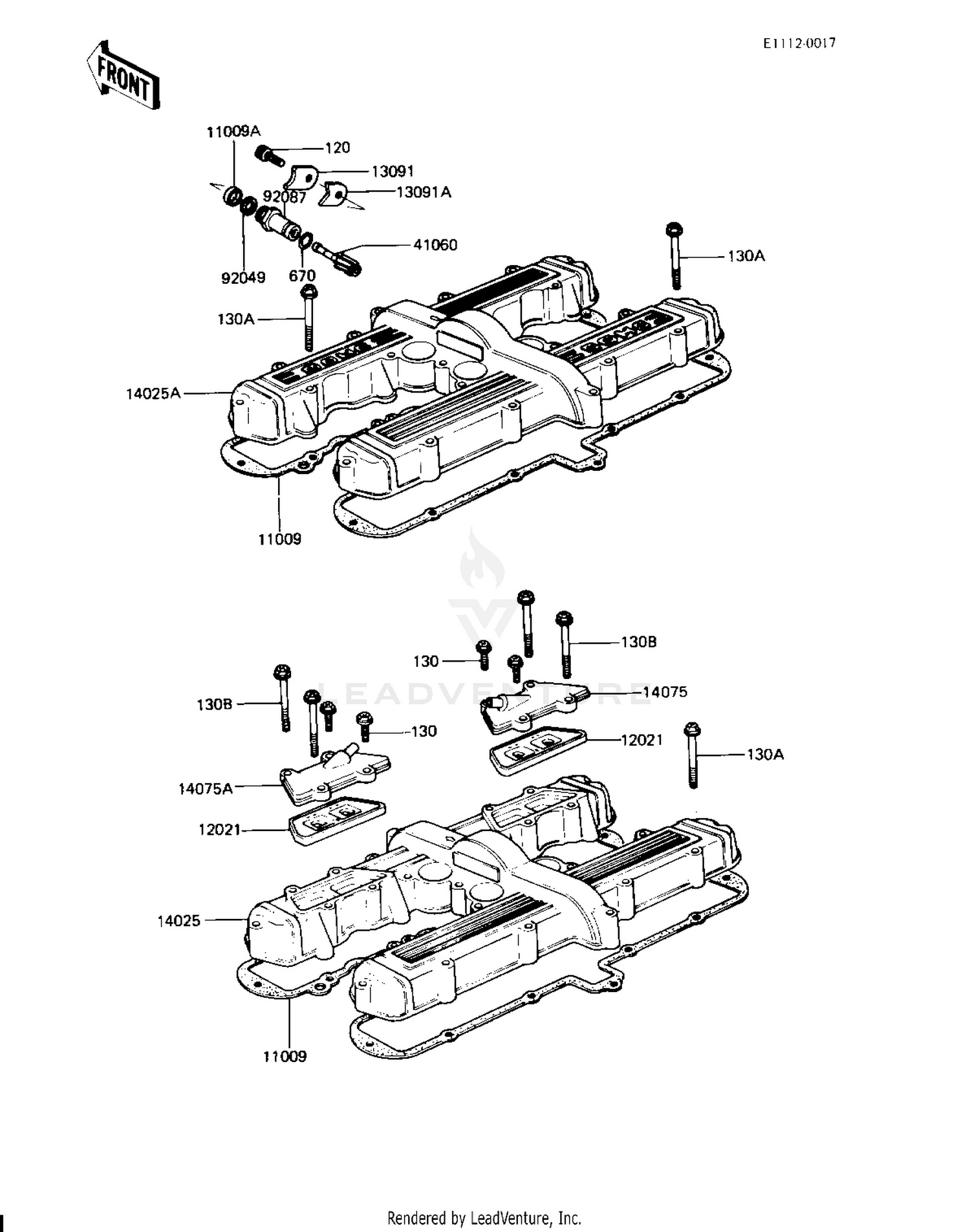

Cylinder Head Cover (kz750-h2/h3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,CYLINDER-HEAD
11009-1237
Superseded by 11060-1537
|
$78.49 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,TACHOMETER GER
92065-103
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE ASSY REED
12021-1003
|
$72.83 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,TACHOMETER2.3T
13091-1008
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#13091A
HOLDER,TACHOMETR,3.2T
13091-1009
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,CYLINDER HEAD,S
14025-1329
|
$172.85 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER CYLINDER HEAD (Canada)
14025-1330
|
|||
|
Unavailable |
|||
|
#14075
CAP-ASSY,REED VALVE,R
14075-5016
|
$63.68 | ||
|
Available to order. Add to View Price |
|||
|
#14075A
CAP-ASSY,REED VALVE,L
14075-5017
|
$58.85 | ||
|
Available to order. Add to View Price |
|||
|
#41060
GEAR,TACHOMETER,10T
13223-011
|
$91.19 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL
92050-075
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#92087
GUIDE,TACHOMETER GEAR
92087-010
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X14
120P0614
Superseded by 120CA0614
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X20
130G0620
Superseded by 130CA0620
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED
130G0645
Superseded by 130BA0645
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT,6X65
130G0665
Superseded by 92002-1140
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,10MM
670D1510
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
