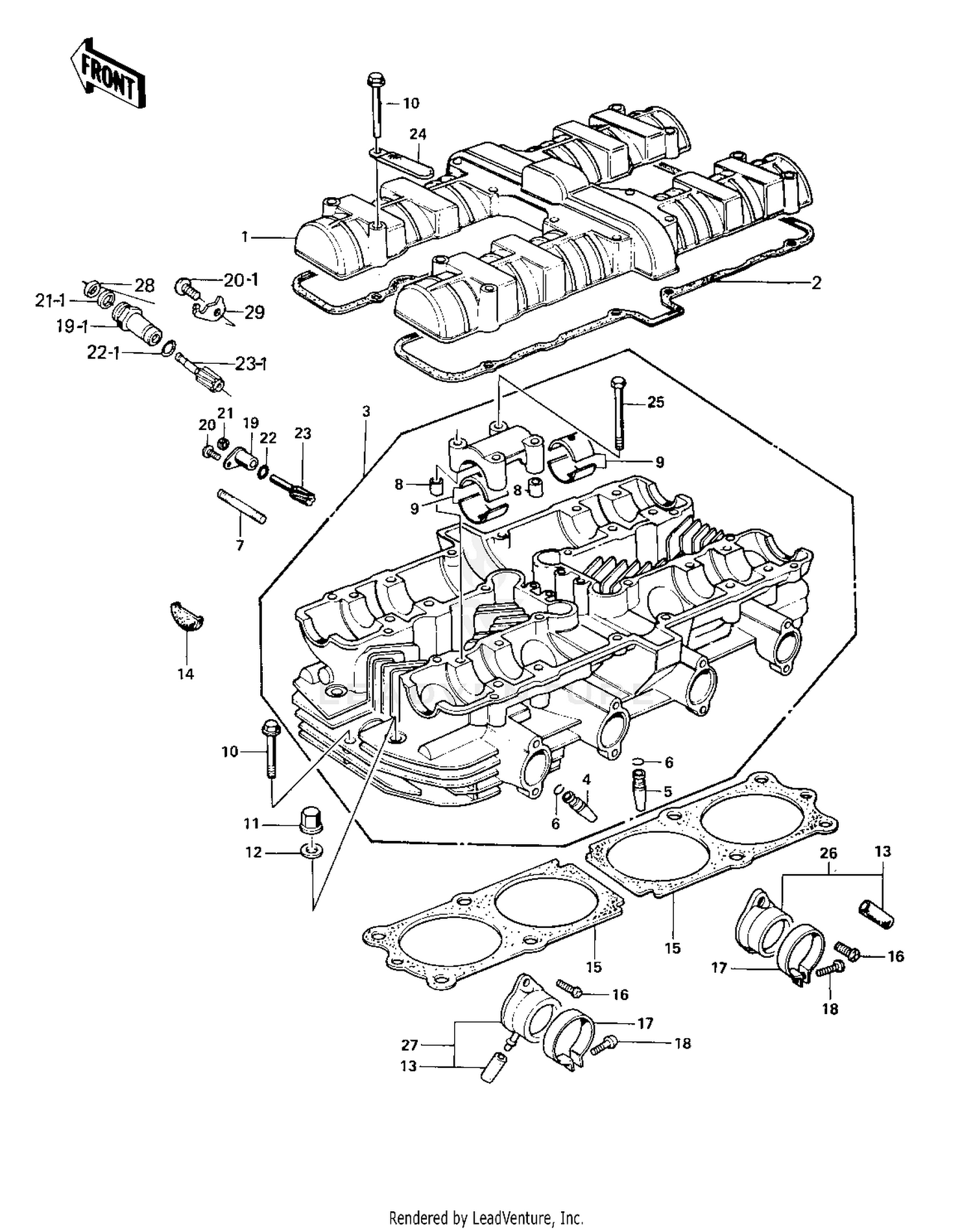

Cylinder Head/cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,CYLINDER HEAD
11022-012-2H
|
$292.32 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,CYL HEAD COVER
11023-006
Superseded by 11060-1605
|
$144.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
CYLINDER HEAD,BARREL
11002-016-2H
|
$1,181.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE,INLET VALVE
12013-001
|
$76.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, EXHAUST VALVE
12013-002
|
$87.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING-SNAP,VALVE GUIDE
92036-023
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
STUD,6X46
92004-049
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSHING,CAMSHAFT
13034-030
|
$21.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,HEX HEAD,6X45
92003-092
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT,CYLINDER HEAD
92015-076
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,PLAIN,10MM
92022-215
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG,12X25
92068-006
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG,CAMSHAFT,14X7
92066-017
Superseded by 92066-0946
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, HEAD,CYLINDER
11004-066
Superseded by 11004-1296
|
$162.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-PAN-CROS,6X18
220B0618
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP,HOLDER
92037-077
|
$11.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW-PAN-CROS
220B0520
Superseded by 220AA0520
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE,TACHOMETER GEAR
92087-5001
|
$17.95 | ||
|
Available to order. Add to View Price |
|||
|
#19-1
GUIDE,TACHOMETER GEAR
92087-010
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#20-1
SCREW-PAN-CROS,6X10
220B0610
Superseded by 220AA0610
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
92050-075
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#21-1
OIL SEAL
92050-075
|
$10.99 | ||
|
Unavailable |
|||
|
#22
O RING,9.8X1.9
670B1510
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#22-1
RING-O,10MM
92055-1149
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR,TACHOMETER,10T
13223-011
|
$91.19 | ||
|
Available to order. Add to View Price |
|||
|
#23-1
GEAR,TACHOMETER,10T
13223-011
|
$91.19 | ||
|
Unavailable |
|||
|
#24
CLAMP,WIRING HARNESS
21126-008
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,HEX HEAD,6X45
92003-092
|
$7.32 | ||
|
Unavailable |
|||
|
#26
HOLDER-R.H CARBRETOR
16065-028
|
$96.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER,CARBURETOR,L.H
16065-029
|
$96.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET,TACHOMETER GER
92065-103
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE,STOPPER
13169-015
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
