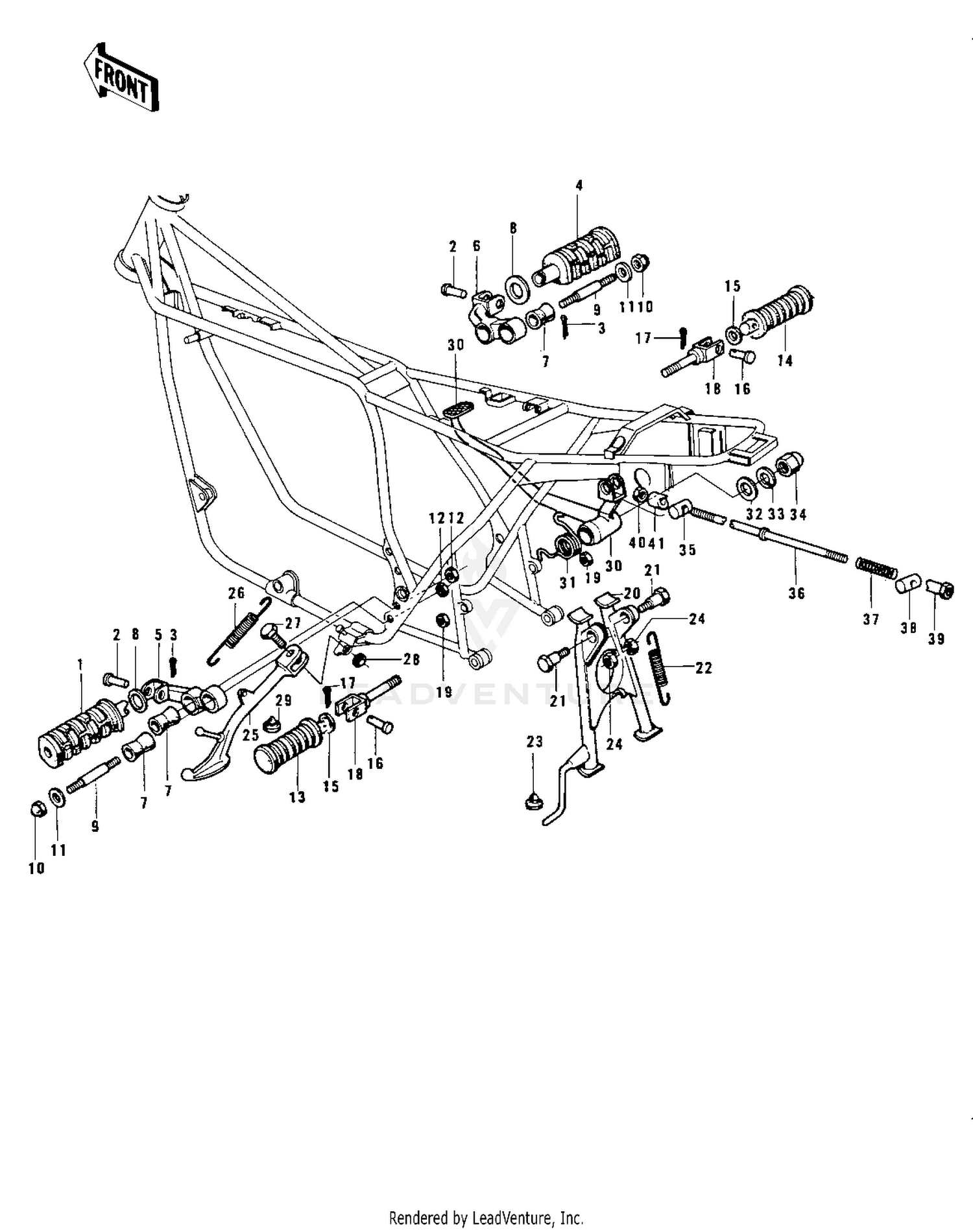

Footrests/stands/brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR-FOOTREST,L.H
34028-011
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN,8X31
92043-080
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN COTTER 2.5X16
550D2516
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAR-FOOTREST,R.H
34028-012
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET,FOOTREST,L.H
34003-036
|
$116.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET,FOOTREST,R.H
34003-037
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER RUBBER,FOOTRST
92075-140
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,25X36X2.3
92022-250
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
STUD,FOOTREST BAR FIT
92004-048
|
$13.86 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT,CAP AND LOCK,8MM
92019-013
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP,FOOTRESTBAR
92102-010
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER,FOOTREST
92076-027
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER,FOOTREST
92076-027
|
$35.79 | ||
|
Unavailable |
|||
|
#15
WASHER-PLAIN (OPT)
92022-199
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN,6X28
92043-1464
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN,COTTER,2.0X12
550D2012
Superseded by 550AA2012
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET,REAR FOOTREST
33028-011
|
$35.63 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HEX-FINE
315B1200
Superseded by 315AA1200
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAND-MAIN
34011-1015
|
$234.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT MAIN STAND
34019-014
|
$30.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING,CENTER STAND
34023-012
Superseded by 92145-0104
|
$15.66 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER
92075-015
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT,MAIN STAND FITT
92016-044
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAND-SIDE
34024-060
|
$52.86 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING,STAND
34025-005
Superseded by 92145-0106
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,SIDE STAND
92003-079
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Unavailable |
|||
|
#29
DAMPER RUBBER,STD STM
92075-157
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#30
PEDAL,BRAKE
43001-044
|
$226.12 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING,BRAKE PEDAL
43005-041
|
$21.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER,8.5X20X1.6
92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT,CAP AND LOCK,8MM
92019-013
|
$14.35 | ||
|
Unavailable |
|||
|
#35
PIN,REAR BRAKE ROD
92043-095
|
$22.94 | ||
|
Available to order. Add to View Price |
|||
|
#36
ROD,REAR BRAKE
43011-017
|
$31.03 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING,BRAKE ROD
43012-001
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN-BRAKE ROD
92043-065
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT,BRAKE ROD
92015-042
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN,BRAKE ROD
92027-177
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
