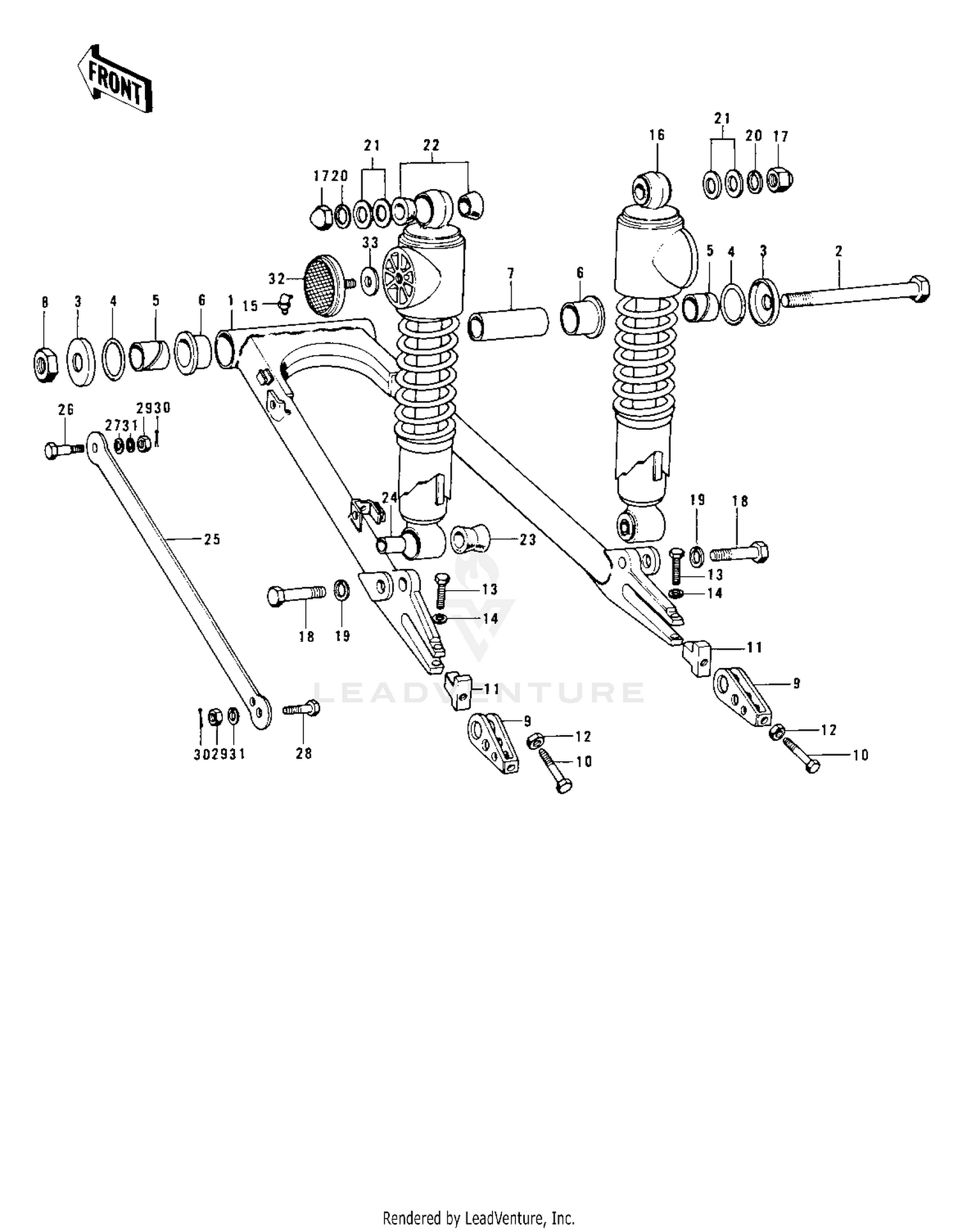

Swing Arm/shock Absorbers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM,SWING
33001-046
|
$211.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT,SWING ARM PIVOT
33032-036
|
$61.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,SWING ARM
33035-007
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
0 RING,30MM
671B2530
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
SLEEVE SWING ARM
33034-009
|
$40.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSHING-SWING ARM
33033-009
|
$95.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR,SWING ARM
33036-005
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-SELF LOCKING
92019-012
|
$24.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
ADJUSTER SET,CHAIN
33043-005
|
$71.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
ADJUSTER,CHAIN D=10MM
33040-063
|
$12.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
ADJUSTER,CHAIN
33040-066
|
$29.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,8X50
92001-1399
Superseded by 92002-1076
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-CHN ADJUST 10MM
92001-143
|
$19.03 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPPER,CHAIN ADJUST
33044-001
|
$38.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-HEX-SMALL,8MM
312B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,FLANGED,8X40
92001-1578
Superseded by 92002-1838
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
GREASE NIPPLE
92005-002
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHOCK ABSBR RR
45014-072
|
$115.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT 12MM
92020-014
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT-UPSET
113N1035
Superseded by 112N1035
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SPRING,12MM
461F1200
Superseded by 461DA1200
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUSH SHCK ABS RUBBER
45017-001
|
$11.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSHING,SHCK ABSORBER
45017-011
|
$24.08 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH SHCK ABS PVT SFT
45016-003
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
TORQUE LINK,RR BRAKE
43007-032
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT TORQUE LINK FITT
92003-103
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER-PLAIN,10MM
411B1000
Superseded by 411AA1000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT,TORQUE LINK
92003-147
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT,TORQUE LINK
92003-147
|
$7.99 | ||
|
Unavailable |
|||
|
#29
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN-SNAP
554A0800
Superseded by 554DA0800
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Unavailable |
|||
|
#32
REFLECTOR-REFLEX,REAR
28012-008
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
DAMPER RUBBER,REFLECT
92094-011
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
