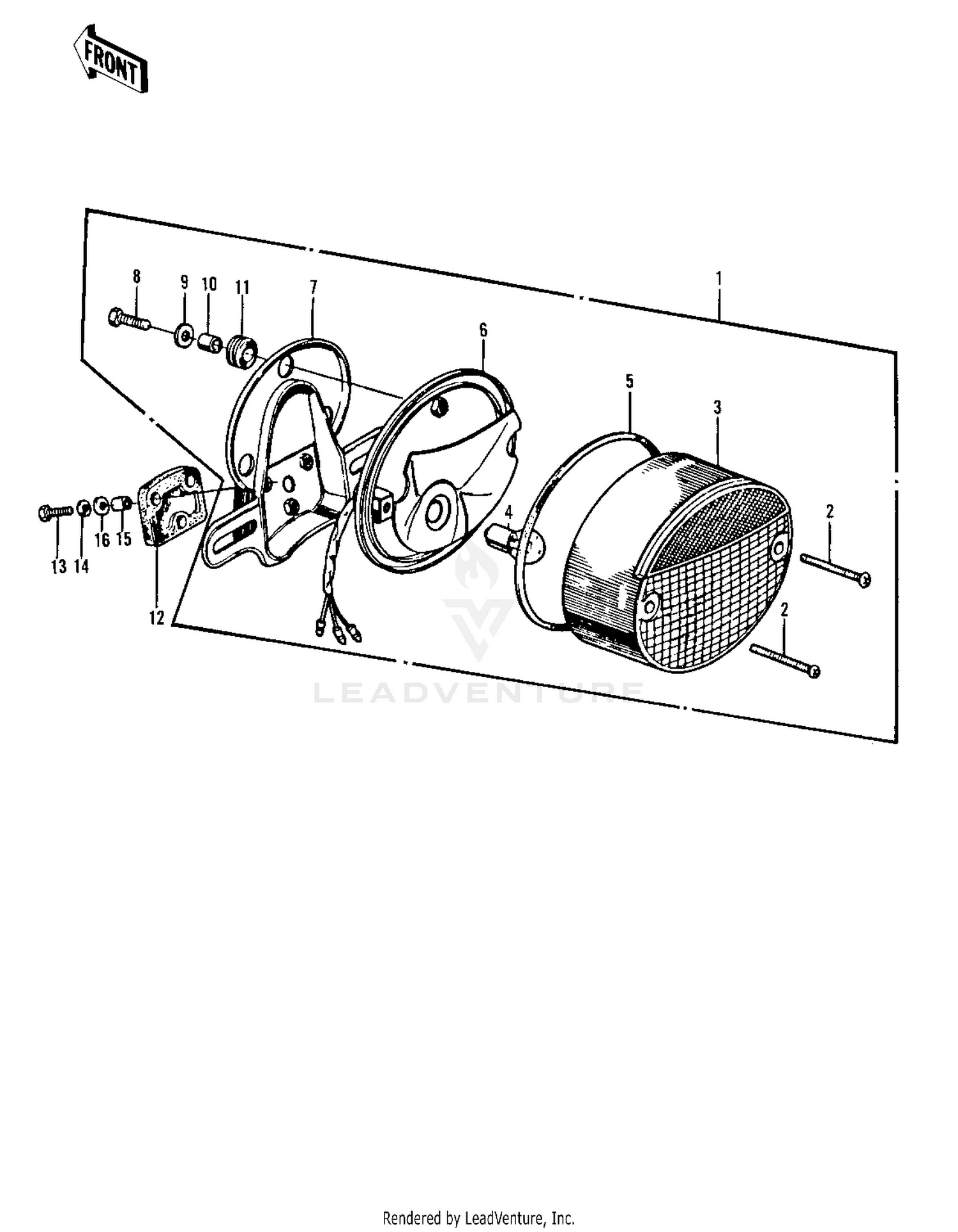

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,TAIL
23024-018
|
$280.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW-PAN HEAD,4X35
220E0435A
|
$8.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS-TAIL LAMP
23026-023
|
$126.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB,12V 27/8W
92069-059
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET-TAIL LAMP LENS
23028-018
|
$11.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE,TAIL LAMP
23027-030
|
$136.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET,TAIL LAMP
23036-017
|
$53.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR,6.8X10X8.5
92027-129
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER RUBBER
92075-076
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER RUBBER,RR FEND
35039-004
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR,6.8X10X14.5
92027-156
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER RUBBER,RR FEND
92075-121
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
