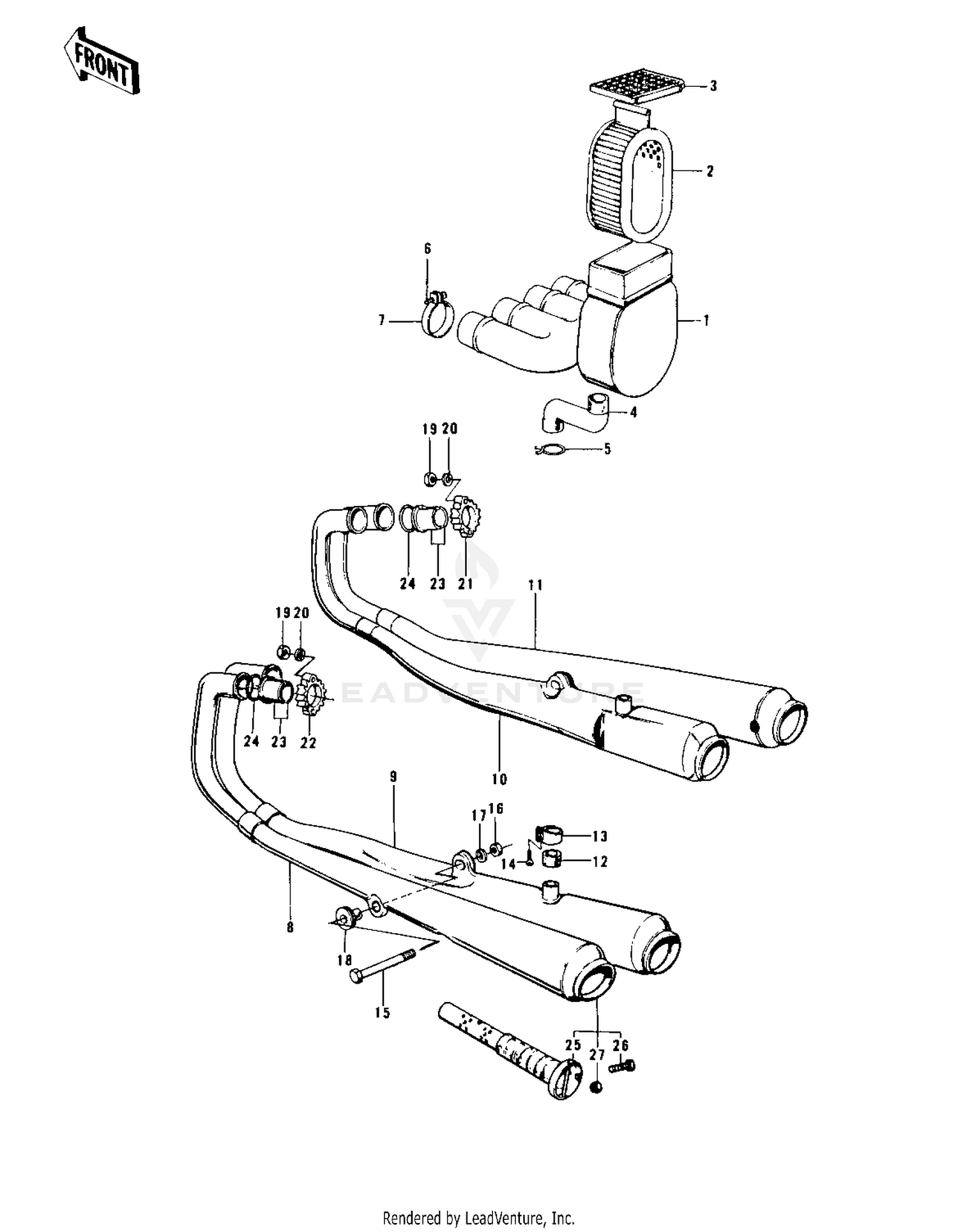

Air Cleaner/mufflers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY,AIR CLEANER
11011-022
|
$379.54 | ||
|
Unavailable |
|||
|
#2
ELEMENT,AIR,CLNR
11013-034
|
$40.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,AIR CLEANER
11012-030
|
$3.70 | ||
|
Unavailable |
|||
|
#4
PIPE,BREATHER
92059-078
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP BREATHER PIPE
92037-028
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW-PAN-CROS
220B0535
Superseded by 220AA0535
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP,AIR INLET
92123-002
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
MUFFLER ASSY,L.H UPP
18001-227
|
$892.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
MUFFLER ASSY,L.H LOW
18001-228
|
$892.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
MUFFLER ASSY,R.H LOW
18001-183
Superseded by 18001-229
|
$851.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
MUFFLER ASSY,R.H UPP
18001-184
|
$457.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE,MUFFLER CONNECT
92059-079
|
$19.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE,MUFFLER CONNECT
92059-120
|
$18.61 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP,MUFFLER CONNECT
92037-103
|
$18.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-PAN-CROS,5X16
220B0516
Superseded by 220AA0516
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,HEX HEAD,10X104
92003-180
|
$31.50 | ||
|
Unavailable |
|||
|
#15
BOLT,HEX HEAD,10X104
92003-180
|
$31.50 | ||
|
Unavailable |
|||
|
#15
BOLT,HEX HEAD,10X104
92003-180
|
$31.50 | ||
|
Unavailable |
|||
|
#16
NUT,LOCK,10MM
92015-1429
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-PLAIN-SMALL,10MM
410B1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSHING,MUFFLER FITT
92092-010
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER,EXHAUST PIPE
18069-045
|
$100.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER,EXHAUST PIPE
18069-046
|
$100.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
INSERT,EXHAUST PIPE
92027-170
|
$13.03 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET,EXHAUST PIPE HOLDER
11009-1906
Superseded by 18067-018
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAFFLE TUBE
18033-058
|
$102.38 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Unavailable |
|||
