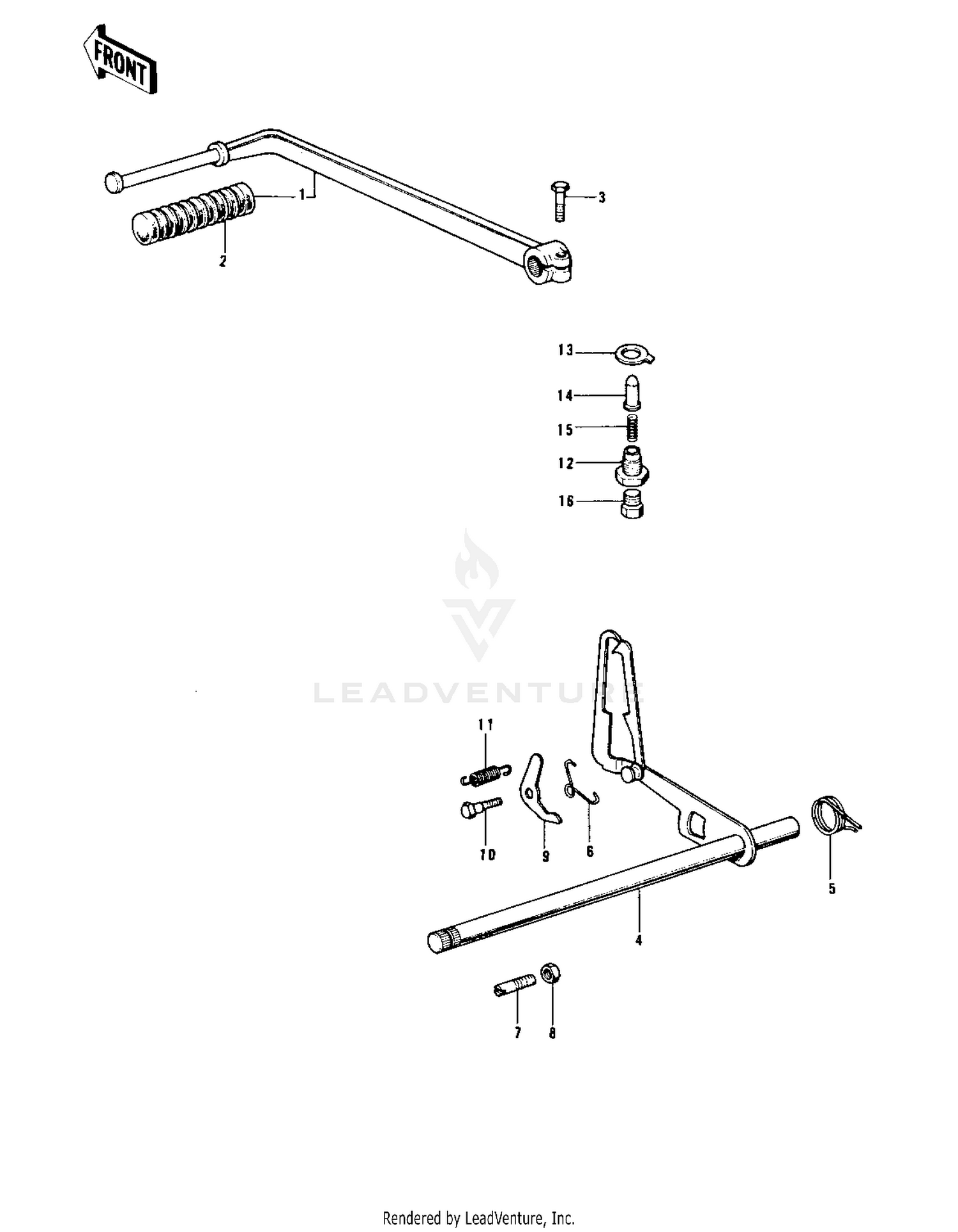

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL ASSY,GEAR CHANG
13242-006
|
$94.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER,CHANGE PEDAL
13157-004
Superseded by 92161-1532
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT-UPSET
112N0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER ASSY GEAR CHNG
13161-029
|
$140.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING,CHG PEDL RTN
92083-021
|
$20.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING,CHG PEDL RTRN
92083-028
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING,KICK PAWL
92083-018
|
$9.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN CHANGE PEDAL SPRG
92043-057
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX-SMALL,8MM
312B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER,GEAR CHNG DRUM
13168-024
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,CHANGE DRUM LEVE
92150-1450
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING CHNG DRUM LEV
92081-051
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,CHG DRUM POSITN
92001-112
|
$51.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER,LOCK
92024-047
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN
92043-085
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING
92081-106
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
92001-119
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
