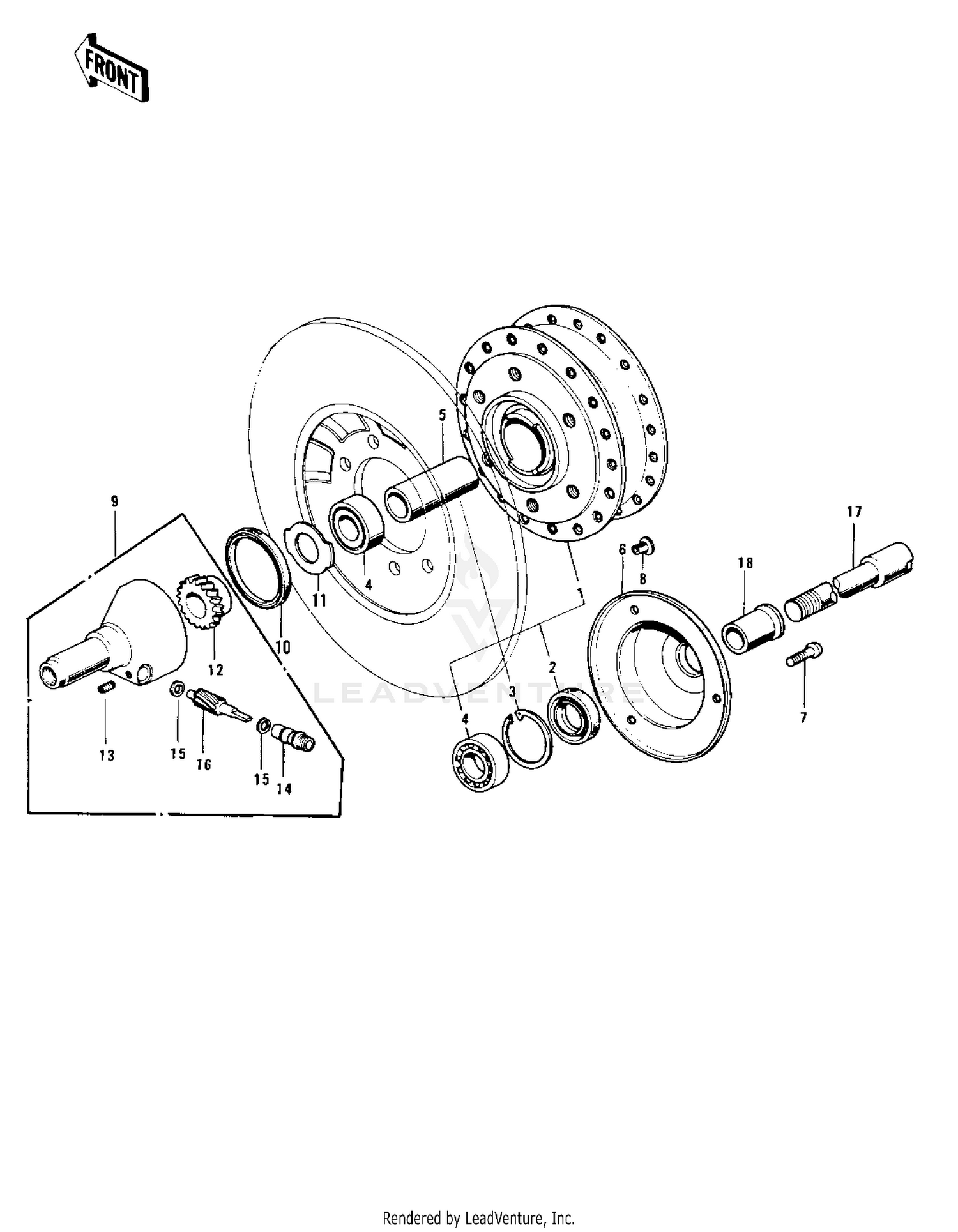

Front Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DRUM-ASSY,FR BRK,BLK
41034-021-21
|
$183.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
OIL SEAL-COUPLING
92052-003
|
$12.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING-SNAP,40MM
92033-1040
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING BALL #6203
601B6203
|
$13.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR-FRONT DRUM
41039-019
|
$16.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER-BRAKE DRUM DUST
41042-009
|
$17.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW OVL CNTSNK 5X8
222E0508A
Superseded by 222E0508
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP-FRONT DRUM HOLE
92102-006
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE ASSY-SPEED GEAR
41078-001
|
$67.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL,VC54656
92050-046
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
RECEIVER-SPEEDO GEAR
41064-007
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR-SPEEDOMETER
41059-016
|
$34.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN,SPRING
41082-001
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH,SPEEDMETER CABLE
41062-005
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,5.1X9X0.4
41063-001
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
PINION-SPEEDOMETER
41060-012
|
$24.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
AXLE-FRONT HUB
41068-036
|
$32.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR-FRONT AXLE
41069-018
|
$12.52 | ||
|
Available to order. Add to View Price |
|||
