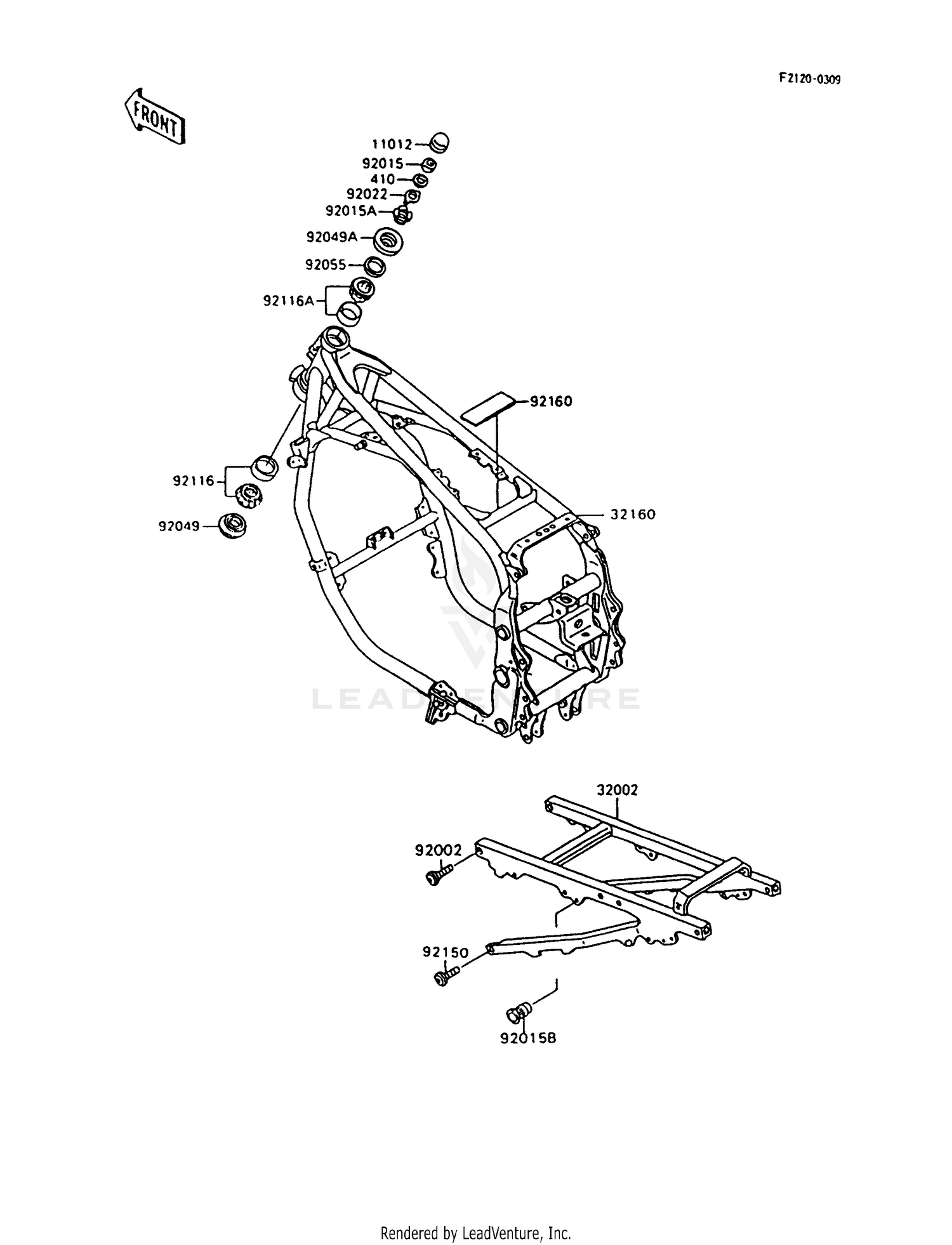

1997 Kawasaki NINJA 600R FRAME OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,STEERING STEM
11012-1442
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#32002
FRAME-COMP,RR
32002-1938
|
$891.48 | ||
|
Available to order. Add to View Price |
|||
|
#32160
FRAME-COMP,FR
32160-1313
|
$981.70 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SOCKET,8X32
92002-1927
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,18MM
92015-1404
|
$21.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,25MM,T=12
92015-1546
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,POP,6MM,L=16.5
92015-1792
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1555
Superseded by 92200-1357
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,XMHE36X52X4J
92049-1162
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,STEERING STEM
92049-1214
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,ID=24.5
92055-1459
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#92116
BEARING-ROLLER,HR320/28XJ
92116-1009
|
$34.60 | ||
|
Available to order. Add to View Price |
|||
|
#92116A
BEARING-ROLLER,HI-CAP32005JR-1
92116-1056
|
$40.89 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,10X25
92150-1747
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1075
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#410
W-PLAIN-S
410F1800
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
