1997 Kawasaki NINJA 600R Fuel Evaporative System OEM Parts

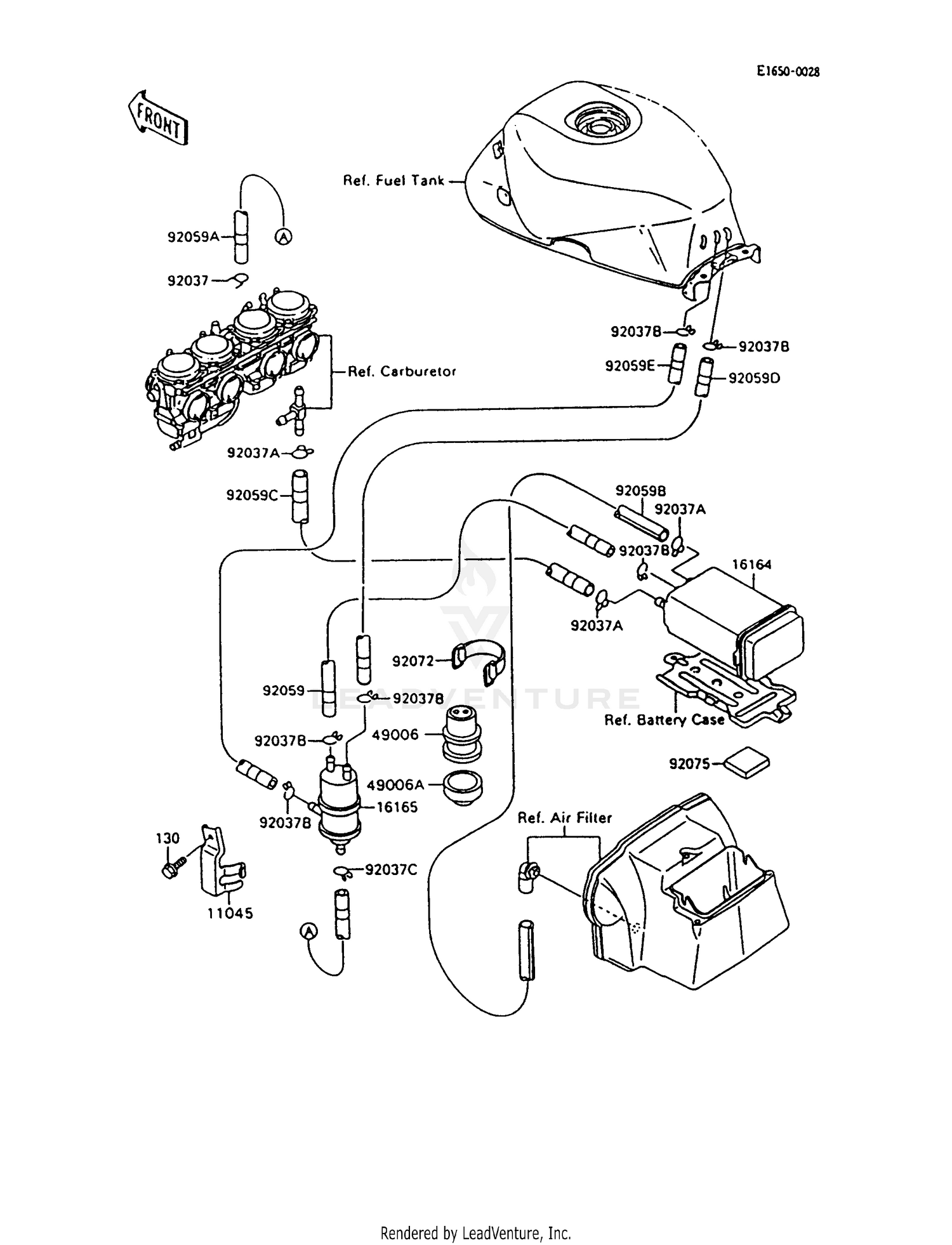

Fuel Evaporative System Diagram

Item	MSRP	Qty
#11045 BRACKET,SEPARATOR 11045-1597	$9.73
Available to order. Add to View Price
#16164 CANISTER 16164-1052	$125.78
Available to order. Add to View Price
#16165 SEPARATOR 16165-1001	$86.53
Available to order. Add to View Price
#49006 BOOT 49006-1263	$15.42
Available to order. Add to View Price
#49006A BOOT 49006-1264	$13.07
Available to order. Add to View Price
#92037 CLAMP-PIPE 92037-072	$6.97
Available to order. Add to View Price
#92037A CLAMP,HOSE 92037-1104	$1.42
Available to order. Add to View Price
#92037B CLAMP,TUBE 92037-147	$7.09
Available to order. Add to View Price
#92037C CLAMP 92037-1712	$4.84
Available to order. Add to View Price
#92059 TUBE,5X10X1100,RED 92059-1604 Superseded by 92059-1870	$22.19
Available to order. Add to View Price
#92059A TUBE,4X9X935,WHITE 92059-1690 Superseded by 92059-1916	$18.41
Available to order. Add to View Price
#92059B TUBE,7X12X830,GREEN 92059-1806	$24.03
Available to order. Add to View Price
#92059C TUBE,7X12X630,YELLOW 92059-1855	$17.36
Available to order. Add to View Price
#92059D TUBE,5X10X1100,RED 92059-1856 Superseded by 92059-1870	$22.19
Unavailable
#92059E TUBE,5X10X1100,RED 92059-1857 Superseded by 92059-1870	$22.19
Unavailable
#92072 BAND,L=50 92072-066 Superseded by 92072-1419	$15.51
Available to order. Add to View Price
#92075 DAMPER,ENGINE GUARD 92075-1215	$1.56
Available to order. Add to View Price
#130 BOLT-FLANGED,6X12 130C0612 Superseded by 130AB0612	$0.65
Available to order. Add to View Price
