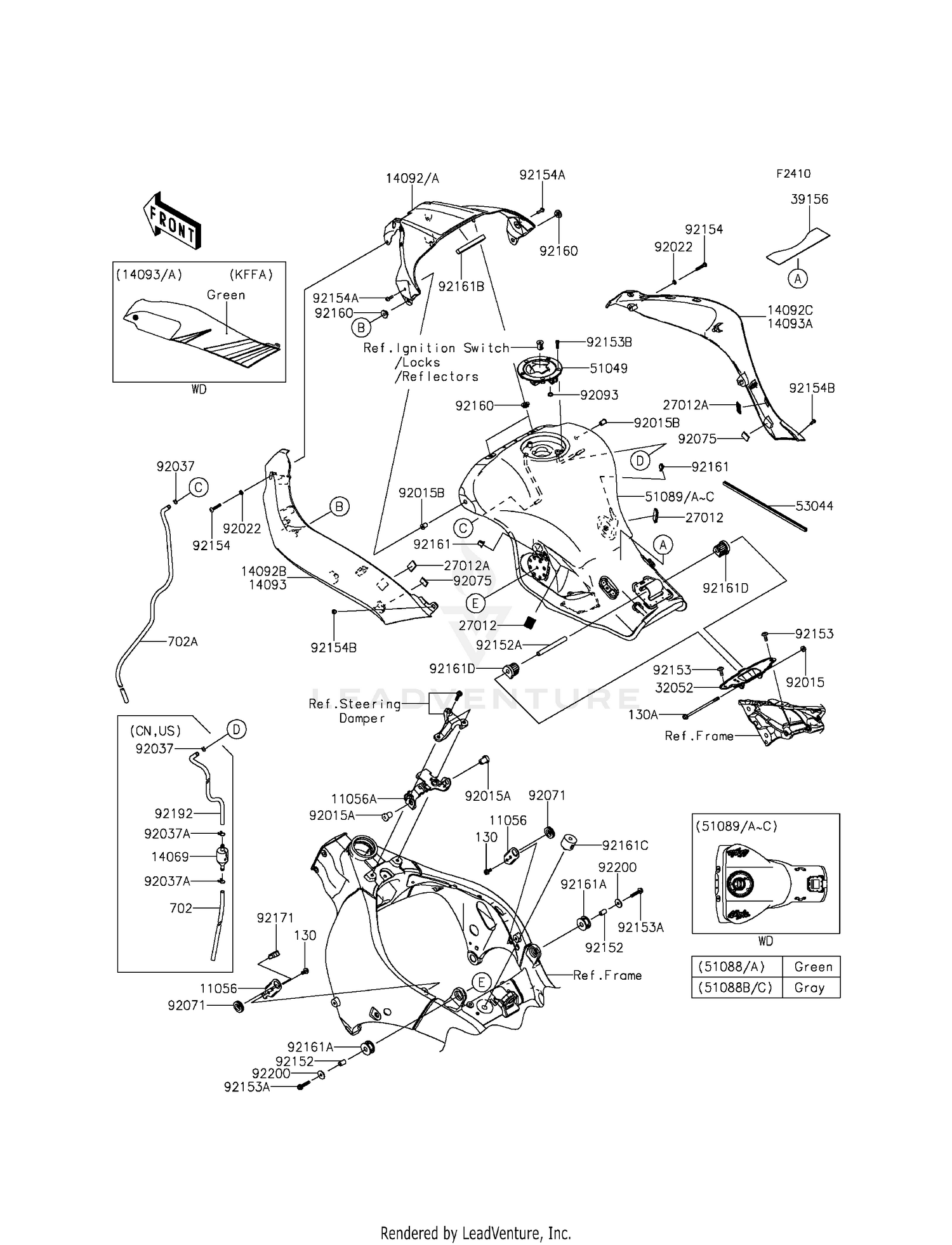

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET,TANK COVER,SIDE
11056-0242
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#11056A
BRACKET,TANK COVER,FR
11056-1655
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#14069
BREATHER,FUEL TANK
14069-1004
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,TANK,CNT,M.M.C.GRAY
14092-0786-51B
|
$167.25 | ||
|
Available to order. Add to View Price |
|||
|
#14092B
COVER,TANK,LH,F.EBONY
14092-0787-45L
Superseded by 14093-0683-45L
|
$206.08 | ||
|
Available to order. Add to View Price |
|||
|
#14092C
COVER,TANK,RH,F.EBONY
14092-0788-45L
Superseded by 14093-0681-45L
|
$205.80 | ||
|
Available to order. Add to View Price |
|||
|
#27012
HOOK
27012-0170
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#27012A
HOOK
27012-0171
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
|
#32052
BRACKET-TANK
32052-0154
|
$35.06 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,40X180X1.0
39156-0745
|
$18.45 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-0030
Superseded by 51049-0741
|
$123.02 | ||
|
Available to order. Add to View Price |
|||
|
#51089B
TANK-COMP-FUEL,M.F.D.GRAY
51089-5066-51B
|
$1,225.22 | ||
|
Available to order. Add to View Price |
|||
|
#51089C
TANK-COMP-FUEL,M.M.C.GRAY
51089-5067-51B
|
$1,225.22 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM
53044-1296
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,RUBBER,6MM
92015-1692
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Unavailable |
|||
|
#92037A
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-1043
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1982
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6.8X10X18.5
92152-0883
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,6.8X10X60
92152-1182
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X16
92153-1526
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,6X28
92153-1580
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,5X16
92153-1616
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,6X30
92154-0206
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,SOCKET,5X16
92154-0209
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,SOCKET,5X10
92154-0211
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1613
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0365
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,10X30X16
92161-0869
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER,10X90X10
92161-0963
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#92161C
DAMPER
92161-1116
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#92161D
DAMPER,FUEL TANK,RR
92161-1330
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X12
130AA0612
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X75
130BA0675
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,6X200
702A06200
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#702A
TUBE-RUBBER,6X9X750
702A06750
|
$21.19 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0782
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,6X9X(770)
92192-0975
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X22X1.6
92200-1087
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
