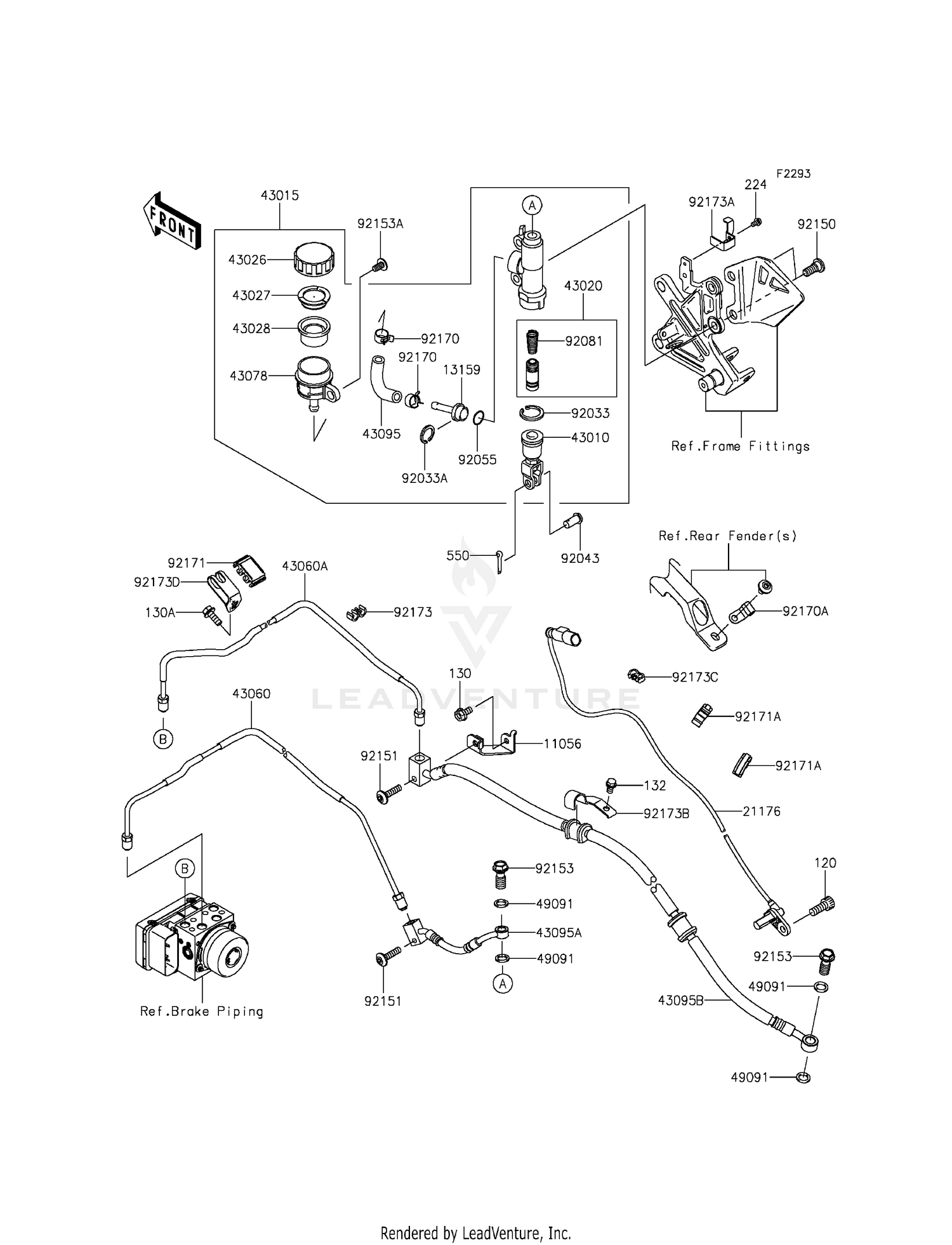

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,8X20
120CB0820
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X12
130BA0612
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X16
130BA0616
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X10
132BB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#224
SCREW-PAN-WP-CROS
224AA0408
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#11056
BRACKET
11056-1065
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR
13159-0009
|
$8.77 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,RR WHEEL
21176-0708
|
$112.77 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-0009
|
$28.20 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-0161
|
$222.92 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1057
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-0009
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1053
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1065
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#43060
PIPE-BRAKE,RR M/CYLINDER-HU
43060-0095
|
$56.95 | ||
|
Available to order. Add to View Price |
|||
|
#43060A
PIPE-BRAKE,ABS HU-RR
43060-0096
|
$65.55 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-0071
|
$29.24 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,RESERVOIR
43095-0585
|
$33.06 | ||
|
Available to order. Add to View Price |
|||
|
#43095A
HOSE-BRAKE,RR M/CYLIN
43095-0595
|
$34.53 | ||
|
Available to order. Add to View Price |
|||
|
#43095B
HOSE-BRAKE,SWABKT-CAL
43095-0645
|
$57.81 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20.9X24.6X1.2
92033-0079
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,20.5MM
92033-1186
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X17
92043-0104
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,MASTER CYLINDER
92081-1737
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X25
92150-1837
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X25
92151-1611
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,OIL,L=23
92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,6X12
92153-1617
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,HOSE
92170-1091
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1804
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-1731
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP,BRAKE HOSE
92171-1819
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP
92173-0181
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92173A
CLAMP
92173-0240
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#92173B
CLAMP
92173-0259
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#92173C
CLAMP,PIPE
92173-0724
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#92173D
CLAMP
92173-0808
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
